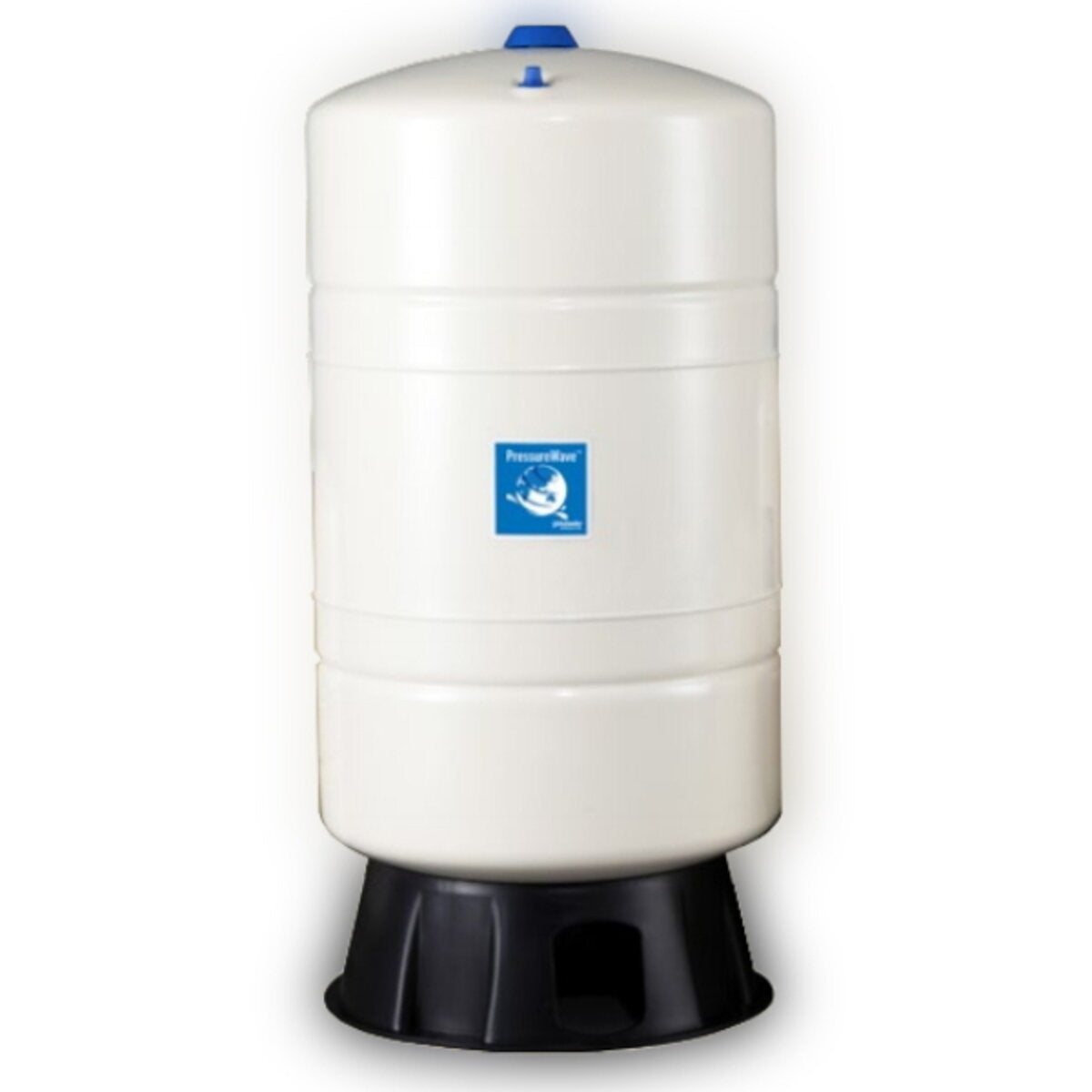

EXPANSION TANK 100 LITERS ATT. 1” WITH FIXED MEMBRANE
The PressureWave™ PWB-100LV tank are ideal for a wide range of applications including booster systems, artesian wells, irrigation systems, constant pressure systems, variable frequency electronic systems, thermal expansion, anti-water hammer .
The PressureWave™ PWB-100LV Series is manufactured with an original polypropylene liner combined with a high quality FDA (Food and Drug Administration) approved butyl diaphragm with single diaphragm design; this is pressed to the walls of the tank by a steel closing ring. The hermetically sealed dust cap to protect the pre-charge valve prevents air leakage.
The water enters the tank through a patented hydraulic connection made in stainless steel.
All internal parts, including the air valve, are rounded to prevent the diaphragm from puncturing.
On the outside, the almond-coloured two-component polyurethane paint applied to an epidoxic base coat guarantees high resistance to atmospheric agents and durability over the years.
PressureWave™ tanks undergo quality testing at multiple stages during the manufacturing process to ensure the structural integrity of each tank.
PressureWave ™ tanks represent, to date, the best pressure vessels of superior quality and versatile, suitable for a wide range of applications, do not require any maintenance
TECHNICAL FEATURES
Precharge in the bowl: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum liquid temperature: 90°C / 194°F
DIMENSIONS
Height: 804 mm - Width 430 mm - Weight 19.72 kg - Base height: 129 mm
