Heating function: ideal for premises of about 59 square meters with a calculated average height of 2.7 meters
Cooling function: ideal for rooms of about 48 square meters with a calculated average height of 2.7 meters
Heating yield 6.27 Kw - Cooling yield 5.11 Kw.

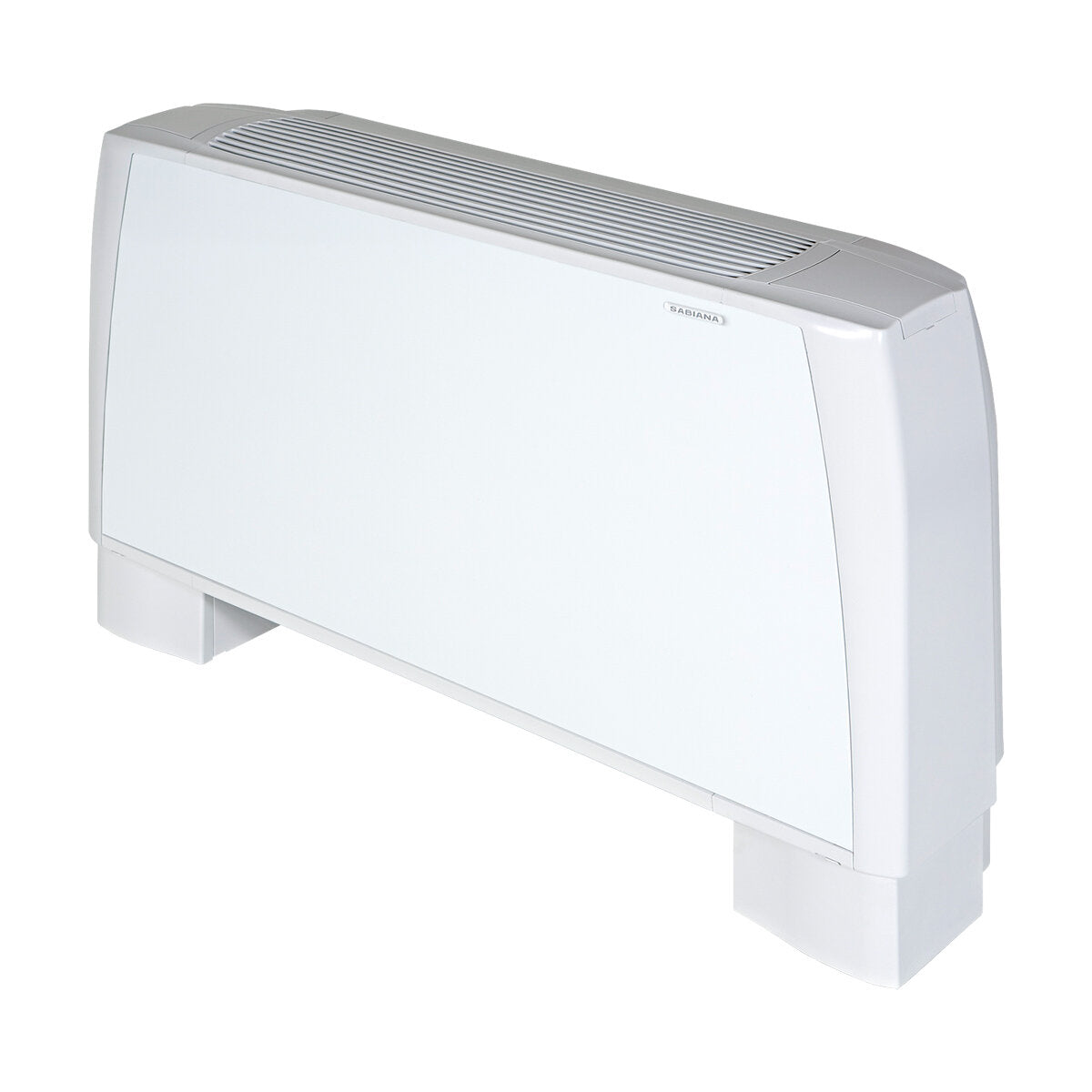

The CARISMA CRC is the classic Sabiana fan coil that can be installed on the wall or ceiling , capable of satisfying all technical and design needs .
GREAT MODULARITY OF INSTALLATION AND USE
The design of the CRC has made it the most popular in its category; it is the item most used by architects for its particularly attractive design and is ideal for installation in any environment, whether residential , commercial or hotel ; the possibility of installation in a vertical position on the wall or horizontal on the ceiling gives it considerable versatility . The cabinet is composed of: a front section in hot-dip galvanized and pre-painted white RAL 9003 steel sheet, two sturdy ABS shoulders in light gray color and the upper grid (MV version) reversible and with fixed gray fins clear . The Carisma CRC is available in 9 powers so it is always possible to find the one suitable for any environment. The internal structure is in galvanized sheet; the filter is in washable and easily removable polypropylene ; the engine is mounted on elastic anti- vibration supports ; the heat exchange coil is made of copper and aluminum and is reversible (the side of the connections can be reversed during installation) so it has great mounting versatility. The power supply is 230V. Built in Italy in the Sabiana factories, it enjoys the highest manufacturing standards in terms of quality and reliability .
GUARANTEED SAVINGS AND HIGH COMFORT
It has particularly low electrical absorption so it guarantees excellent energy efficiency ; offers high standards of comfort as it is extremely quiet in operation.
DIMENSIONS
Length: mm. 1415 - Height: mm. 530 - Depth: mm. 225.
ACCESSORIES*

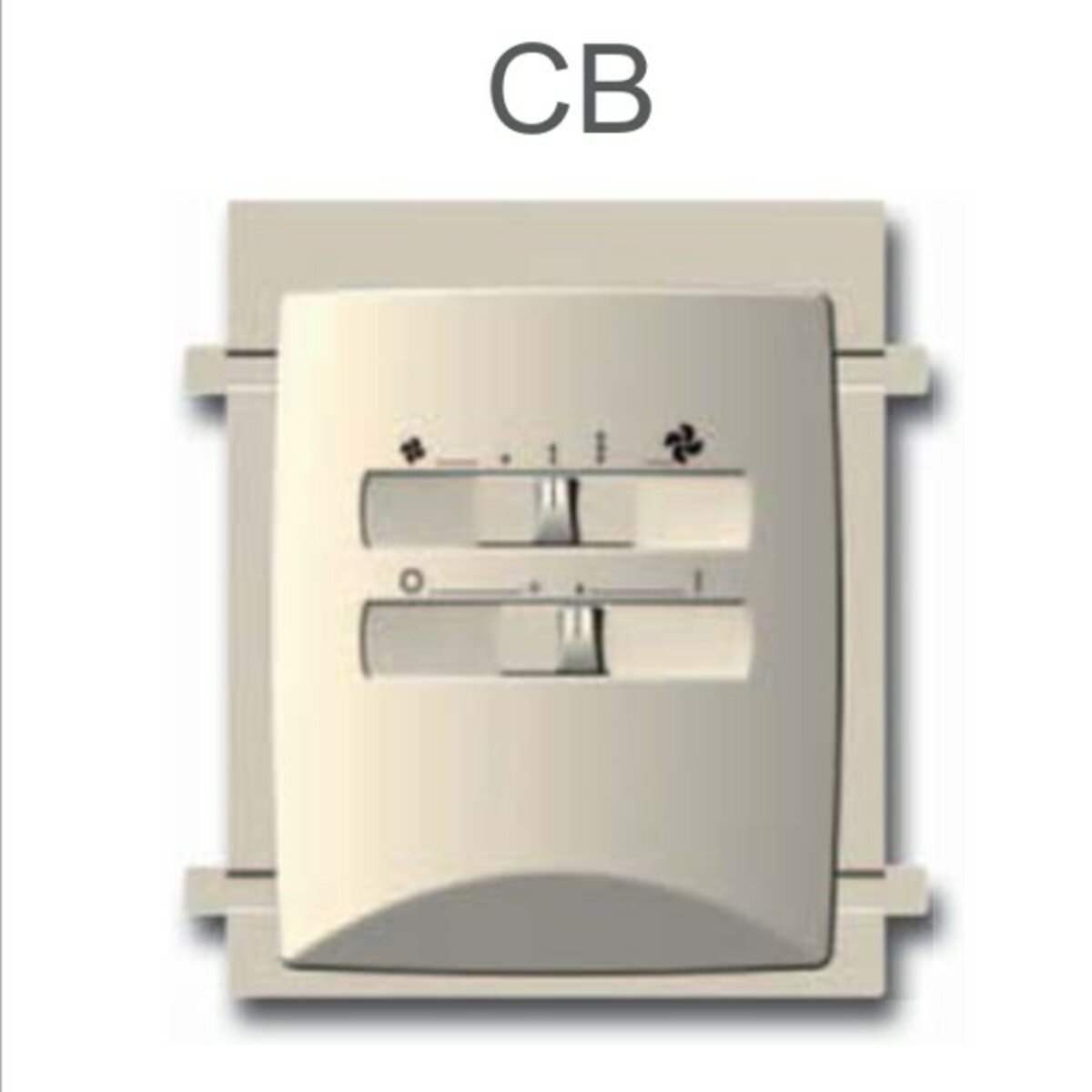

- "CB" 3 speed command. 9066300

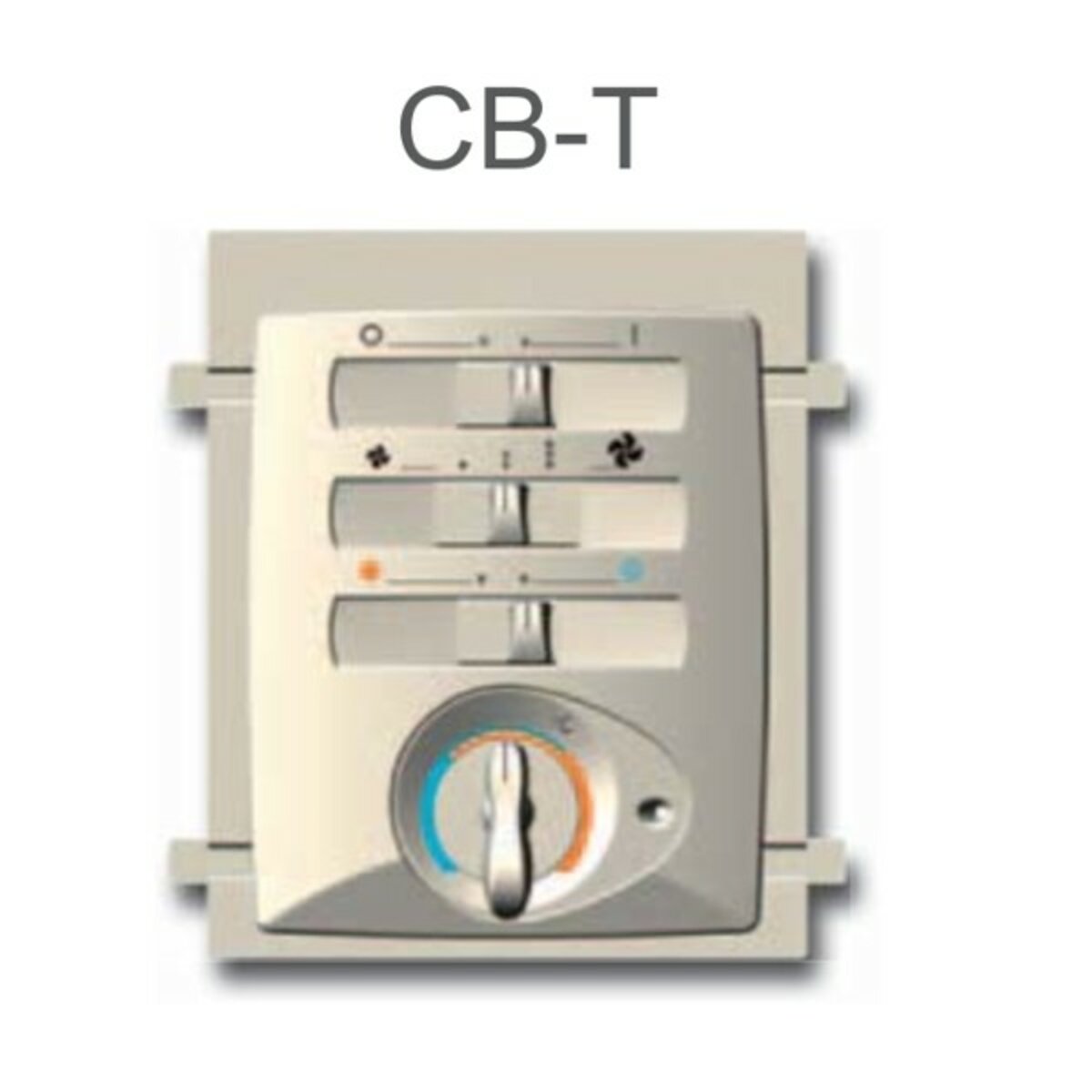

- "CB-T" 3 speed command. - electronic thermostat and ext./inv. switch manual 9066301
- Automatic “CB-AU” command. speed - electronic thermostat and ext./inv. switch 9066303

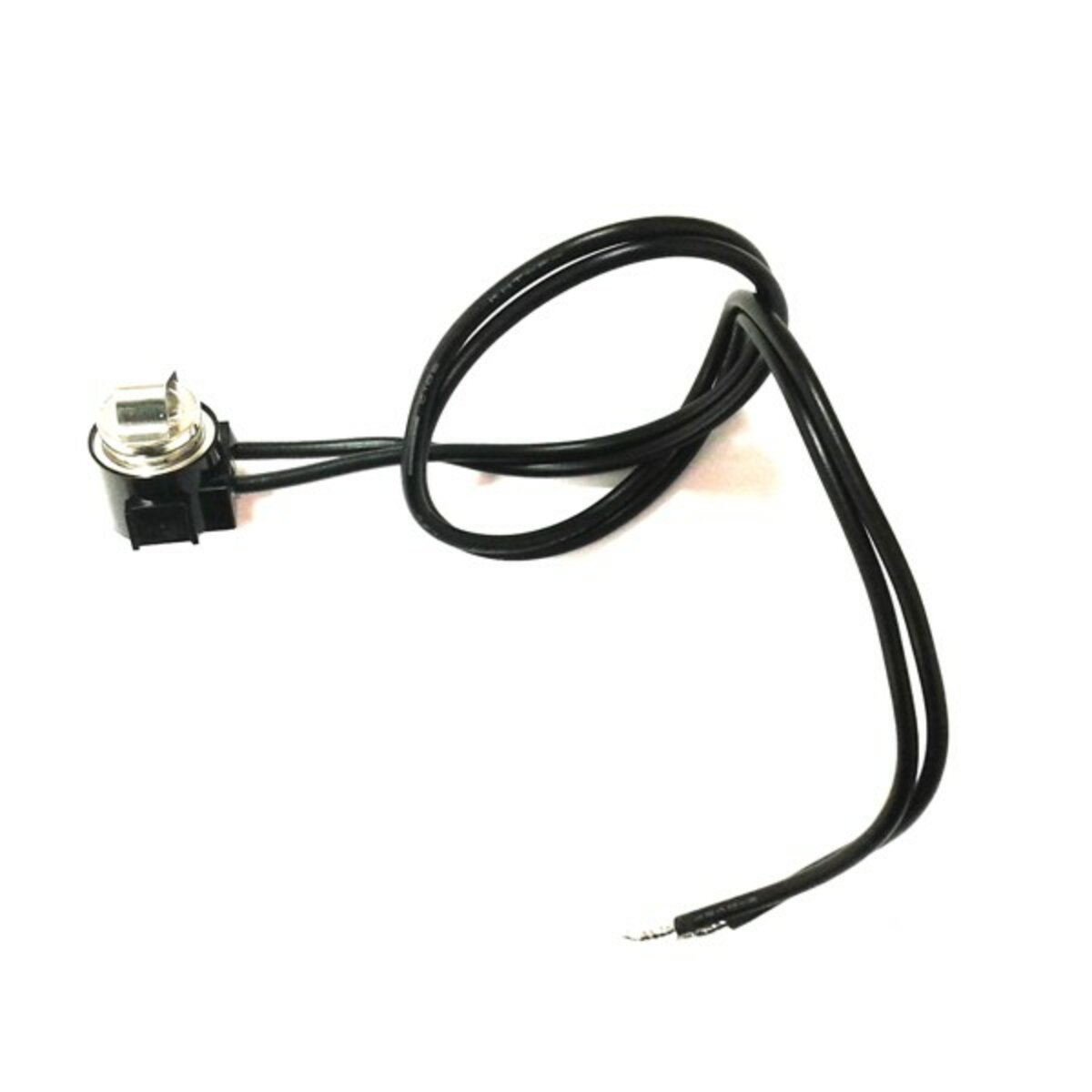

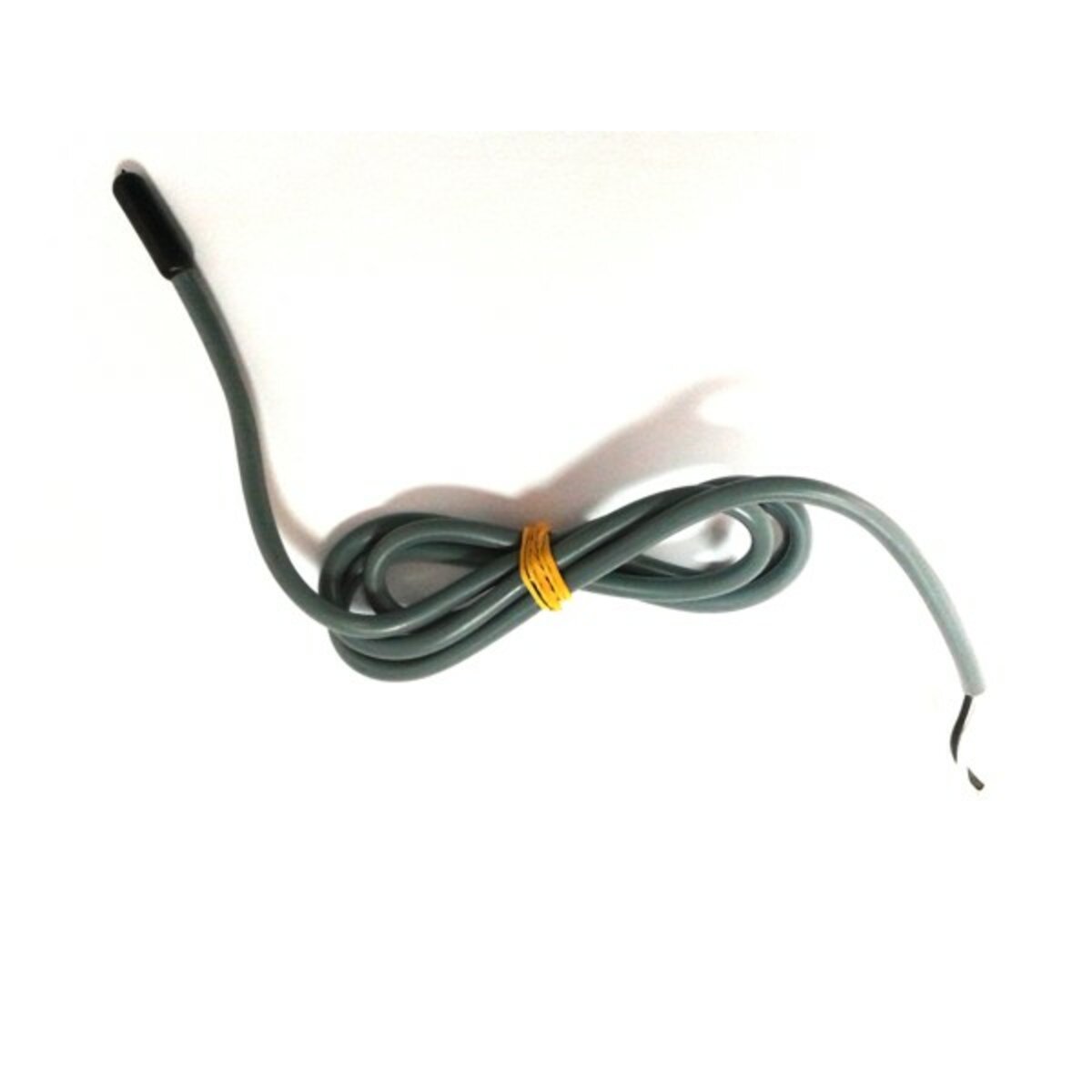

- Minimum temperature probe 9053048
(*) Items to be purchased separately.
WARRANTY
The guarantee is the Official Sabiana Italia guarantee and has a duration of 24 months.
