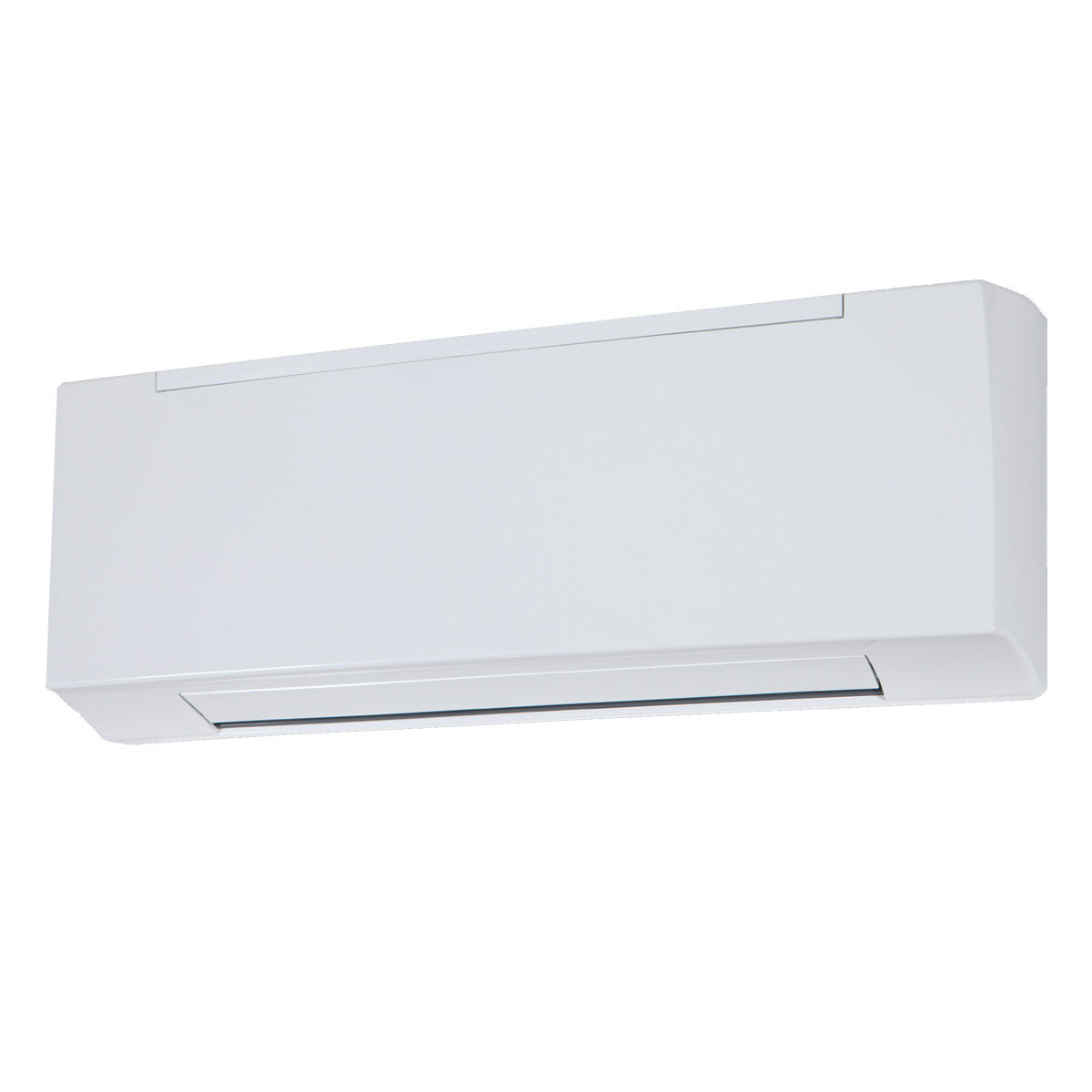

Sabiana CARISMA FLY CVP-TA 3 Fan Coil Unit - 3.23 - 3.00 kW - WITHOUT VALVE
Heating output 3.23 kW - Cooling output 3.00 kW
Heating function: ideal for rooms of approximately 36 m2 with an average calculated height of 2.7 m
Cooling function: ideal for rooms of approximately 29 m2 with an average calculated height of 2.7 m

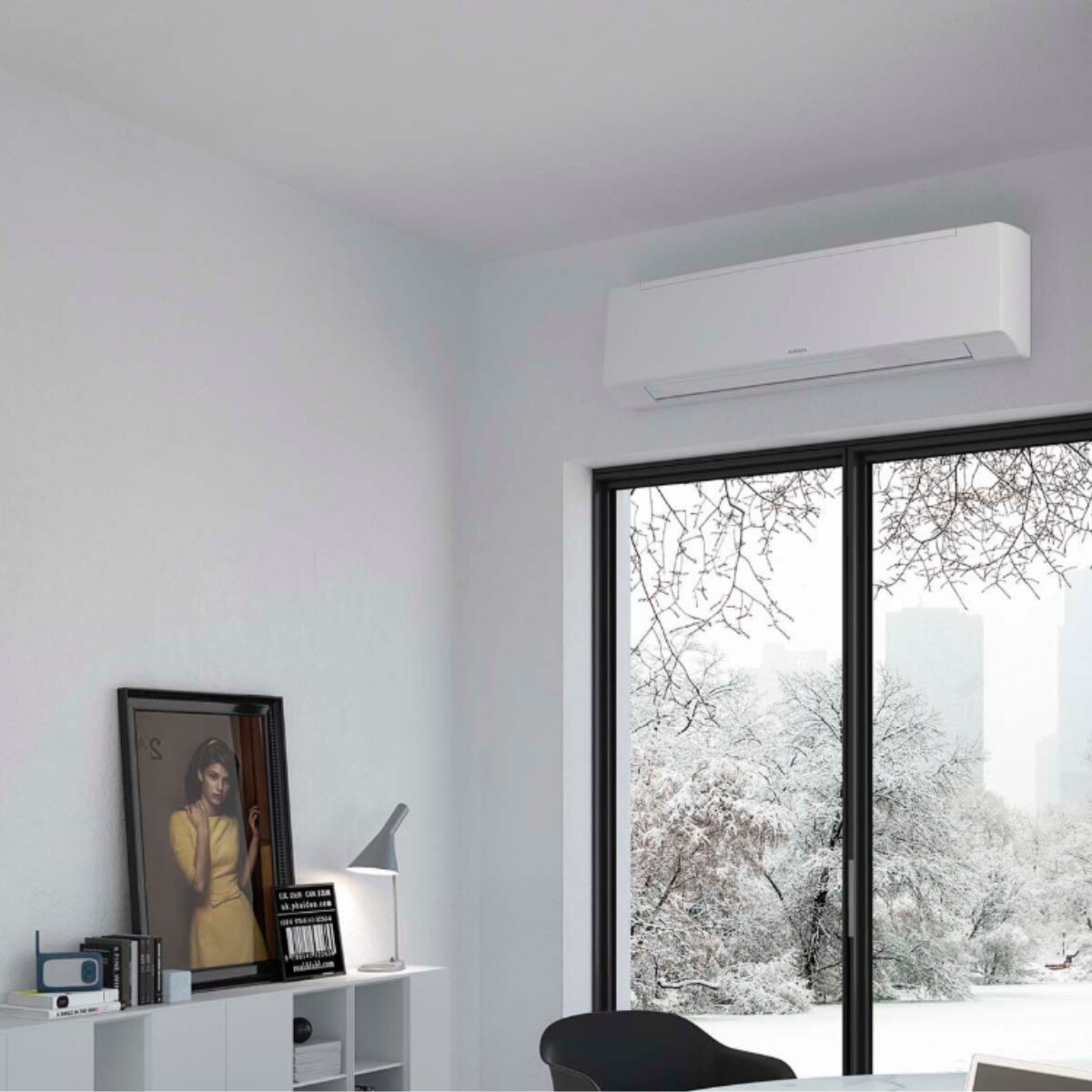

The CARISMA FLY is a wall-mounted fan coil unit that is easy to install like a traditional fan coil unit, but is positioned high on the wall (horizontally only) like a split air conditioner. Designed for residential and professional environments, it offers constant thermal comfort year-round, with Sabiana's signature build quality. The CVP-TA Standard version does not come with a pre-assembled valve .
TECHNOLOGY, EFFICIENCY AND USE
Easily installed like a traditional fan coil unit, the cabinet can contain a two- or three-way valve. The fan coil unit is made of self-extinguishing UL94 HB ABS , a material that guarantees high resistance over time and excellent safety and thermal stability . The surface, white RAL 9003 with a glossy finish , integrates discreetly into any environment, from residential to professional. The air diffusion fin is motorized in the CVP-TA (with remote control) and CVP-MBA (with T-MB2 wall control) versions, while in the basic CVP version it is manually adjustable. This flexibility allows the air flow to be directed for personalized comfort.
Equipped with a regenerable and washable synthetic air filter, easily accessible for periodic maintenance. It ensures clean airflow and a long lifespan.
Equipped with a tangential fan made of plastic material, with anti-vibration rubber supports that ensure silent and regular operation, ideal for installations in living or working environments.
Electric motor (AC - asynchronous) : this Carisma FLY model is equipped with a single-phase motor with six speeds , three of which are factory-connected (MIN, MED, MAX) for an optimal balance between comfort and energy savings. It is mounted on elastic anti-vibration supports , with a permanent capacitor , internal thermal protection with automatic reset , IP20 protection rating and insulation class B , to guarantee reliability and safety over time.
Heat exchange battery: Made with copper tubes and aluminum fins joined by mechanical expansion , it offers high heat exchange efficiency in heating and cooling. It is equipped with two ½” female gas connections , with air vents and Ø 1/8” gas outlets . The hydraulic connections are located on the left side (front view). The exchanger is not suitable for use in corrosive environments or in the presence of substances that are aggressive to aluminum.
Condensation collection tray made of resistant plastic material, with external Ø 16 mm drain connection , it ensures correct disposal of the condensation produced during operation in cooling mode.
Fixing template: Each unit is supplied with a cardboard template that simplifies wall installation operations, allowing for precise and quick positioning.
Thanks to the integrated Wi-Fi and Bluetooth connection , it can also be conveniently managed via the Sabiana WiFi and Sabiana BLE apps, allowing you to set the temperature, mode and time schedules directly from your smartphone or tablet.
NB: further technical details can be found in the attached technical sheet.
ACCESSORIES INCLUDED AS STANDARD
- Remote control
- WiFi and Bluetooth
- Installation template
DIMENSIONS
- Width 1185 mm_Height 322 mm_Depth 212 mm
- Weight 13 kg
WARRANTY
The warranty is the official Sabiana one and lasts 2 years.
