Sabiana Carisma Whisper fan coil unit CFF-ECM-MV-CB-T 30 SLIM - 2.90 kW 2.61 kW - with CB-Touch control
Suitable for rooms from 17 to 26 m2 with an average height of 2.7 m.
Heating output kW 2.90 - Cooling output kW 2.61.
For over 90 years, Sabiana has been designing and producing innovative products for heating and air conditioning suitable for residential or commercial environments, paying particular attention to energy saving and air quality but without neglecting shapes and designs that can adapt to the environment. harmoniously with the architectural structure of the building. The Carisma Whisper CFF-ECM fan coil unit combines high performance and reduced overall depth with minimal energy consumption.
DESIGN
The design of the Carisma Whisper has made it the most popular in its category: it is the most used item by architects for its particularly pleasing design and is ideal for installation in any environment, whether residential, commercial or hotel. Carisma Whisper It has a very small size, with a depth that does not exceed 126 mm, a modern aesthetic that integrates perfectly with the furnishings of any type of home, maintaining excellent performance in terms of noise and consumption. The cover cabinet is in galvanized sheet metal with white plastic external coating. The delivery grille is adjustable and positioned on the upper part. As regards the internal structure , also in galvanized sheet metal, it has a thickness of 1 mm and is composed of a rear wall and by two side shoulders insulated with 3 mm mattress.
FEATURES AND PERFORMANCE
The Carisma Whisper fan coil series is equipped with an innovative BLAC brushless synchronous motor, i.e. without brushes and without sensors, with permanent magnets, controlled by an inverter board installed on the motor. The high efficiency even at low rpm allows a great reduction in electrical consumption with absorption values not exceeding 5 Watts. The heat exchange battery is made of copper tubes and aluminum fins. It is equipped with a honeycomb polypropylene filter inserted in guides fixed on the structure internal which allow for easy extraction. This model is without valves.
The standard position of the hydraulic connections is on the left side and is not reversible.

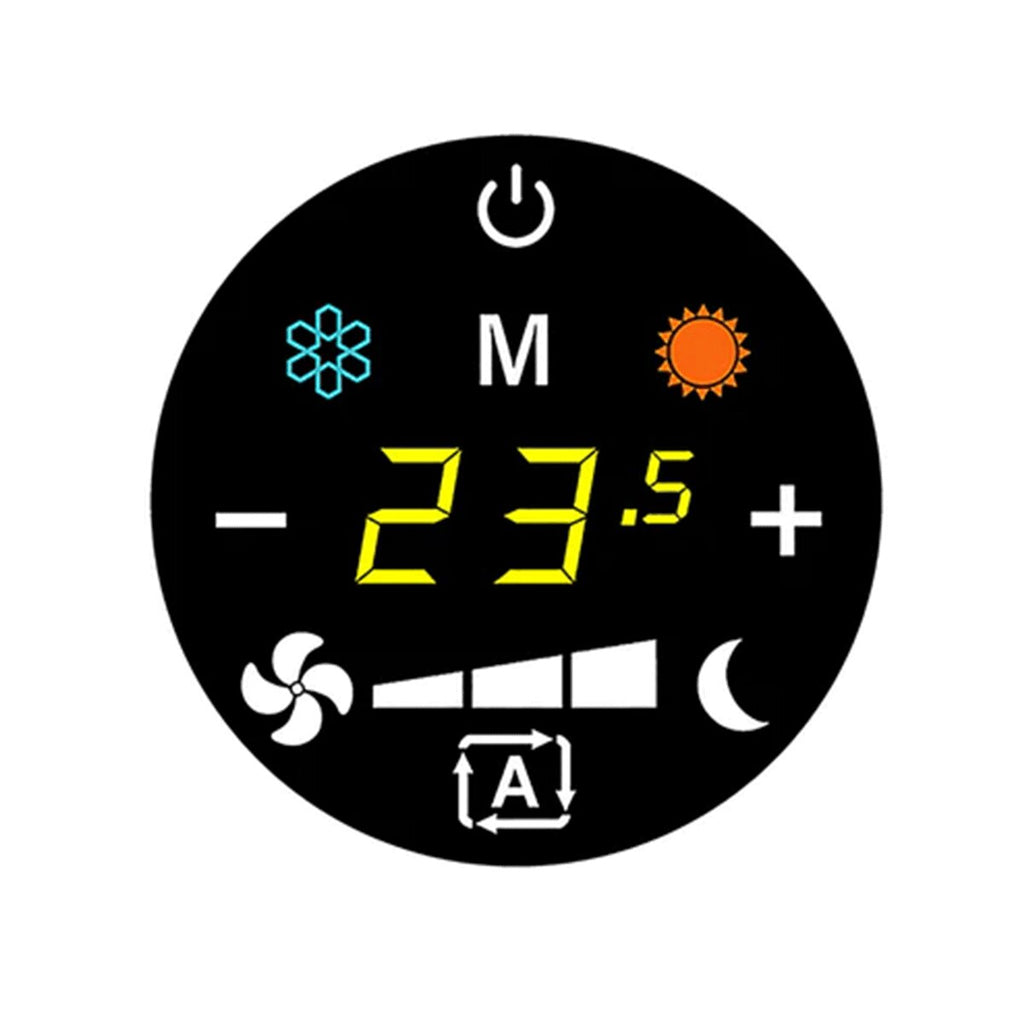

The Carisma Whisper fan coil unit is equipped with an on-board CB-Touch control already integrated with the UP-Touch power unit. It allows you to control and regulate the room temperature in a simple and intuitive way, by means of a probe positioned in the upper part bottom of the appliance; it is possible to manage the various settings, switch the appliance on or put it on stand-by, heat, cool or just ventilate the room, set the desired temperature set and adjust the operating speed of the fan according to the your needs. After a period of 3 minutes from the last action, the panel brightness is specifically reduced (SLEEPING mode) to increase energy saving and comfort during the night. Further information on the various technical specifications is contained in the user manual supplied with the device. of the product.
The CB-Touch control is designed to be controlled remotely via the smart functions of your mobile phone, using the Bluetooth wireless connection or via WiFi by downloading the Sabiana WiFi APP.
ACCESSORIES

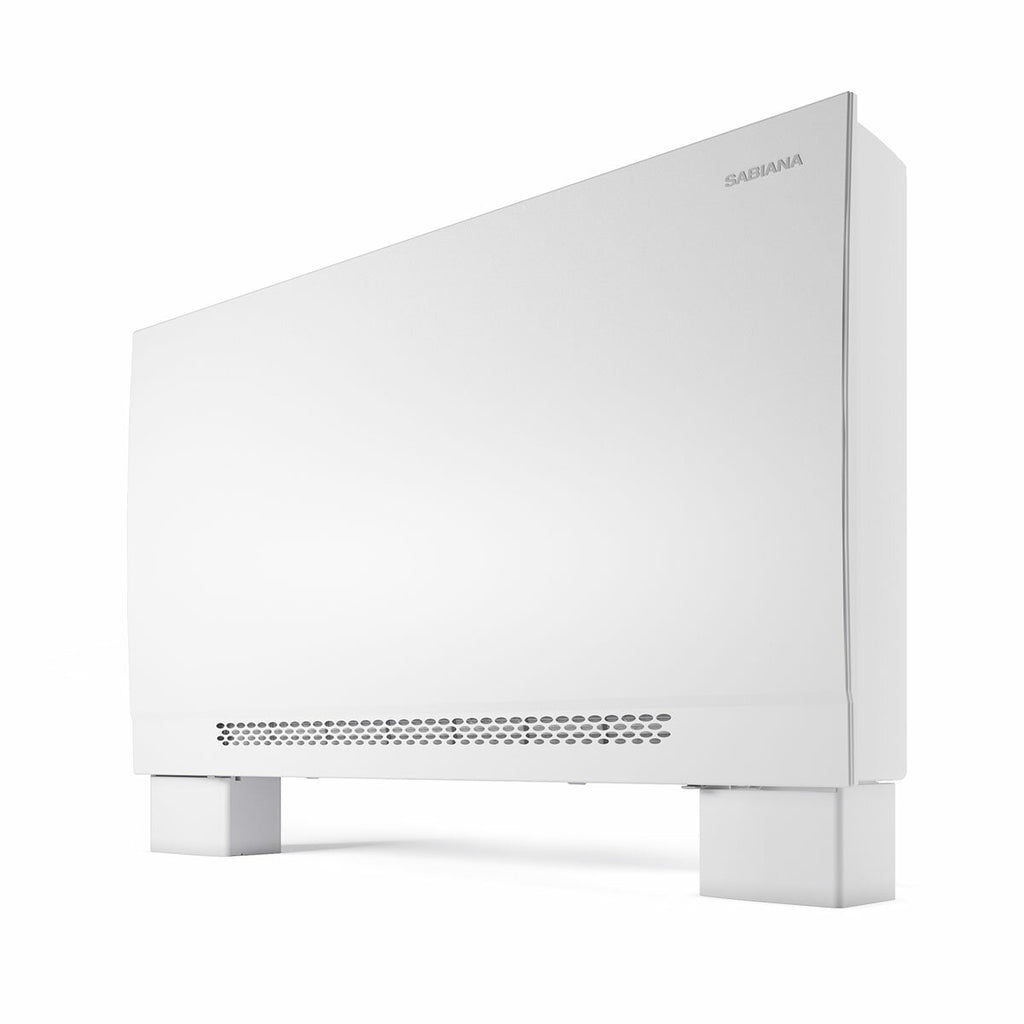

- Feet (purchased separately)
DIMENSIONS
- Length: mm. 1040 – Height: mm. 580 - Depth: mm. 126
- Weight 16.4 kg
WARRANTY
The warranty is the official Sabiana one and lasts 2 years.
