Samsung Air conditioner Windfree 4-way dual split 9000 + 9000 BTU inverter A +++ outdoor unit 5.0 kWThe air conditioner kit is equipped with the following indoor units:
- 2 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
THE INDOOR UNIT
9,000 BTU – Ideal for rooms of 15 to 25 m2 with an average height of 2.7 m
The wide range of Samsung WindFree air conditioners also includes the 4-way Mini WindFree Cassette indoor units.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created, first in the world, the system that air-conditions environments by preventing the user from perceiving the direct air flow. The WindFree system diffuses the air like no other because the internal unit has a micro-perforated front panel from which the conditioned air diffuses into the environment in a natural and absolutely imperceptible way through the 9000 holes of this model. The WindFree internal units all have a refined design that makes them particularly captivating, real design objects ; the many additional functions make it possible to radically transform the climate of the rooms, offering a unique pleasure.
With its intelligent technology , the WindFree system contributes to reducing the consumption of outdoor units which are already very low. The operation of the indoor unit takes place in two phases: when switched on, it allows the temperature to be reached quickly thanks to the Fast Cooling Mode which uses the classic air diffusion fin; subsequently, when the set temperature is reached, the flap closes automatically and the temperature is kept constant in the room through the diffusion of the conditioning through the micro-holes. The comfort is incomparable because it eliminates the classic head and back pains due to a direct diffusion of the conditioning and gives only the pleasure of the conditioning ; the system is also particularly useful for all environments such as offices, where a fixed position is occupied for a long time, or in bedrooms or, again, where the elderly and children are present.
WindFree, conditioning ... free from the wind!

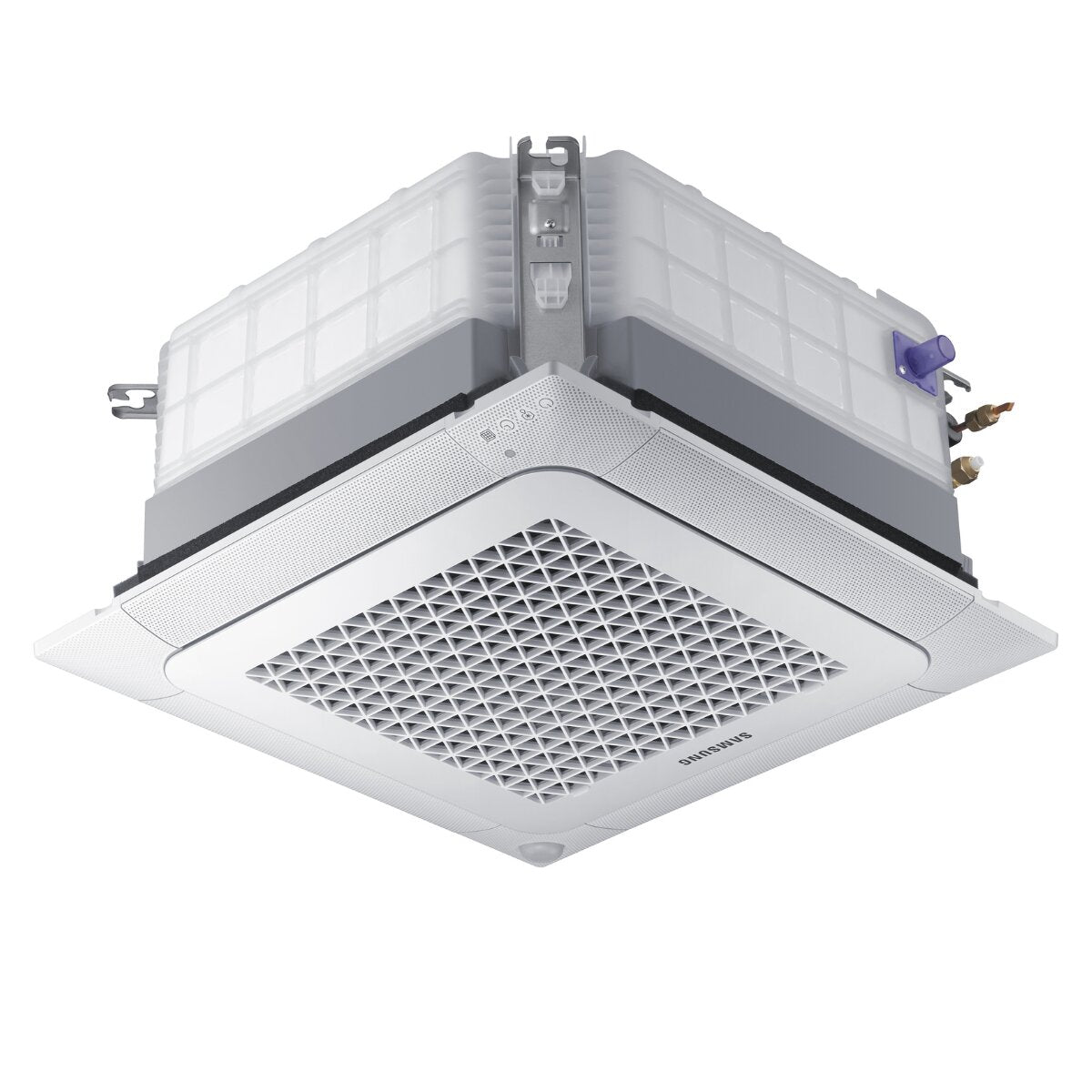

The internal unit of the Samsung Cassette 4 Vie Mini WindFree air conditioner is mounted on the ceiling, generally recessed in a false ceiling. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the indoor unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
With the Mini WindFree 4-Way Cassette, Samsung also extends its innovative WindFree project, one of a kind, to cassettes.
The 9000 BTU indoor unit presented here is used together with inverter outdoor units to create multi-split air conditioner combinations. It is not compatible with 4kW dual split outdoor units (AJ040TXJ2KG/EU).
DESIGN
The Samsung 4-Way Mini WindFree Cassette has a particularly beautiful design, very elegant and modern at the same time with its rounded corners and triangular mesh panel . It adapts to all types of furnishings and in any environment in which it is installed, integrating into any architecture; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into homes. This type of indoor unit has small dimensions and uses the classic 60x60 cm standard of false ceiling tiles in order to facilitate installation works, the depth is very reduced; the box is supplied already complete with the suction panel and the wired control .
BREATHE CLEAN AIR
The antibacterial filter removes the most common harmful agents , allowing the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffusion fins have a particular shape which prevents the accumulation of dust.
PERFECT CLIMATE AND RELAX
The 4-way Mini WindFree Cassette indoor unit offers a perfect climate and unparalleled comfort. Thanks to the air delivery from above on the four sides, which can also be individually adjusted between 32 and 75°, the diffusion of the air is always optimal and with the WindFree system it offers even greater comfort; however, the flaps are also equipped with automatic oscillation. This indoor unit is already equipped with a condensate drain pump built into the chassis; on the side of the box there is also the predisposition for the creation of the external air inlet which serves to renew the air in the environment and the predisposition for connecting a secondary duct to the cistern in order to air-condition an adjacent room.
The "Silent" function sets the silent mode, further reducing the already minimal noise levels produced during operation. Thanks to the self-diagnosis mode, any malfunction is immediately signalled.
These air conditioners are really very quiet : only 24 dB(A) of noise, little more than a rustle of leaves!
The Samsung 4-Way Mini WindFree Cassette indoor units of the T series adopt the faster and more efficient "NASA" communication protocol than the traditional RS485. They can be managed using the Advance wired control supplied (code MWR-WG00KN); the control has compact dimensions, its use is simple and intuitive.
DIMENSIONS
Length: mm 575 – Width: mm 575 – Height: mm 250
Weight: 11.5 kg.
ACCESSORIES SUPPLIED AS STANDARD
- Square false ceiling panel (code PC4SUFMAN)
- Advance wired control (code MWR-WG00KN).
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.

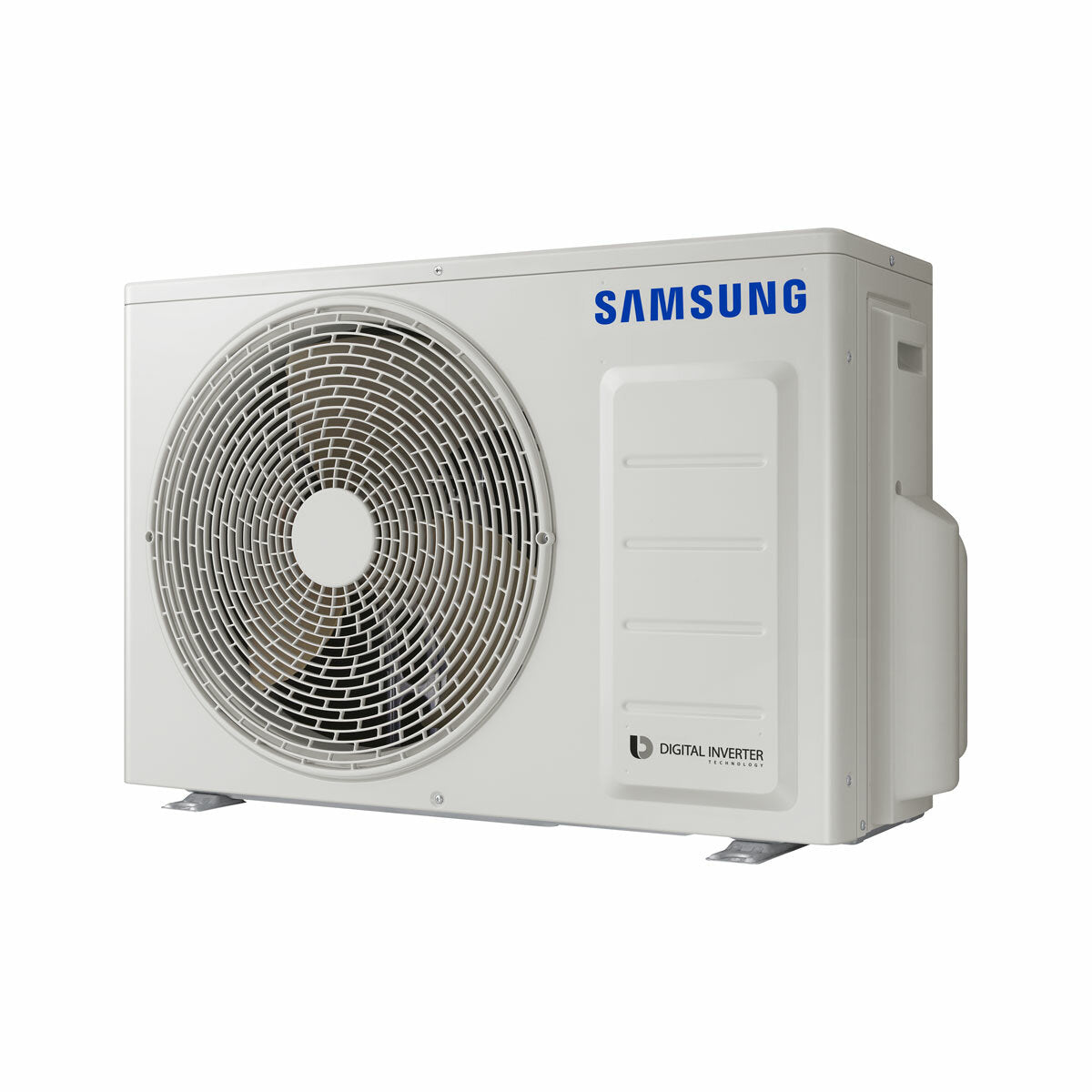

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.
Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 5 kW outdoor unit presented here allows you to connect and power two Samsung indoor units of any series, even with different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.

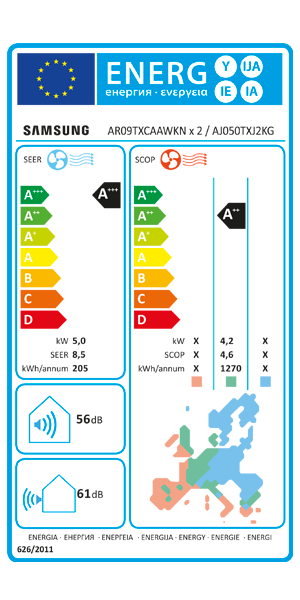

The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 5 kW outdoor unit has energy efficiency class A+++ in cooling and A++ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Samsung one and has a duration of 24 months.
WHITE SQUARE PANEL INDOOR UNIT 4 WAY CASSETTE MINI WINDFREE SAMSUNG
The square panel shown here is used together with the indoor unit of the Mini WindFree 4-Way Cassette Air Conditioner.
It allows to connect the edges of the box in the installation recess and covers all the defects and imperfections of the recess.
With its rounded edges and the triangular mesh in the center, it completes the cistern giving it even more elegance.
DIMENSIONS
Length: 620 mm - Width: 620 mm
ADVANCE WIRE CONTROL MWR-WG00KN FOR SAMSUNG INDOOR UNITS
The Advance wired control model MWR-WG00KN by Samsung allows you to customize and program the air conditioner in order to best manage the environmental comfort of the rooms where it is installed. The command adopts the "NASA" communication protocol, faster and more efficient than the old RS485.
It allows you to control all the functions offered by Samsung internal units of the mono and multi split range and is compatible with the models of the CAC, DVM and EHS lines.
Renewed in design compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.
It is a wired control and is connected to the internal unit using the appropriate cables.
The Advance wired control boasts numerous control functions all easily accessible from the Settings menu: it allows you to control on and off, temperatures, fan speeds, air flow, Sleep mode and Silent mode (for compatible internal units); to reset the indoor unit filter function alarm, the weekly program setting. It is also equipped with a Child Lock function to avoid inadvertent tampering with the settings and the Automatic Lock function. It offers the possibility of viewing all information on operation and setting summer operation. When turned on, the display turns white showing the current settings in blue . The control is equipped with a built-in temperature sensor which constantly detects the temperature of the environment in which it is installed. Furthermore, it offers the possibility to control the additional functions of the WindFree, CAC and DVM S models.
A single command allows you to connect and manage up to 16 internal units .
DIMENSIONS
Width: 120 mm - Height: 120 mm - Depth: 19 mm.
WARRANTY
The warranty is the official Samsung one and lasts 24 months.
