THE INDOOR UNIT
9,000 BTU – Ideal for rooms of 15 to 25 m2 with an average height of 2.7 m
The Samsung WindFree family of air conditioners also includes Cassetta 1 Via WindFree indoor units with the "NASA" communication protocol that is faster and more efficient than the traditional RS485.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created, first in the world, the system that air-conditions environments by preventing the user from perceiving the direct air flow. The WindFree system diffuses the air like no other because the internal unit has a micro-perforated panel from which the conditioned air diffuses into the room in a natural and absolutely imperceptible way through thousands of small holes . The WindFree internal units all have a refined design that makes them particularly captivating, real design objects ; the many additional functions make it possible to radically transform the climate of the rooms, offering a unique pleasure.
With its intelligent technology, the WindFree system contributes to reducing the consumption of outdoor units which are already very low. The operation of the indoor unit takes place in two phases: when switched on, it allows the temperature to be reached quickly thanks to the Fast Cooling mode which uses the classic air diffusion fin; subsequently, when the set temperature is reached, the flap closes automatically and the temperature is kept constant in the room through the diffusion of the conditioning through the micro-holes. The comfort is incomparable because it eliminates the classic head and back pains due to a direct diffusion of the conditioning and gives only the pleasure of the conditioning ; the system is also particularly useful for all environments such as offices, where a fixed position is occupied for a long time or in bedrooms or, again, where the elderly and children are present.
WindFree, conditioning ... free from the wind!

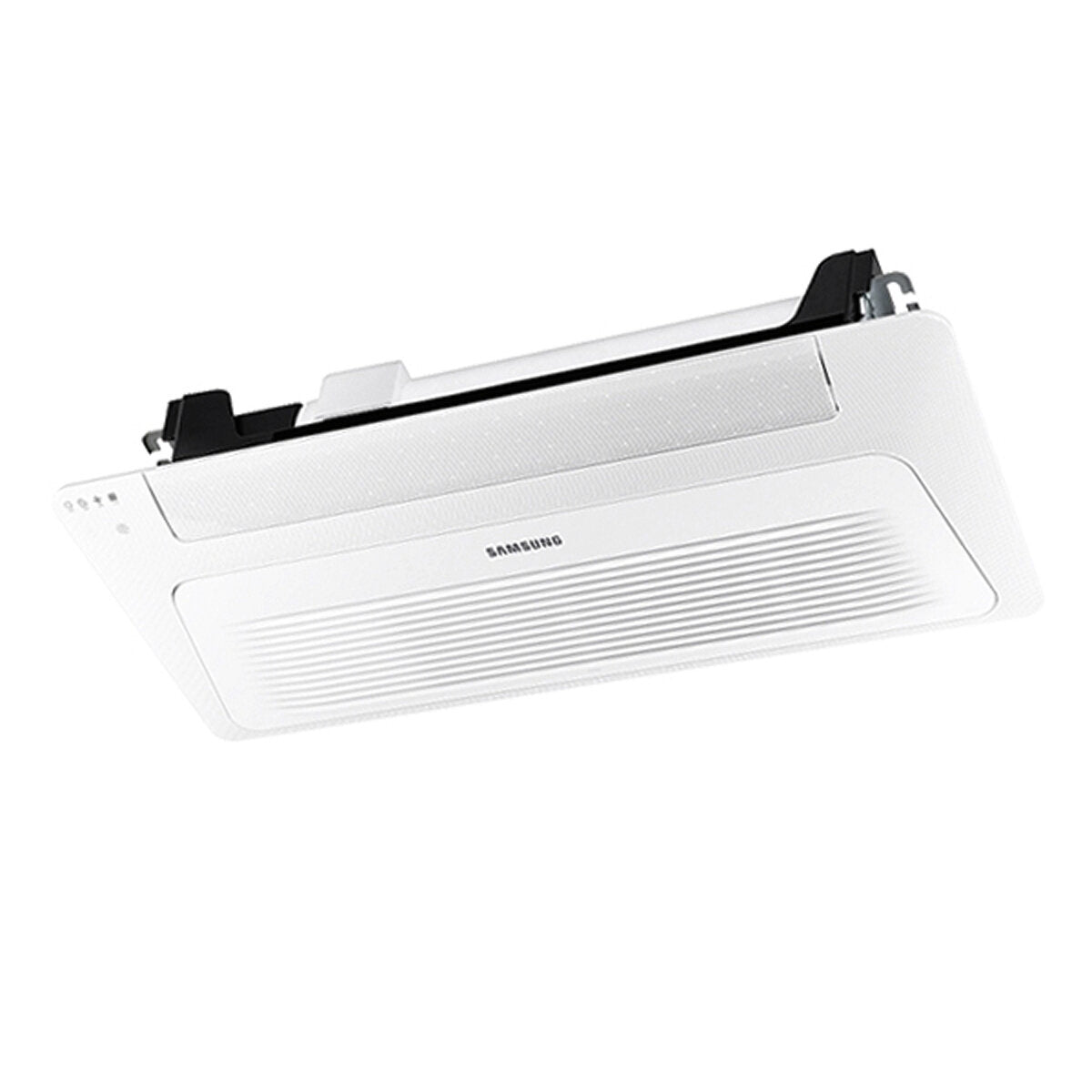

The Cassetta 1 Via WindFree indoor unit is mounted on the ceiling, usually built into a false ceiling. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the indoor unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
The 9000 BTU indoor unit featured here is used in conjunction with inverter outdoor units to create residential and commercial multi-split air conditioner combinations.DESIGN
The Samsung Cassette 1 Via WindFree air conditioner has a particularly beautiful design, very elegant and modern at the same time with its rounded corners and micro-perforated panel. It adapts to all types of furnishings and in any environment in which it is installed, integrating into any architecture; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into prestigious homes. Thanks to its depth of only 135 mm, it is ideal for installations in low false ceilings ; the box is supplied already complete with the suction panel and the Advance wired control .
BREATHE CLEAN AIR
The antibacterial filter removes the most common harmful agents , allowing the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffusion fin has a particular shape which prevents the accumulation of dust.
PERFECT CLIMATE AND RELAX
The internal unit Cassetta 1 Via WindFree offers a perfect climate and unparalleled comfort. Thanks to the air delivery from above, with its adjustable guide vane, the diffusion of the air is always optimal; the WindFree system then creates the conditions of superior comfort. This indoor unit is already equipped with a condensate drain pump built into the chassis; it also offers the possibility of being connected to several indoor units.
The Samsung Cassette 1 Via WindFree air conditioner is equipped with a humidity sensor that activates dehumidification in the event of excessive humidity for superior comfort. The "Silent" function further reduces the already minimal noise levels produced during operation. Thanks to the self-diagnosis mode, any malfunction is immediately signalled.
The air conditioners are really very silent : only 26 dB(A) of sound pressure for this size, less than a whisper!
The supplied Advance wired control (code MWR-WG00KN) has compact dimensions; its use is simple and intuitive. and features clear, easy-to-use controls.
Length: 970 mm – Width: 410 – Depth: 135 mm
Weight: 9.5 kg.
ACCESSORIES SUPPLIED AS STANDARD
- Rectangular false ceiling panel
- Advance wired control
The warranty is the official Samsung one and has a duration of 24 months.

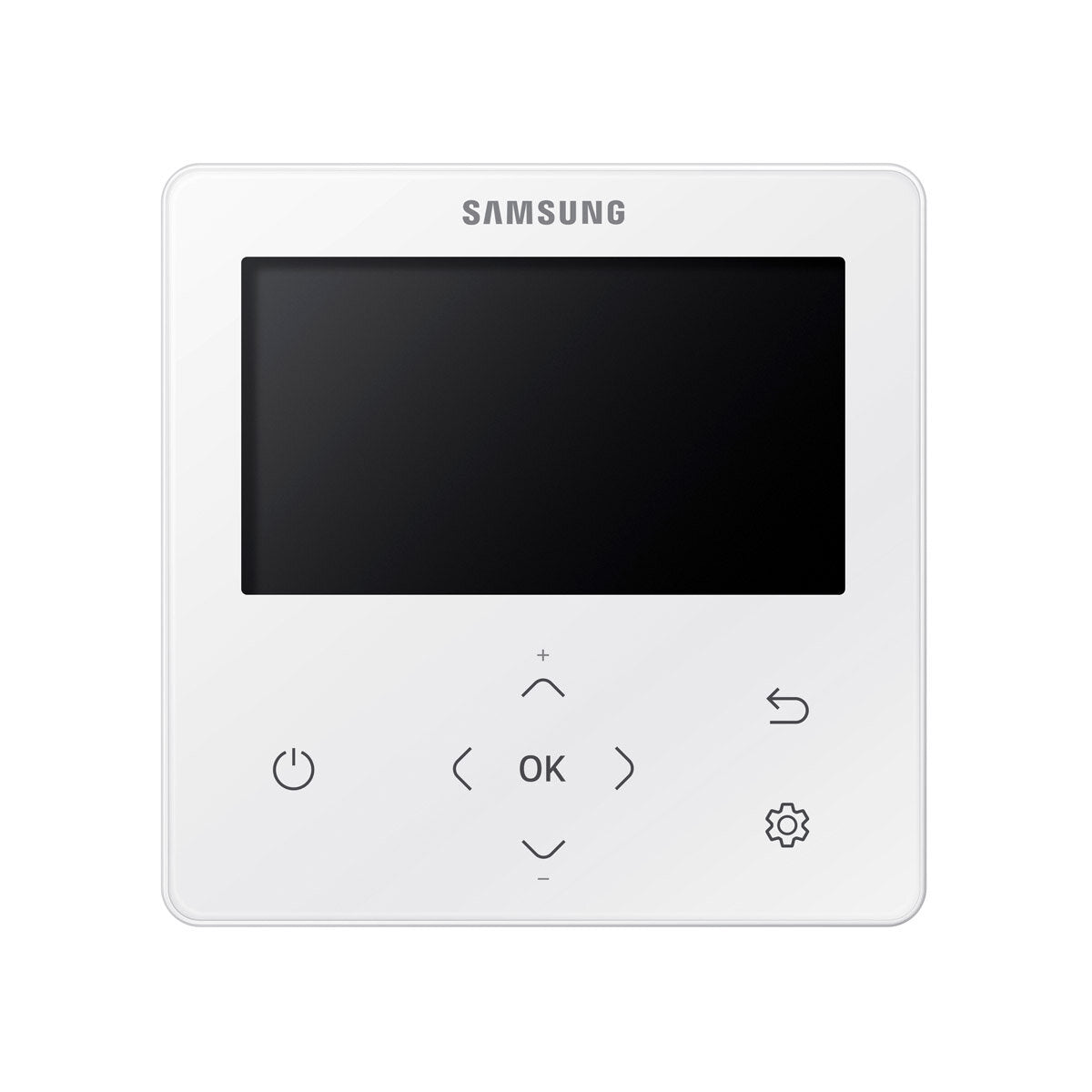

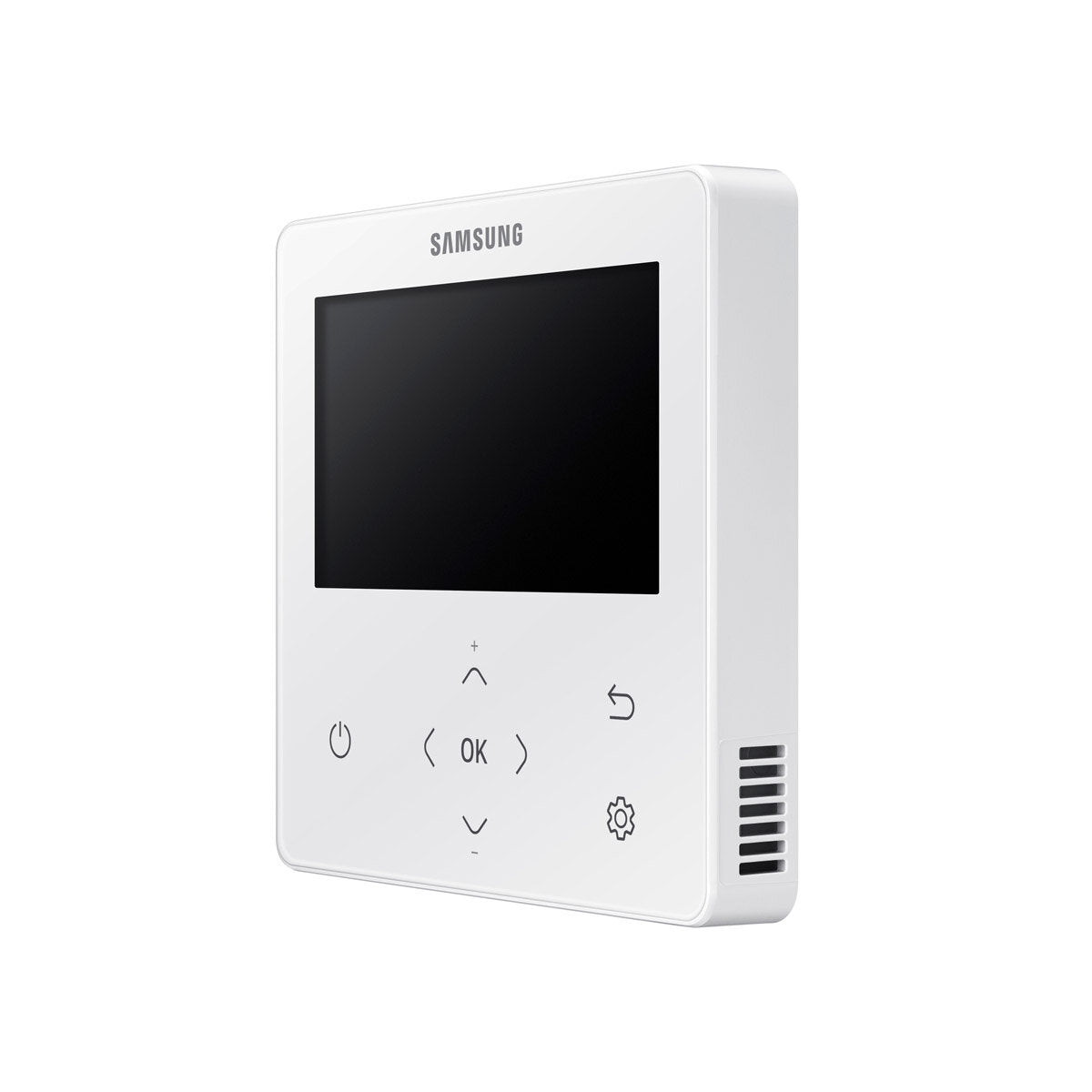

ADVANCE MWR-WG00KN WIRE CONTROL FOR SAMSUNG INDOOR UNITS
The Advance wired control model MWR-WG00KN by Samsung allows you to customize and program the air conditioner in order to better manage the environmental comfort of the rooms where it is installed. The control adopts the "NASA" communication protocol, faster and more efficient than the traditional RS485.
It allows you to control all the functions offered by the Samsung indoor units of the mono and multi split range and is compatible with the models of the CAC, DVM, and EHS lines.
Renewed in design compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.
It is a wired control and connects to the indoor unit using the appropriate cables.

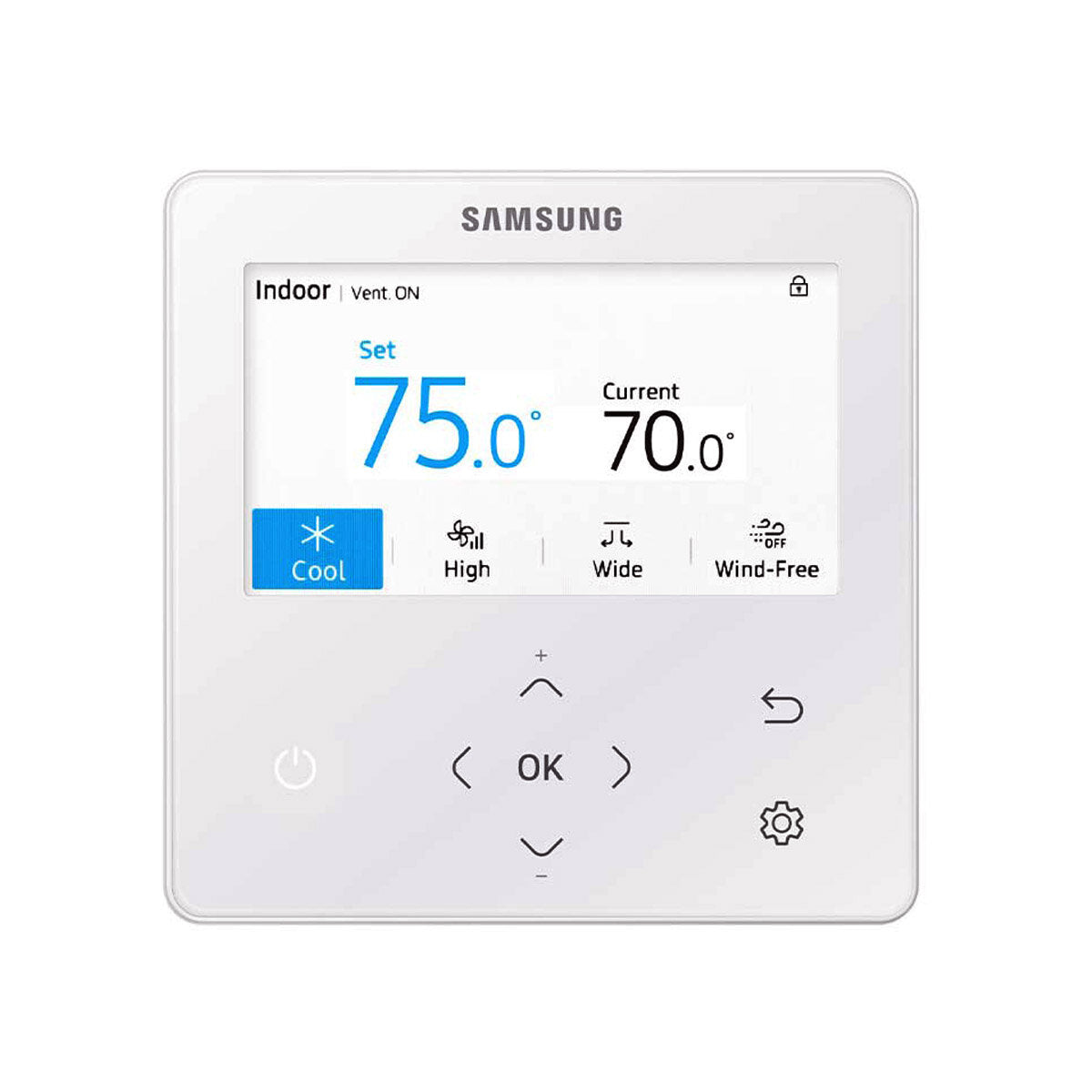

The Advance wired controller boasts numerous control functions all easily accessible from the Settings menu: it allows you to control the on and off, temperatures, fan speeds, airflow, Sleep mode and Silent mode; to reset the indoor unit filter function alarm, the weekly schedule setting. It is also equipped with a Child Lock function to prevent involuntary tampering with the set settings and an Automatic Lock function. It offers the possibility to view all the information on the operation and to set the summer operation. When switched on, the display turns white showing the current settings in blue . The control is equipped with a built-in temperature sensor which constantly detects the temperature of the environment in which it is installed. It also offers the possibility to control the additional functions of the WindFree, CAC and DVM S models.
A single command allows you to connect and manage up to 16 indoor units .DIMENSIONS
Width: 120 mm - Height: 120 mm - Depth: 19 mm.
The warranty is the official Samsung one and has a duration of 24 months .

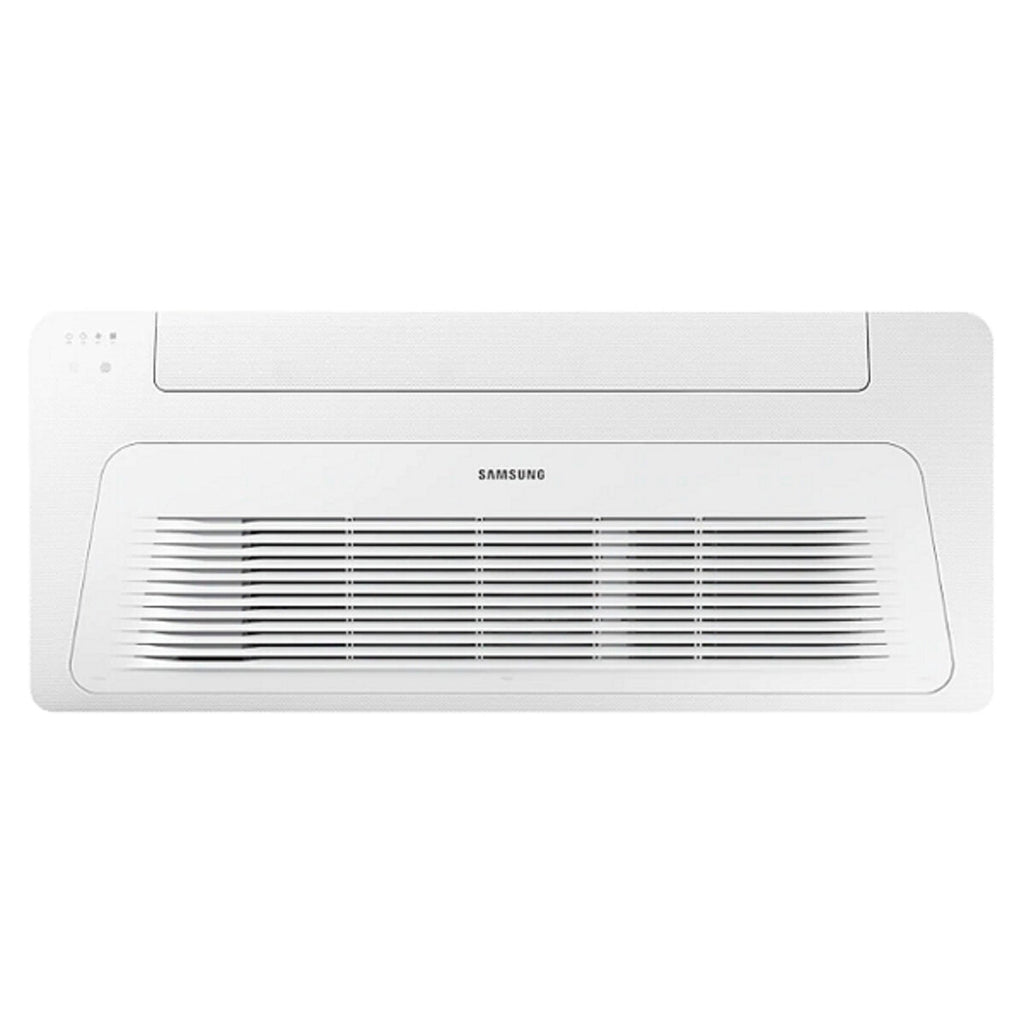

WHITE RECTANGULAR PANEL INDOOR UNIT CASSETTE 1 WAY WINDFREE SAMSUNG
The rectangular panel shown here is used in conjunction with the Samsung 1 Via WindFree Cassette Air Conditioner indoor unit.
It allows to connect the edges of the box in the installation recess and covers all the defects and imperfections of the recess.
It completes the cistern aesthetically, giving it even more elegance.
Length: 1198 mm - Width: 500 mm - Depth: 35 mm

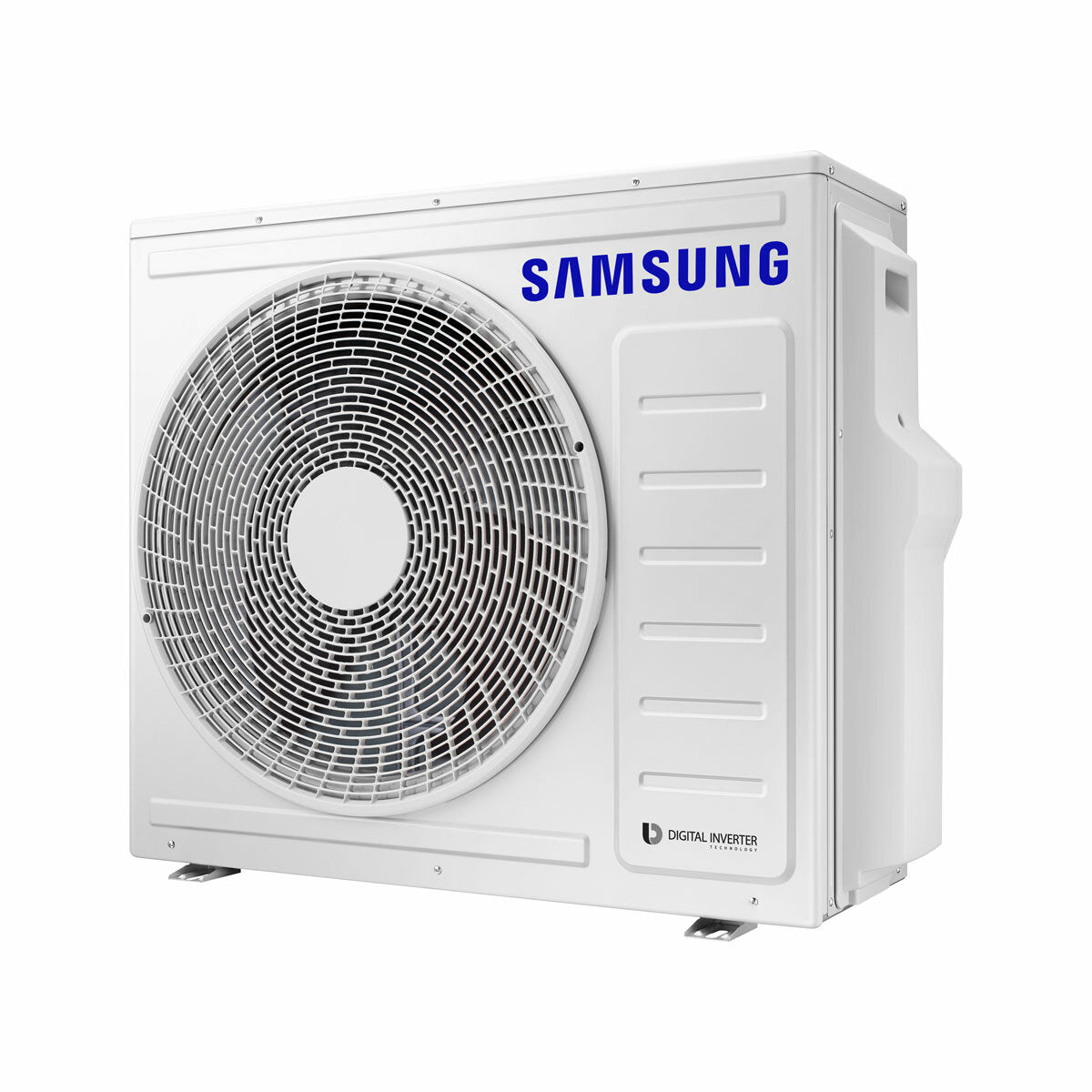

THE OUTDOOR UNIT
In 2020 Samsung updated the range of FJM ( Free Joint Multi ) outdoor units with the T Series : these outdoor units for multi-split air conditioners use R32 gas with low environmental impact, a compressor with Digital Inverter technology and the heat pump , the real beating heart of the air conditioner.

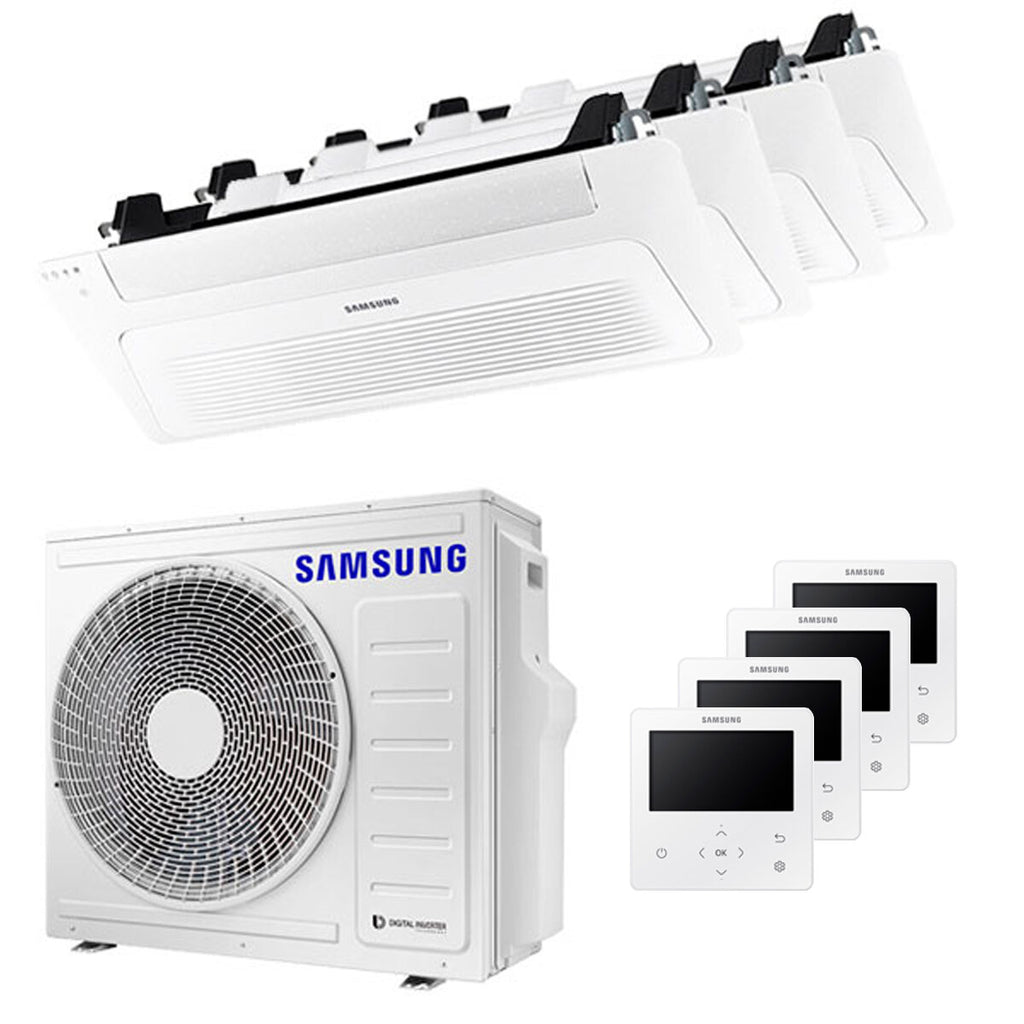

Multisplit air conditioners offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned. The 8 kW outdoor unit presented here allows you to connect and power two, three or four Samsung indoor units of any Series, even with different powers; the indoor units will always operate independently and each will have its own control.
The Samsung FJM outdoor unit for air conditioners always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort both when using the air conditioner in cooling and heating mode. Thanks to the Digital Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The Digital Inverter compressor allows further savings as well as guaranteed well-being thanks to the maintenance of a constant temperature without sudden changes . The heat pump allows you to use the air conditioner both in summer for cooling and during winter for heating.
The compressor is particularly silent in full respect of one's sleep and that of others and has great efficiency ; the innovative construction technology makes it particularly robust to the full advantage of durability over the years.

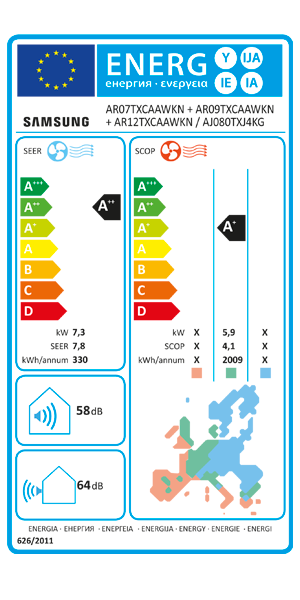

The R32 gas with which these outdoor units are loaded has a very low environmental impact and therefore contributes considerably to respect for nature; it also reduces energy consumption to the full advantage of spending on bills. The 8 kW outdoor unit has energy efficiency class A++ in cooling and A+ in heating.
Particularly resistant to bad weather and atmospheric agents, it can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.DIMENSIONS
Width: 880 mm - Height: 798 mm - Depth: 310 mm
Weight: 57.5 kg.
The warranty is the official Samsung one and has a duration of 24 months.
Internal unit AJ026TN1DKG/EU
External unit AJ080TXJ4KG/EU
