Samsung Cassette 4 Way Mini WindFree Commercial Air Conditioner 24000 BTU Inverter A++ External Unit 6.8 kWThe air conditioner kit is equipped with the following indoor units:
- 1 x 24000 BTU - Ideal for rooms from 80 to 100 sqm with an average height of 2.7 m
The wide range of Samsung WindFree air conditioners also includes the Mini WindFree 4-Way Cassette internal units.
The WindFree system represents the revolution and the future of air conditioning. With WindFree, Samsung has created, first in the world, the system that air-conditions environments without the user perceiving direct air flow. The WindFree system diffuses air like no other because the internal unit has a micro-perforated front panel from which the air-conditioned air diffuses into the environment in a natural and absolutely imperceptible way through the 9000 holes of this model. The WindFree internal units have a refined design that makes them particularly attractive, real design objects ; the multiple additional functions allow you to radically transform the climate of the environments offering a unique pleasure.
With its intelligent technology , the WindFree system helps reduce the consumption of external units, which are already very low. The operation of the internal unit takes place in two phases: when switched on, it allows the temperature to be reached quickly thanks to the Fast Cooling Mode which uses the classic air diffusion fin; subsequently, when the set temperature is reached, the fin closes automatically and the temperature is kept constant in the room through the diffusion of air conditioning through the micro-holes. The comfort is unparalleled because it eliminates the classic headaches and back pains due to direct diffusion of air conditioning and gives only the pleasure of air conditioning ; the system is particularly useful for all environments such as offices, where a fixed position is occupied for a long time, or in bedrooms or, again, where there are elderly people and children.
WindFree, air conditioning... free from the wind!

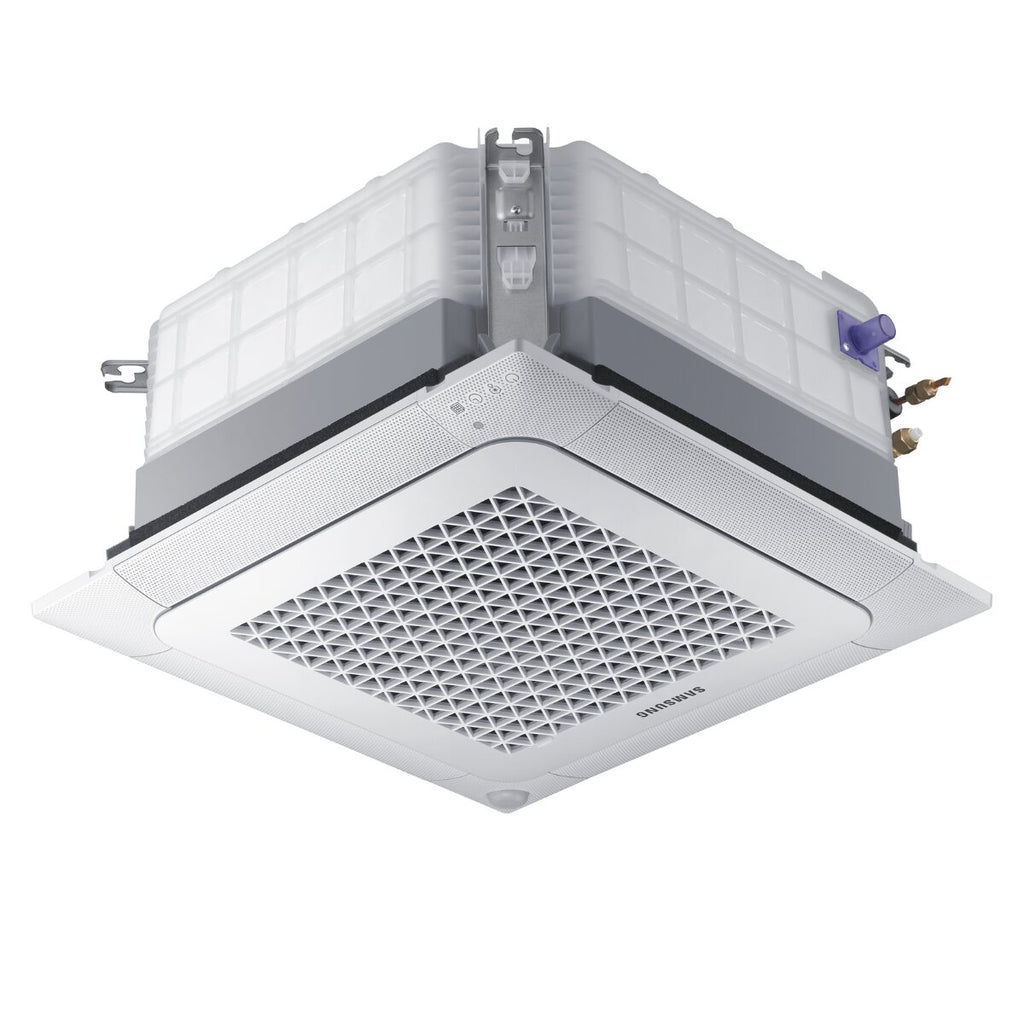

The internal unit of the Samsung Cassette 4 Way Mini WindFree air conditioner is mounted on the ceiling, generally recessed into a false ceiling. Air conditioners with a split cassette offer the great advantage of not taking up space on the walls for the installation of the internal unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the air conditioned.
The 4-Way Cassette Mini WindFree internal units are used together with the Inverter external units to create combinations of single and multi-split air conditioners from the Samsung residential (RAC) or commercial (CAC) range.
DESIGN

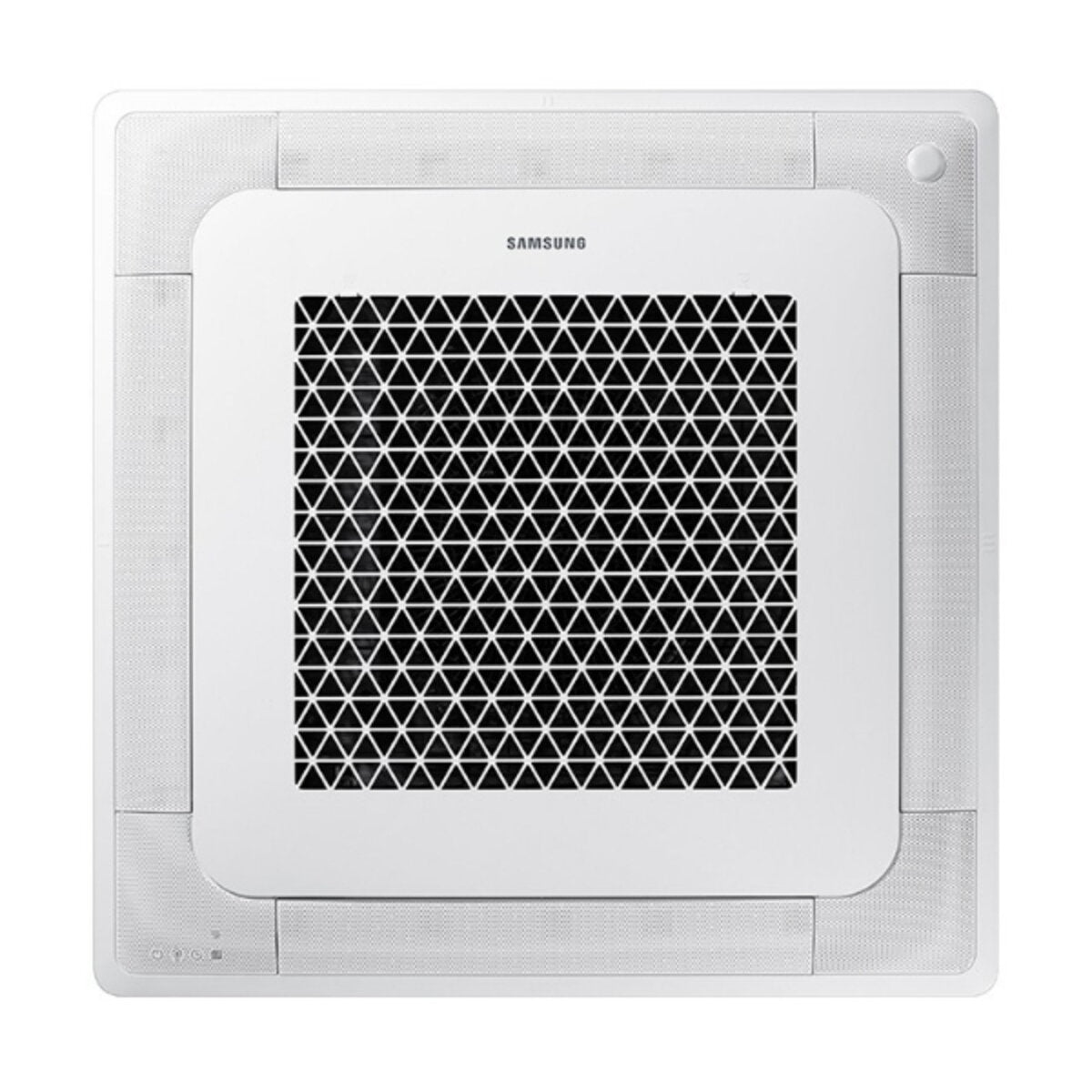

The Samsung 4-Way Mini WindFree Cassette air conditioner has a particularly beautiful design, very elegant and modern at the same time with its rounded corners and triangular mesh panel . It adapts to all types of furnishings and in any environment in which it is installed, integrating into any architecture; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into homes. This type of internal unit has small dimensions and uses the classic 60x60 cm standard of false ceiling tiles in order to facilitate installation work, the depth is very limited; the cassette is supplied already complete with the suction panel and the wired control .
BREATHE CLEAN AIR
The included dust filter blocks the entry of the most common harmful agents and allows the air conditioner to always return clean air. The filter, which helps fight allergies, is easily removed for cleaning. The air conditioning diffusion fins have a special shape that prevents the accumulation of dust; they are also easily removable for cleaning operations.
PERFECT CLIMATE AND RELAXATION
The 4-Way Mini WindFree Cassette indoor unit offers a perfect climate and unparalleled comfort. Thanks to the air flow from above via the 4 66 mm deep fins that can also be adjusted individually (between 32 and 75°), the air diffusion is always optimal and, thanks to the WindFree system, it offers even greater comfort; the fins are also equipped with automatic oscillation. This indoor unit is already equipped with the condensation drain pump integrated into the chassis; on the side of the cassette there is also the predisposition for the creation of the external air inlet for the renewal of the air in the room and the predisposition for connecting a secondary channel to the cassette in order to air condition an adjacent room.
The “Silent” function further reduces the already minimal noise levels produced during operation. Thanks to the Self-diagnosis mode, any malfunction is immediately reported.
The Samsung Mini WindFree 4-Way Cassette air conditioner, in the 9000 and 12000 BTU sizes, is also equipped with a High Ceiling function for high ceilings which allows you to increase the air flow and obtain total comfort even in the presence of ceilings up to 3 m high.
The Samsung Cassette 4 Way Mini WindFree internal units adopt the “NASA” communication protocol, faster and more efficient than the traditional RS485, which allows the air conditioner to be managed remotely via App by purchasing the appropriate optional Wi-Fi kit. Climamarket offers, as standard, the advanced wired control (code MWR-WG00KN) for local management; the control has compact dimensions and its use is simple and intuitive.
ACCESSORIES SUPPLIED AS STANDARD WITH EACH INTERNAL UNIT
- Square ceiling panel (code PC4SUFMAN)
- Advanced wired control (code MWR-WG00KN).
WARRANTY
The warranty is the official Samsung one and lasts 24 months.

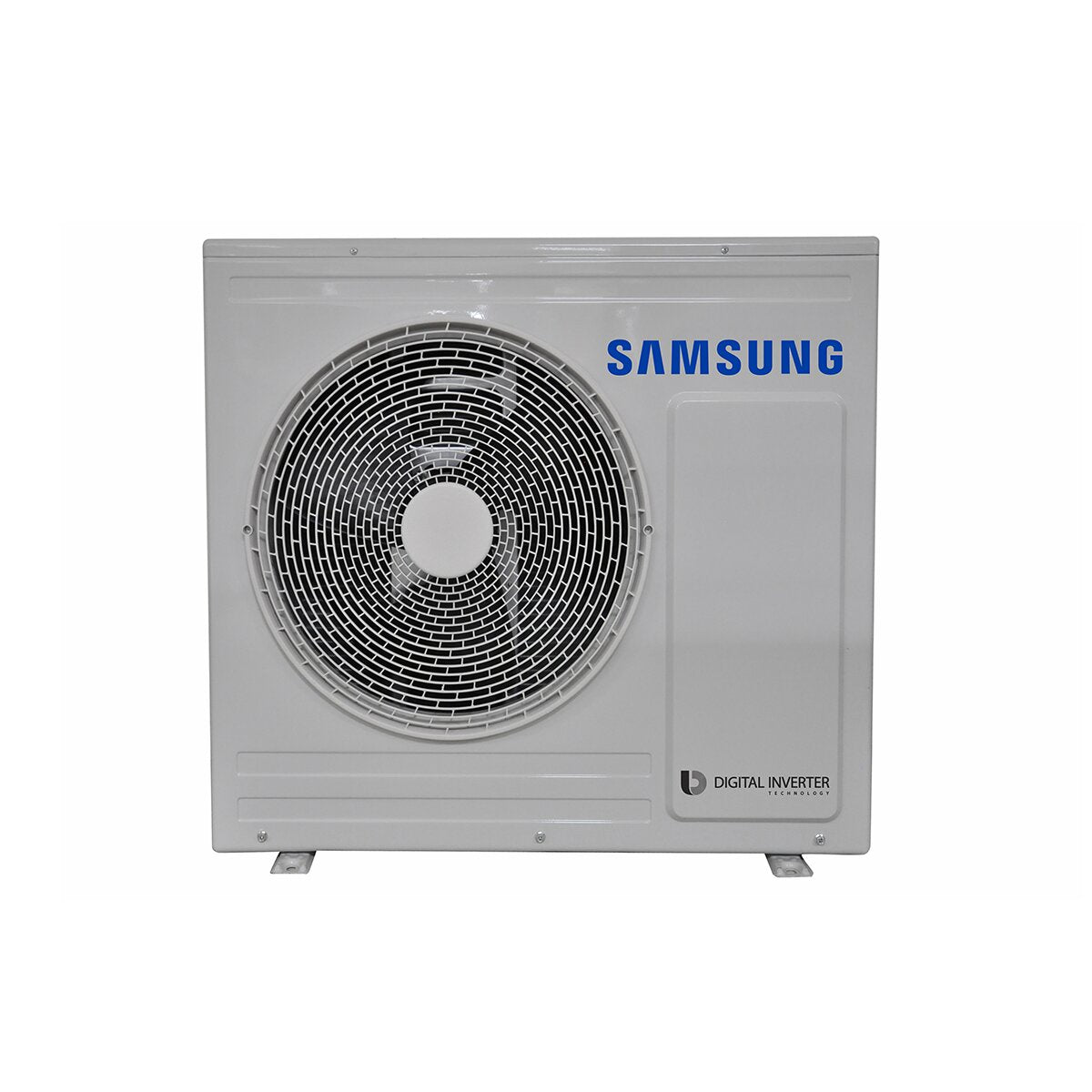

THE EXTERNAL UNIT
The external unit for air conditioners of the SAMSUNG commercial line, with Inverter technology and Heat Pump is the beating heart of the air conditioner.
The external units for commercial air conditioners are used for the Monosplit combinations of the Samsung CAC range and allow you to connect a single internal unit or, for the Twin, Triple and Quadri combinations, to connect multiple internal units using the appropriate Connection Joints.
GUARANTEED SAVINGS
The SAMSUNG outdoor unit always provides power proportionate to the real air conditioning needs of the environment in which its single indoor unit or indoor units are located. It offers high performance and great comfort both when using the air conditioner in cooling and heating. Thanks to the Inverter system, the outdoor unit allows for high energy savings and particular attention to the environment, in addition to achieving the highest Energy Classes by reducing waste to a minimum .
The Inverter Twin Rotary BLDC compressor is equipped with two rotors that can rotate in opposite directions, thus reducing the noise and vibration of the system. The Heat Pump allows you to use the air conditioner all year round, both in summer to cool and in winter to heat.
For operation it uses R32 gas which has a very low environmental impact, Samsung always focuses on environmental protection.
The extended temperature limits allow the machine to operate in cooling mode from -15°C to 50°C external and in heating mode from -20°C to 24°C.
The pipe can be installed in 4 different directions making the installation extremely flexible. Particularly resistant to weather and atmospheric agents, it can be fixed both in a suspended position and resting on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Samsung one and lasts 2 years.
WHITE SQUARE PANEL INTERNAL UNIT 4 WAY CASSETTE MINI WINDFREE SAMSUNG
This square panel (Standard 60X60 cm) is used together with the internal unit of the Samsung Mini WindFree 4-Way Cassette air conditioner.
Accessory necessary for installation, allows you to connect the edges of the box in its recess and covers all defects and installation imperfections.
With its rounded edges and triangular mesh in the centre, it completes the Cassetta 4 Vie Mini WindFree giving it even more elegance.
Samsung MWR-WG01KN Advance Wired Remote Control for Samsung Air Conditioners
The Samsung Advance wired control model MWR-WG00KN allows you to customise and programme the air conditioner in order to best manage the environmental comfort of the rooms where it is installed.
Compatible with models from the Samsung MONO, MULTI, CAC, EHS lines.
Redesigned compared to previous models, it has a square shape with rounded edges and is made of white glass with a color display; it will fit elegantly and discreetly into any environment.
It is a wired control and connects to the internal unit using the appropriate cables.
Some settable modes and features:
-
Operating modes: cooling, heating, dehumidification, ventilation;
-
Temperature and fan speed control;
-
Weekly programming and time setting;
-
Advanced features such as silent, night and energy saving modes;
-
Air purification function (Purify);
-
Error handling and reporting codes;
-
Integrated ambient temperature sensor.
-
Audible and visual alarm in case of refrigerant leak.
Further functions can be viewed in the user manual supplied with the product.
WARRANTY
The warranty is the official Samsung one and lasts 2 years.
