SFA SANICUBIC 1 WC Macerator - WASTE WATER LIFTING STATION - for toilets, bathrooms, kitchens or laundries

SFA SANICUBIC 1 WC Macerator - WASTE WATER LIFTING STATION - for toilets, bathrooms, kitchens or laundries

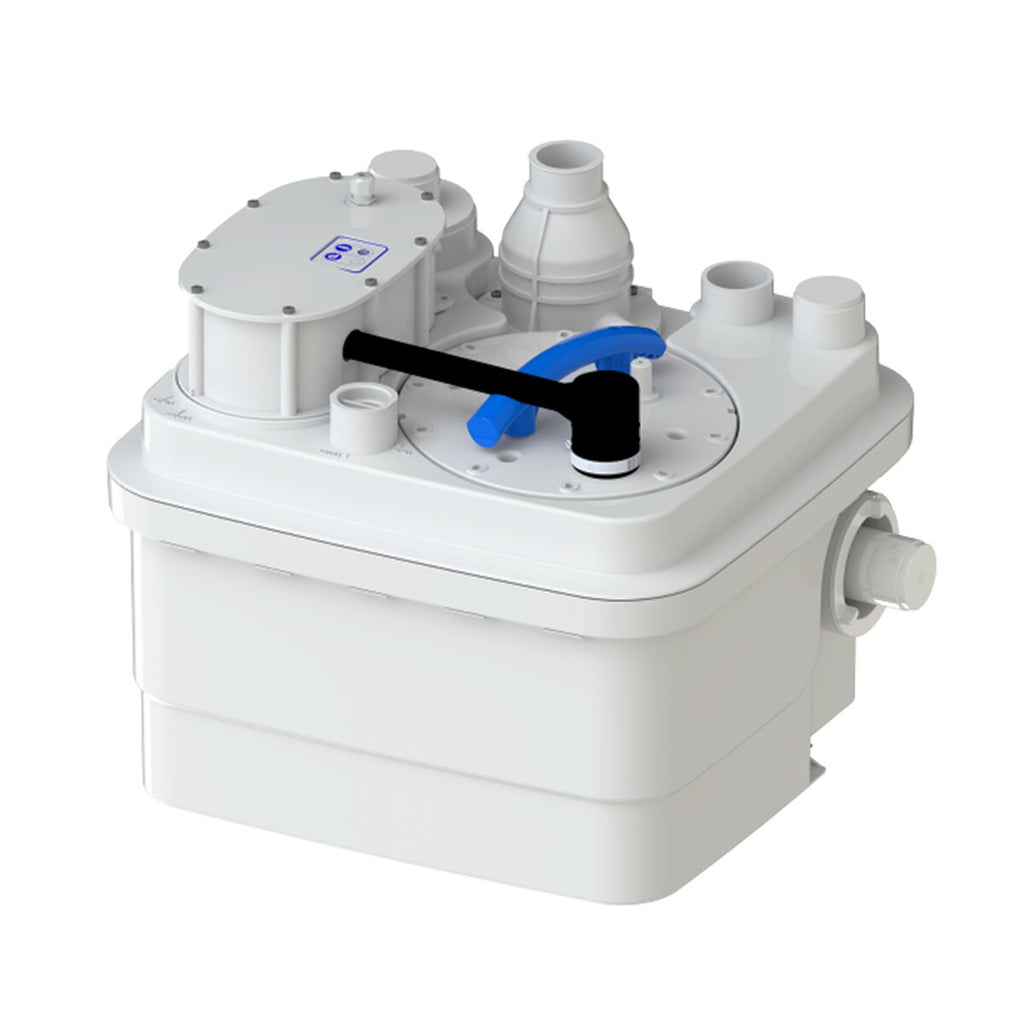

The Sanicubic 1 is an automatic wastewater lifting station designed for residential or light commercial use. It is ideal for all those situations where gravity flow to the sewer system is not possible, such as basements, garages or structures distant from the main drain stack.

Equipped with a ProX K2 system pump and a high-efficiency shredding blade , it easily handles water loaded with fecal material from toilets, showers, sinks, washing machines and dishwashers. The stainless steel shredding chamber guarantees maximum reliability and durability.

MAIN APPLICATIONS

• Private homes with bathrooms or kitchens in the basement or cellar

• Technical rooms, taverns, garages

• Offices, shops, small workshops

• Installations where gravity discharge is not possible

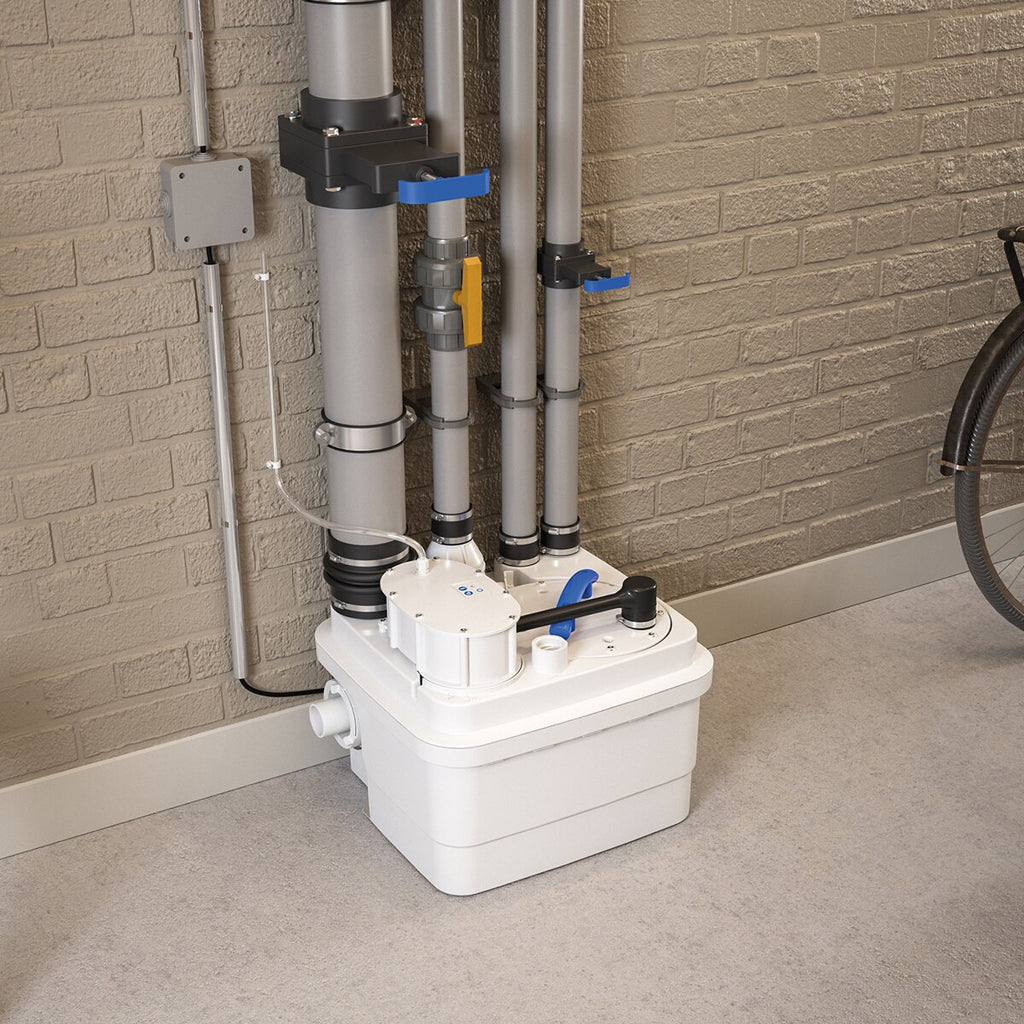

The Sanicubic 1 is installed directly on the floor, in an easily accessible point. It connects to the sanitary appliances via standard fittings and is ready to operate once connected to the power supply. The system activates automatically when the tub is filled, managing the lifting in a safe and silent way.

ADVANTAGES

• Ideal for creating bathrooms or kitchens in rooms far from the waste pipe

• Quiet and efficient operation

• Professional shredder system

• Easy installation and maintenance

• Complies with EN 12050-1

TECHNICAL FEATURES

• Number of inlets: 5 (4 lateral DN40/50/100 and 1 upper)

• Outlet diameter: DN50

• Maximum head: up to 11 m

• Maximum flow rate: 15 m³/h

• Motor power: 1,500 W

• Power supply voltage: 220–240 V – 50 Hz

• Operation type: Automatic start via pressure switch

• Tub material: High resistance polyethylene

• Built-in visual and audible alarm: Yes (included)

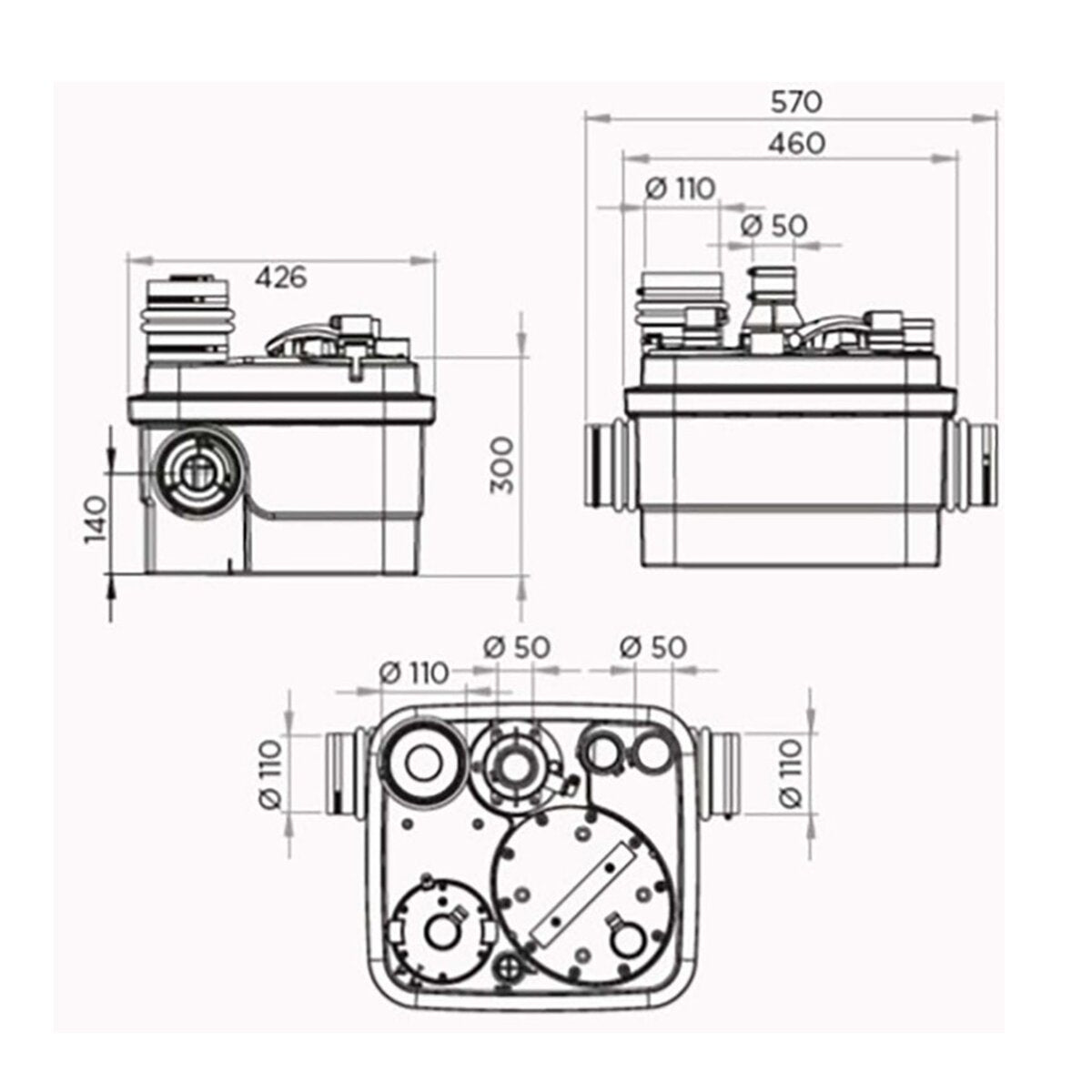

FURTHER SPECIFICATIONS AND DIMENSIONS ARE CONTAINED IN THE ATTACHED DATA SHEET.

WARRANTY

The warranty is the official SFA one and lasts 2 years.
