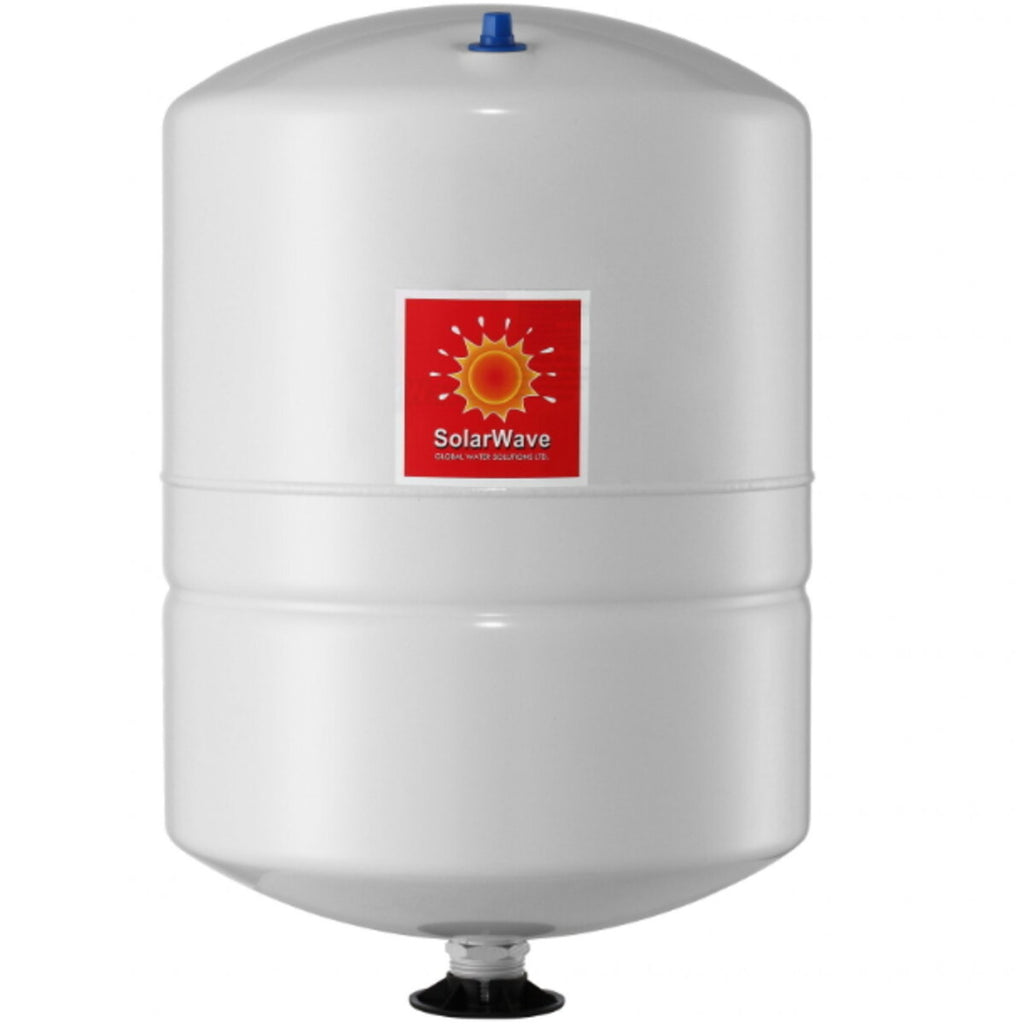

EXPANSION TANK 12 LITERS ATT. 3/4” SOLAR WAVE
The SolarWave™ SWB-12LX tank is part of Global Water Solution's extensive product range which offers a complete line of expansion vessels ideal for different applications including closed loop solar systems, solar thermal expansion hot water. SolarWave™ expansion vessels are designed to control the expansion and contraction of heat transfer fluids in solar heating systems to keep the entire system efficient and operational.
On the outside, the almond-coloured two-component polyurethane paint applied to an epidoxic base coat guarantees high resistance to atmospheric agents and durability over the years.
SolarWave™ tanks undergo individual quality tests during the manufacturing stage to ensure the structural integrity of each tank.
SolarWave ™ tanks represent, to date, the best expansion vessels for solar applications available on the market, suitable for a wide range of applications, do not require any maintenance
TECHNICAL FEATURES
Special butyl diaphragm for high temperatures
High expansion factor
Patented stainless steel connection
Two-component polyurethane varnish on an epoxy base
Air leak proof shut off valve
Precharge in the bowl: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum system temperature: 130° C / 266° F
DIMENSIONS
Height: 364 mm - Width 230 mm - Weight 2.87 kg
