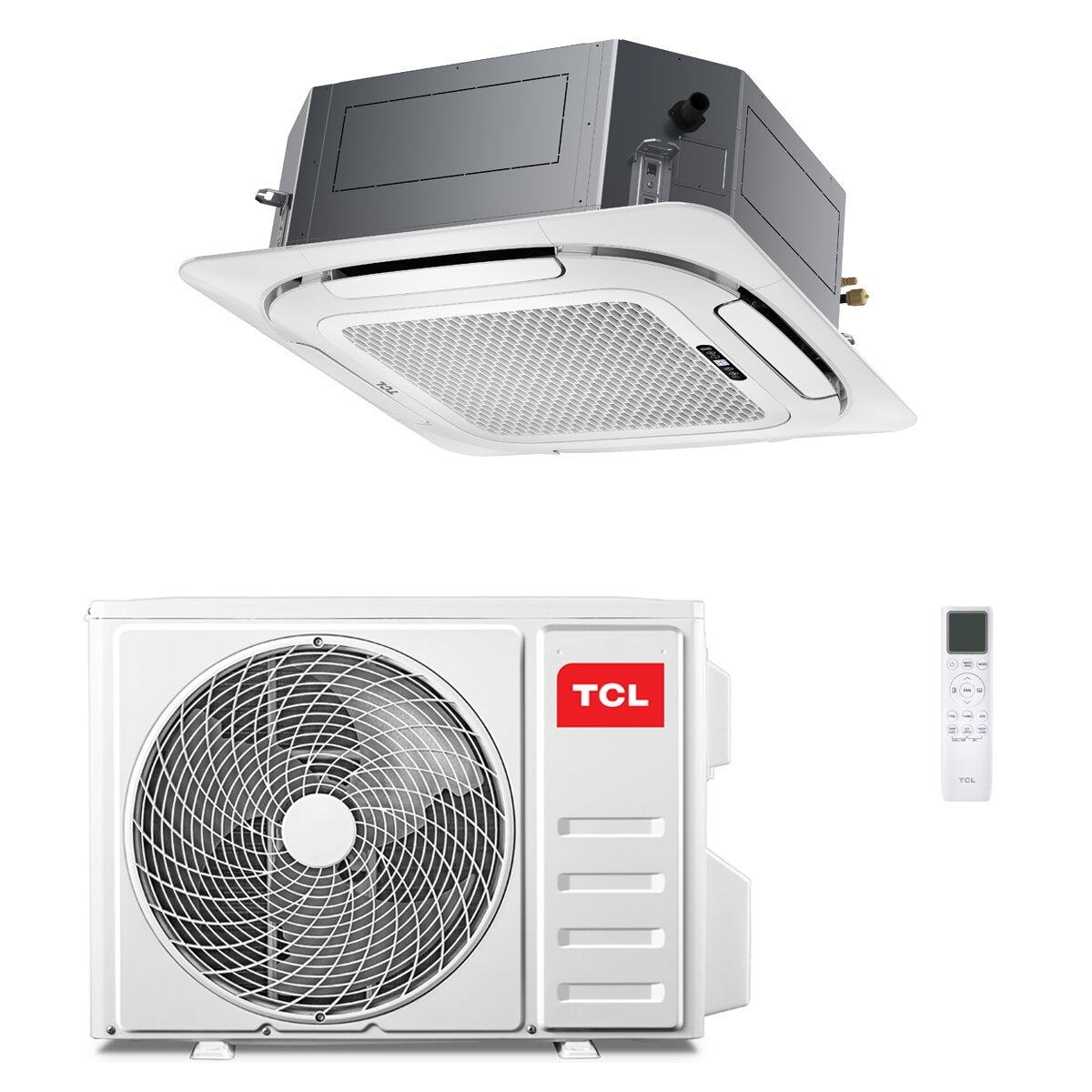

TCL Cassette 4-way Air Conditioner S Series Compact 9000 BTU R32 Inverter WiFi A++/A+

The air conditioner kit is equipped with the following indoor units:

• 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m

The TCL 4-way Cassette S Series air conditioner is designed to offer high performance, operational versatility and tailor-made comfort in medium and large environments. Thanks to its robust structure, 360° air distribution system and multiple settable modes, it represents an ideal solution for offices, showrooms, commercial activities and professional environments. Designed for ceiling installation in modular false ceilings, this unit combines high performance and constant reliability up to energy class A++/A+ for both the Compact and Standard versions .

TCL, an international brand recognized for the technological innovation and reliability of its products, offers with this line a smart solution that combines high performance and intelligent control. The range is designed to meet the comfort needs in residential and commercial spaces and consists of the 4-way Compact series (sizes 9-18000 BTU) and Standard (sizes 24-60000 BTU).

Silent, it offers incredible performance up to energy class A++/A+ cold/hot and reduces environmental impact thanks to the use of R32 gas.

DESIGN AND AIR QUALITY

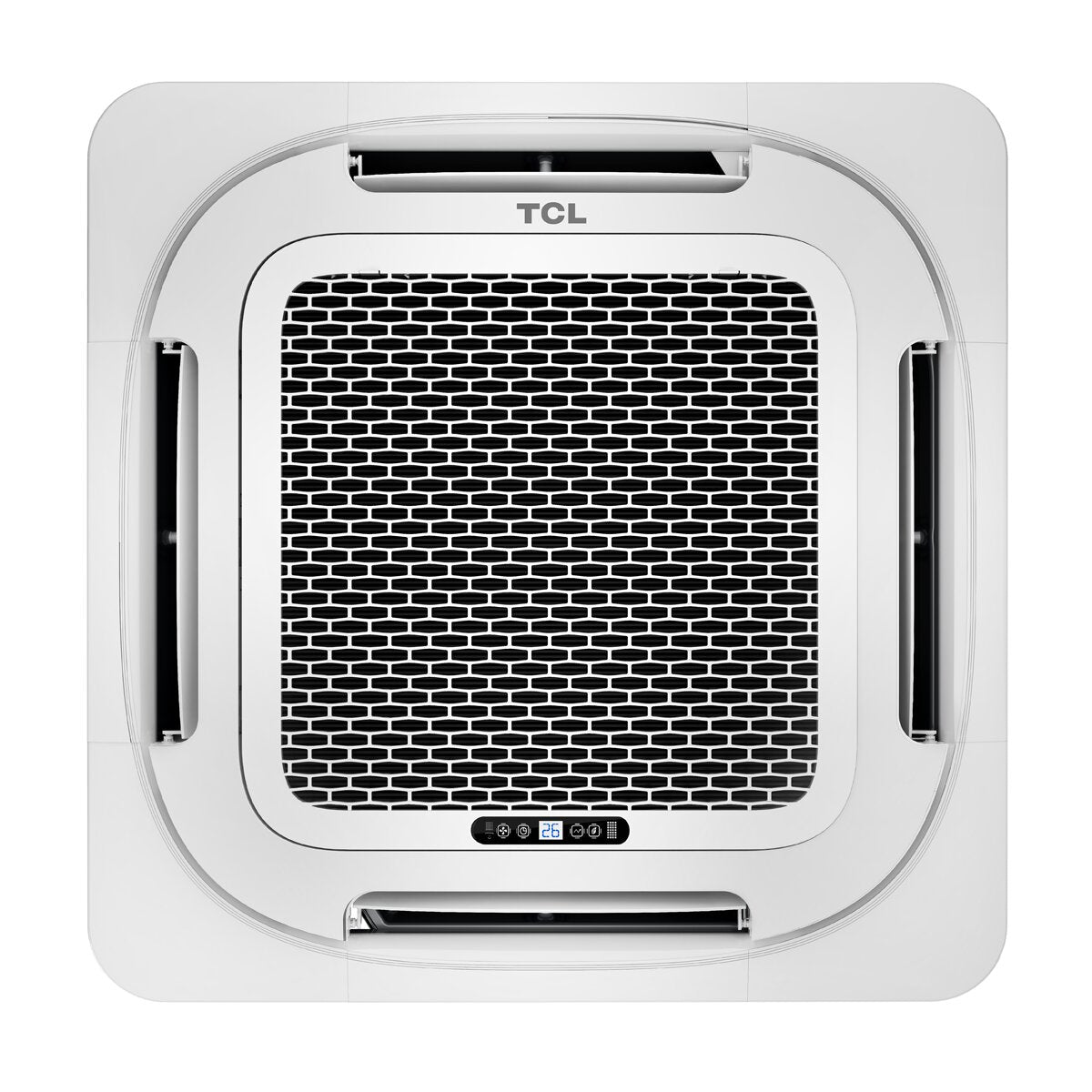

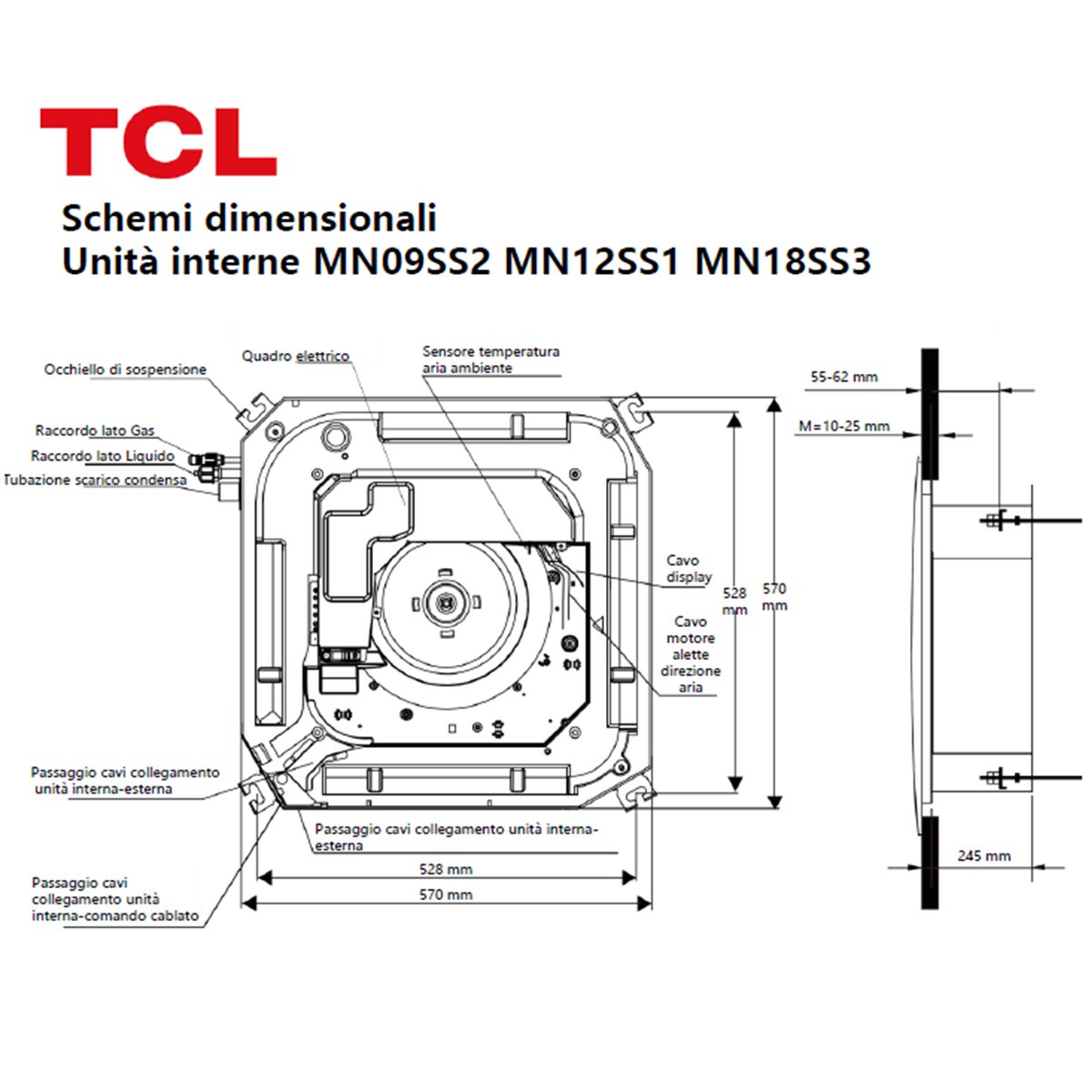

The TCL Cassette 4-way S Series indoor unit combines aesthetic minimalism and maximum functionality , making it an ideal choice for modern, professional and prestigious residential environments. Its discreet profile fits perfectly into standard false ceiling modules, maintaining a clean, linear aesthetic and without visible protrusions . The Compact series includes a 650x650 mm front panel, while for the Standard series the panel is 950x950 mm .

The elegant LED display allows you to quickly and easily view the temperature, all operating information and error codes. Both an aesthetic and functional detail that is highly appreciated.

Thanks to the 360° air flow , the air conditioned air is distributed in a balanced way in every direction: it is expelled from the 4 adjustable deflectors placed near the sides of the product and from 4 directrices that are positioned at the corners. Furthermore, on the internal units there is a dedicated duct that allows the introduction of fresh air into the intake duct to guarantee the improvement of the air quality and its healthiness.

The unit includes an easily removable and washable dust filter , which ensures simple maintenance for always optimal air quality.

TECHNOLOGY, EFFICIENCY AND COMFORT GUARANTEED

The TCL 4-way Cassette S Series air conditioner represents the perfect synthesis between compact design, intelligent technology and energy efficiency. This unit offers 360° air diffusion , thanks to a four-sided delivery system combined with automatic corner deflectors. The result is homogeneous thermal comfort, without shadow zones, with circular ventilation that embraces the entire space.

The technological heart of the system is represented by TCL's proprietary AI Inverter technology , capable of modulating the compressor power in real time. This allows the set temperature to be reached quickly , maintained stable within a precise threshold of ±0.5°C , avoiding temperature changes and a significant energy saving of up to 60% compared to traditional on/off systems. The result is optimal comfort in every season, with a significant reduction in electricity consumption and compressor wear.

It has a series of settable modes: cooling, heating, dehumidification, ventilation mode; Programmable ON/OFF timer; 4-way automatic swing function ; Automatic restart in the event of a blackout. Additional functions can be viewed in the user manual supplied with the product. Regarding the adjustment of the orientation of the air deflectors , it is specified that they can oscillate continuously or be fixed in a set position with setting memory; the oscillation range varies from 10° to 85° with respect to the horizontal plane and is differentiated between cooling and heating.

The internal unit is equipped with a condensate drain pump that allows the liquid to be lifted up to 1200 mm from the level of the tray, for greater installation flexibility.

The heat exchangers of the units are treated to offer greater corrosion resistance and longer life.

For more complex systems, the system is equipped with a ModBus RTU interface , which allows its integration into Building Management Systems (BMS) . Furthermore, it has external ON/OFF contacts , useful for interaction with window sensors, access badges or home automation control units, making it perfectly compatible with advanced control logics.

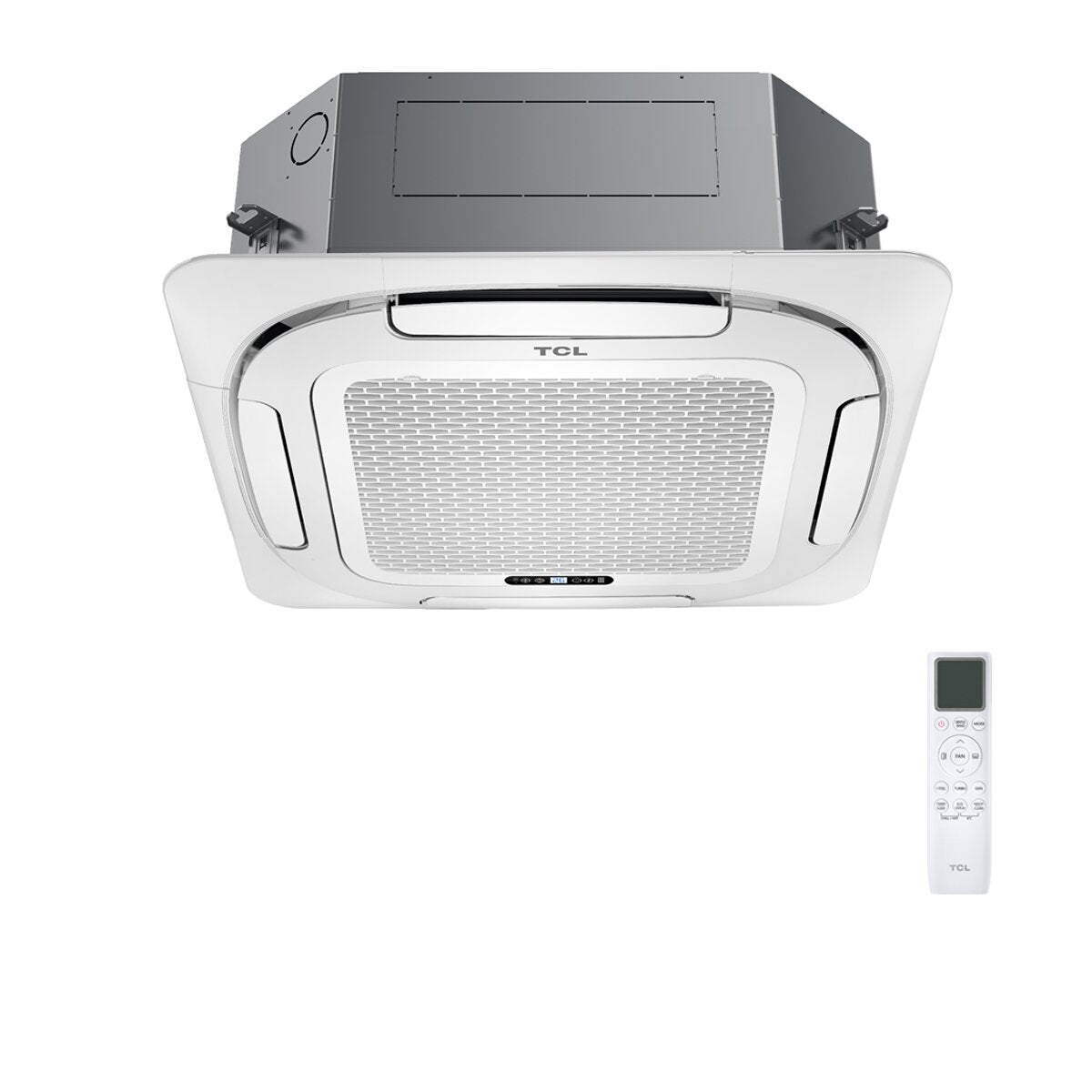

The unit can be managed via infrared remote control and/or wired wall control panel (included as standard only for the Standard version). This dual feature allows flexible management in domestic environments, offices or technical rooms.

Furthermore, the S Series 4-way Cassette is compatible with the TCL Home app, which allows remote control via smartphone thanks to the WiFi included as standard . Via the app it will be possible to turn the unit on or off, change the temperature, mode and ventilation settings, program timers and customized scenarios. Furthermore, it is compatible with voice assistants such as Google Assistant and Amazon Alexa , allowing even more immediate and integrated management in the home automation of the environments.

ACCESSORIES INCLUDED

- Remote control and wired wall control (included as standard only for the Standard version)

- Built-in WiFi.

WARRANTY

The warranty is the official TCL one and lasts 2 years.

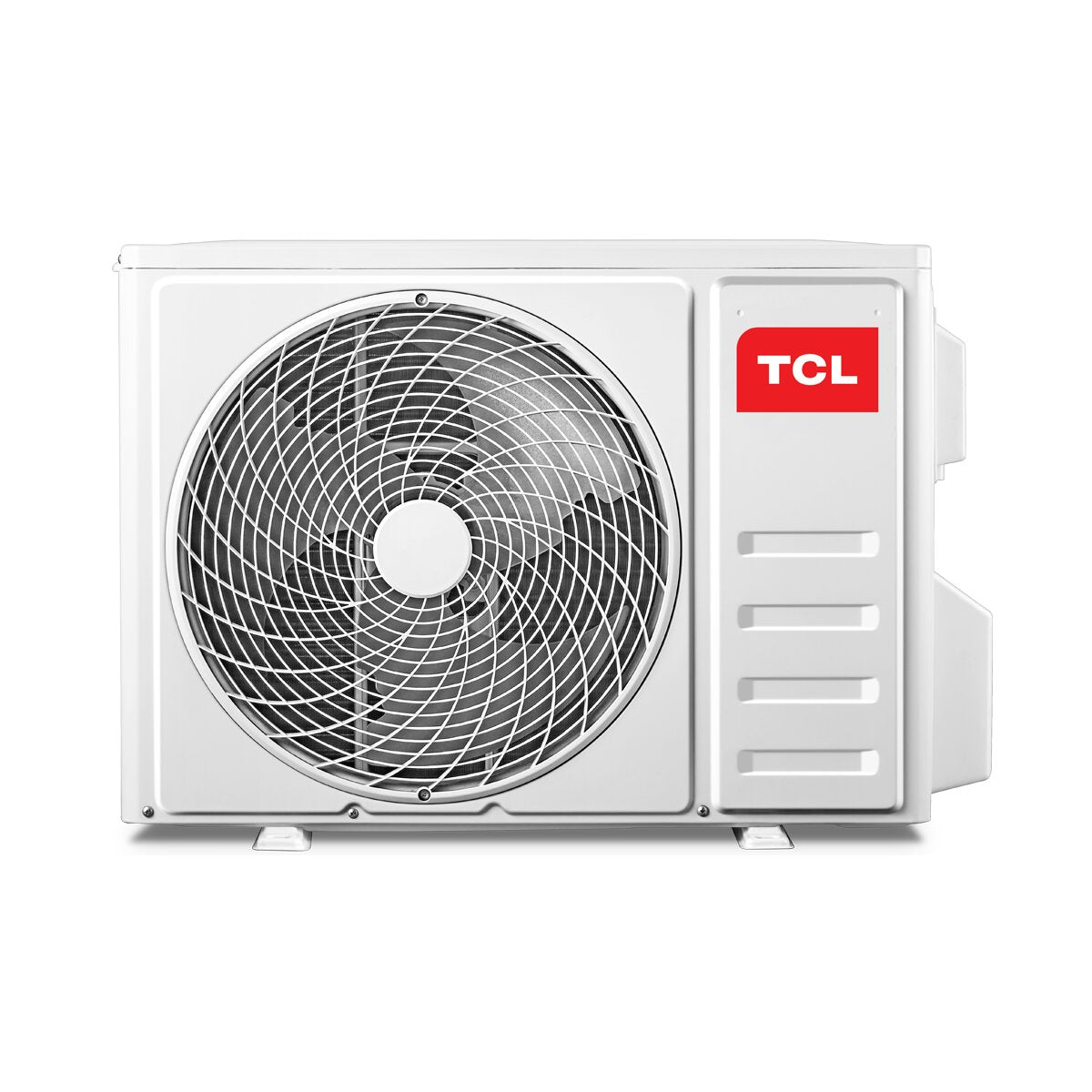

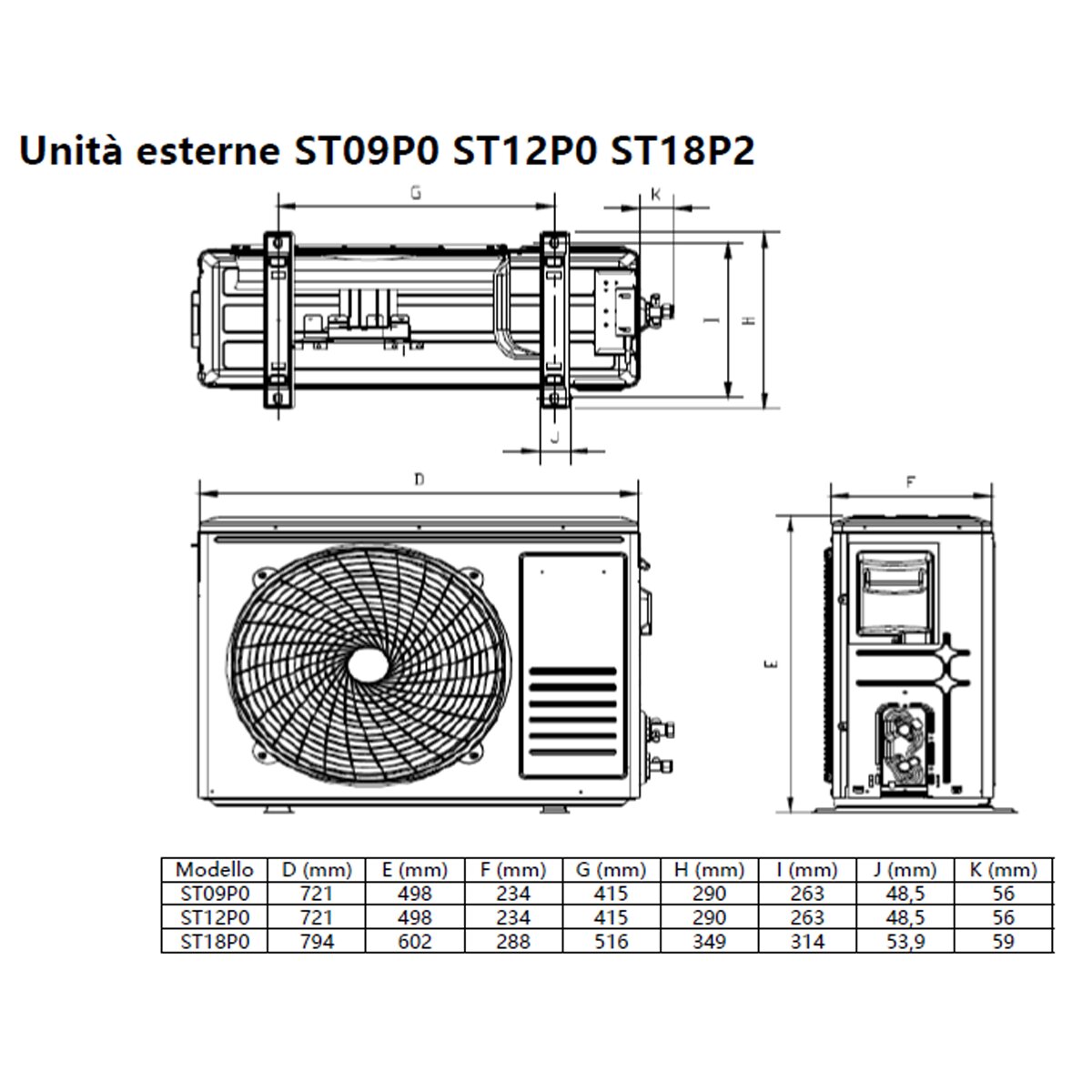

THE EXTERNAL UNIT

The external unit of TCL air conditioners is designed to offer efficiency, silence and a discreet design, easily adapting to different living contexts.

External units for monosplit allow you to connect only one internal unit and specifically the one with the power for which they are designed; in association with the appropriate internal unit, they are generally used to air condition a single room.

EFFICIENCY AND ENERGY SAVING

The external unit of the TCL air conditioner has a compact and solid design, designed to integrate discreetly into the external environment, both on walls and on balconies or roofs. The structure is made of white painted metal, resistant to atmospheric agents and designed to last over time, even in adverse weather conditions.

Inside it houses a high-frequency inverter compressor , which guarantees high performance and low consumption, capable of quickly reaching the desired temperature — 18°C in 30 seconds for cooling and 40°C in 60 seconds for heating. The large front fan , protected by a sturdy grille, is optimized to promote a powerful but silent air flow, with a low noise level.

It uses R32 refrigerant gas, which is more efficient and has a lower environmental impact than traditional refrigerants. Access to internal components is simple and functional, facilitating routine maintenance operations.

Overall, this outdoor unit combines efficiency, quietness and robustness , making it ideal for residential use without sacrificing performance or aesthetics.

WARRANTY

The warranty is the official TCL one and lasts 2 years.
