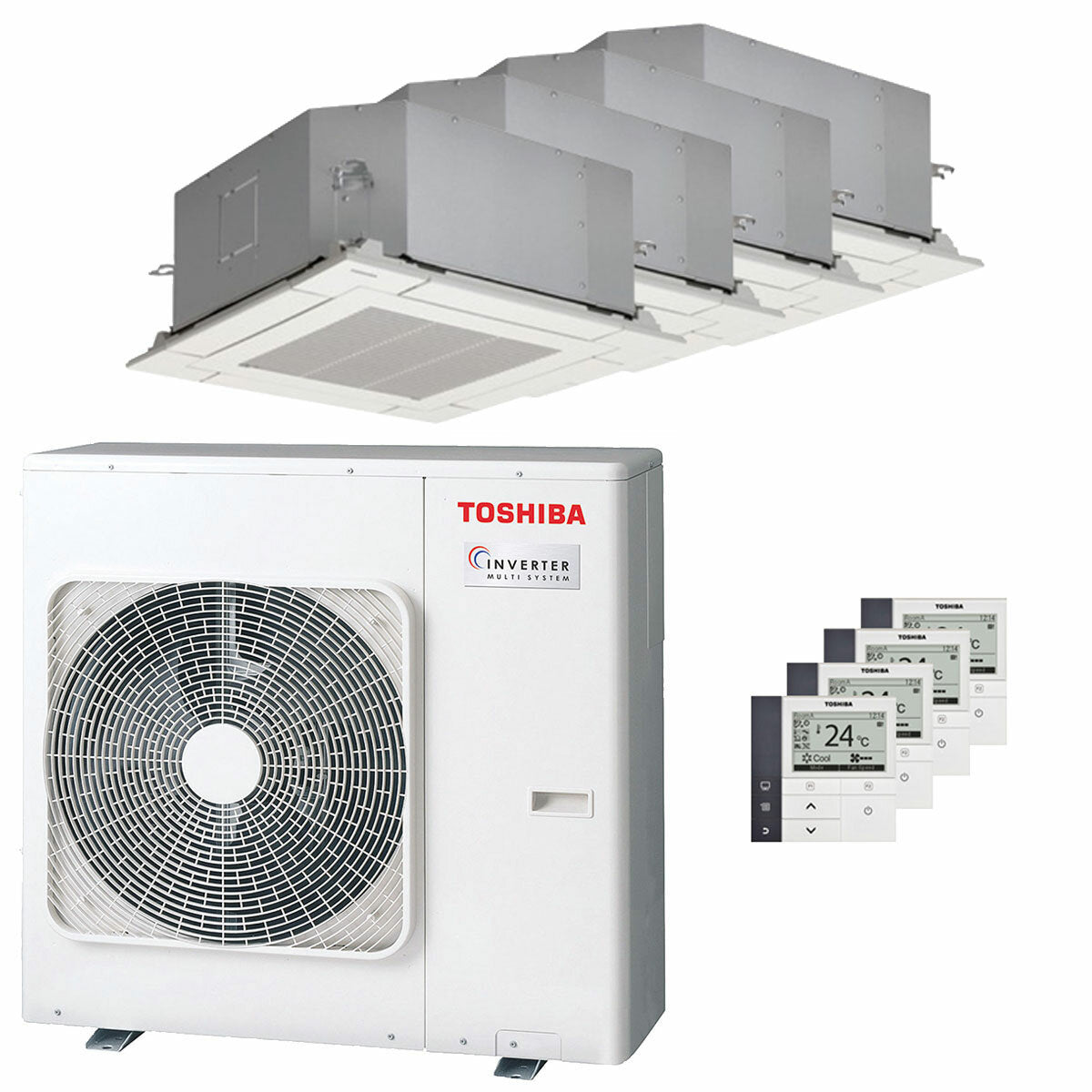

Toshiba Compact cassette U2 4-way quadri split air conditioner 9000+9000+9000+9000 BTU inverter A++ external unit 8 kW The air conditioner kit is equipped with the following indoor units:
- 4 x 9000 BTU - Ideals for rooms from 15 to 25 sqm with an average height of 2.7 m
In Toshiba's Natur32 range we find the compact U2 Multi cassette : new in functionality and design compared to the models that preceded it, it stands out for its compactness and versatility ; it is equipped with different functions that can be set for always optimal comfort and is able to offer, in combination with the multi-split inverter external units, excellent performance and high energy savings .

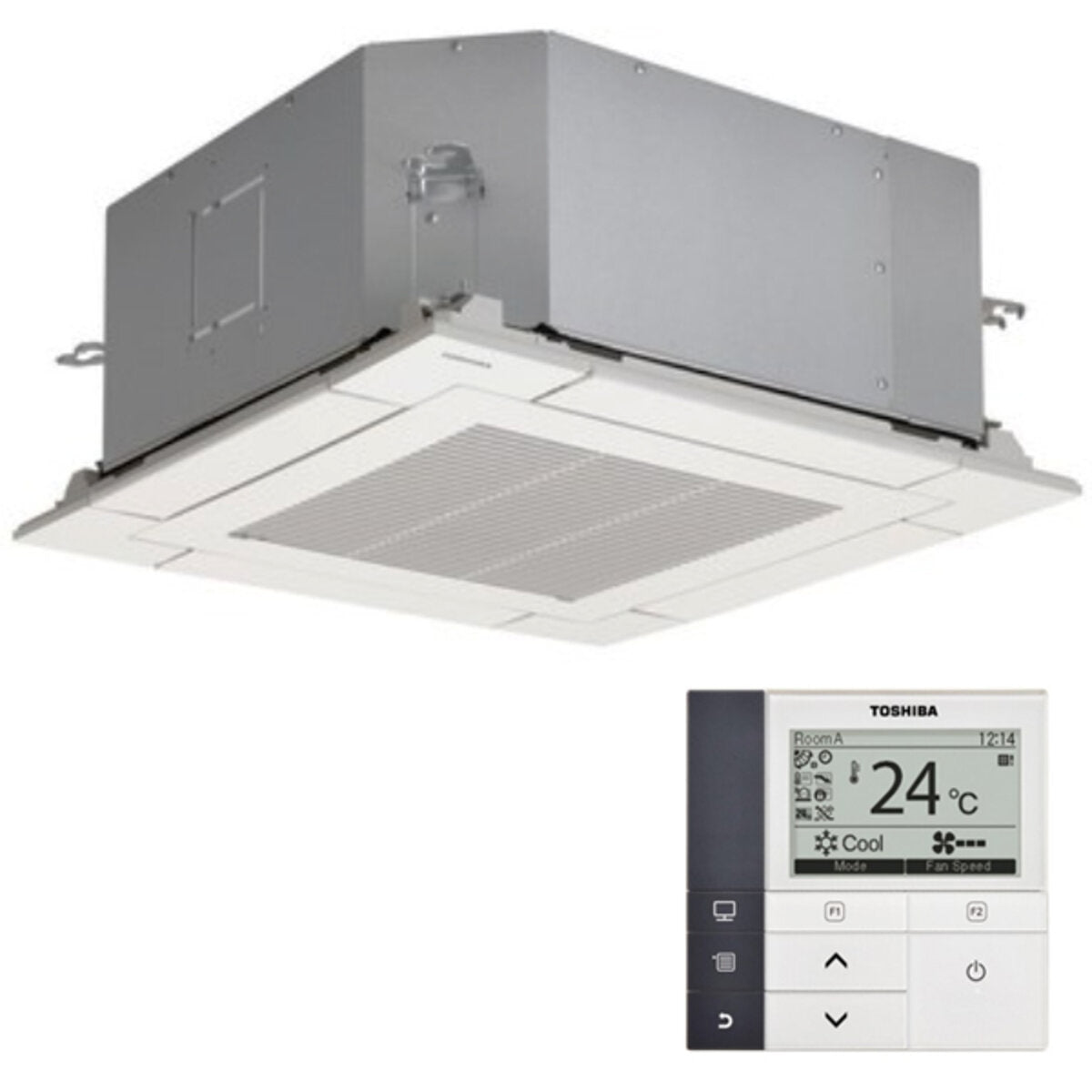

The U2 Multi compact cassette indoor unit is mounted on the ceiling, generally recessed into a false ceiling. Cassette split air conditioners offer the great advantage of not taking up space on the walls for the installation of the internal unit, furthermore the possibility of positioning the units in central points of the rooms allows for better diffusion of the conditioned air.
DESIGN
The compact U2 Multi cassette by Toshiba has a modern design characterized by squared geometries and motorized fins which, in the closed position, create four "U" cuts that elegantly frame the intake grille. It adapts to all types of furnishings and in any environment and architecture in which it is installed; particularly suitable for commercial activities, offices and hotels, it also integrates perfectly into homes. This type of internal unit has small dimensions and uses the classic 60x60 cm standard of false ceiling tiles in order to facilitate installation operations; the depth is also very reduced , only 256 mm which makes it easily installable even in the lowest false ceilings; furthermore, the intake grille , with its only 12 mm thickness , gives it further elegance and lightness.
BREATHE CLEAN AIR
The filter of the U2 Multi compact cassette removes the most common harmful agents, allowing the air conditioner to always return clean air. The filter is easily removed for cleaning. The supplied wired control signals when cleaning is necessary.
The air conditioning diffusion fins have a particular shape that prevents the accumulation of dust. The internal unit is also self-cleaning : after switching off, the fan continues to operate for up to thirty minutes to dry the heat exchange coil and eliminate any residual humidity still present.
PERFECT CLIMATE AND RELAXATION
The U2 Multi compact cassette internal unit offers a perfect climate and high comfort thanks to the air delivery from above on all four sides and the motorized fins which can also be adjusted individually . With five different fan speeds that can be set, the climate of the rooms in which the Cassettes are installed will always be the desired one. These internal units are equipped with a condensate drain pump with a head of 850 mm.
Through an elegant and practical wired control, supplied with each internal unit, it is possible to manage, in addition to the classic heat, cold and dehumidification settings, multiple functions: the QUIET mode, to reduce the speed of the already very silent fan to a minimum (only 30 dB(A) for this size); ECO mode to automatically manage the temperature based on the external environment temperature; the convenient PRESET function which allows you to store the user's favorite settings and recall them automatically; the HI POWER function which allows you to quickly cool or heat at maximum power. Furthermore, the convenient TIMER will ensure that you can set up to eight daily operating intervals for each day of the week.
The Toshiba U2 Multi compact cassette also offers the possibility of being controlled remotely via smartphone or tablet by purchasing the WiFi Control Kit with infrared receiver separately (code IS-IR-WIFI-1-RBC-AX32UM(W)-E) which will make them manageable through the appropriate Toshiba App.
ACCESSORIES SUPPLIED AS STANDARD
- Square false ceiling panel (Code RBC-UM21PG(W)-E)
- Wired control (Code RB-RWS21-E).
WARRANTY
The warranty is the official Toshiba one and lasts 24 months.

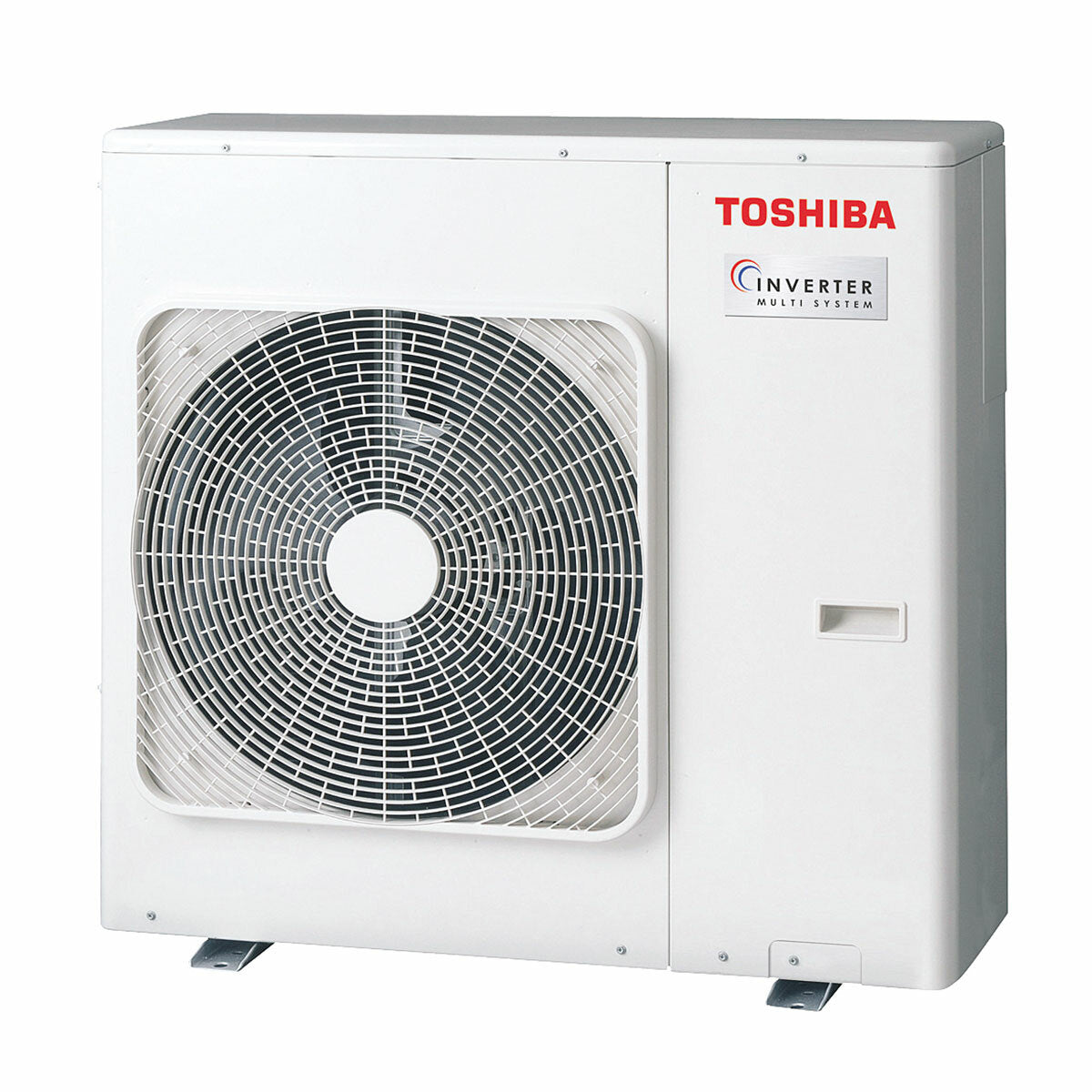

THE OUTDOOR UNIT
The Toshiba G3 series multisplit outdoor units are part of the NatuR32 family of the Japanese brand , particularly innovative and very attentive to the environment thanks to the adoption of R32 gas with low environmental impact. In fact, R32 gas has a GWP - Global Warming Potential or Impact on Global Warming, equal to a third compared to that of its predecessor R410A.
The two-connection external unit presented here has inverter and heat pump technology for both cooling and heating operation and represents the heart of the air conditioner.
The external units for multisplits offer the great advantage of air conditioning multiple rooms using a single external unit and one internal unit for each room ; they are particularly recommended where there is little space for the installation of multiple external units or when you want to reduce the visual impact of this air conditioning component on the facade of the property unit to be air conditioned.
This external unit allows you to connect and power four Toshiba internal units of any series, even of different powers; the internal units will always operate independently and each will be equipped with its own control.
GUARANTEED SAVINGS
The Toshiba G3 multisplit outdoor unit always provides a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment that needs to be air conditioned. This new model offers high performance and great comfort in both cooling and heating. Thanks to the DC Hybrid Inverter system, the external unit allows for high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes, up to A++ for cooling and A+ for heating, and reduces waste to a minimum . The efficient Twin Rotary compressor allows further savings, as well as guaranteed well-being, thanks to the maintenance of a constant temperature without fluctuations . It also boasts unparalleled silence, fully respecting your own sleep and that of others, as it is also equipped with the Quiet mode which further lowers the sound pressure level of the unit with a simple touch on the remote control. The innovative construction technology of the compressor allows for simplified maintenance and makes it particularly robust, which benefits its durability over the years.
Particularly resistant to bad weather and atmospheric agents, the G3 external unit can be fixed either in a suspended position or placed on the floor thanks to the supports that can be purchased separately.
WARRANTY
The warranty is the official Toshiba one and lasts 2 years.

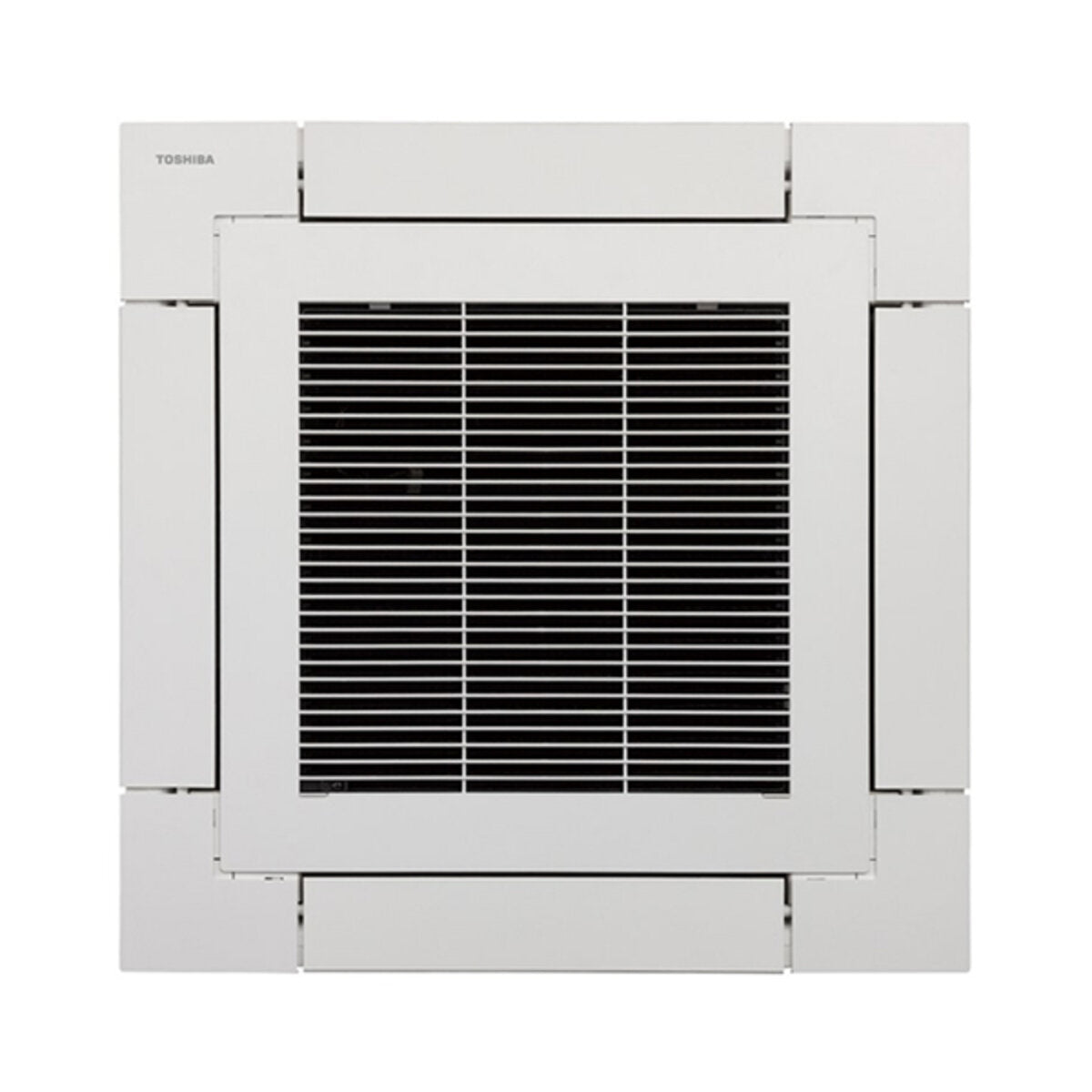

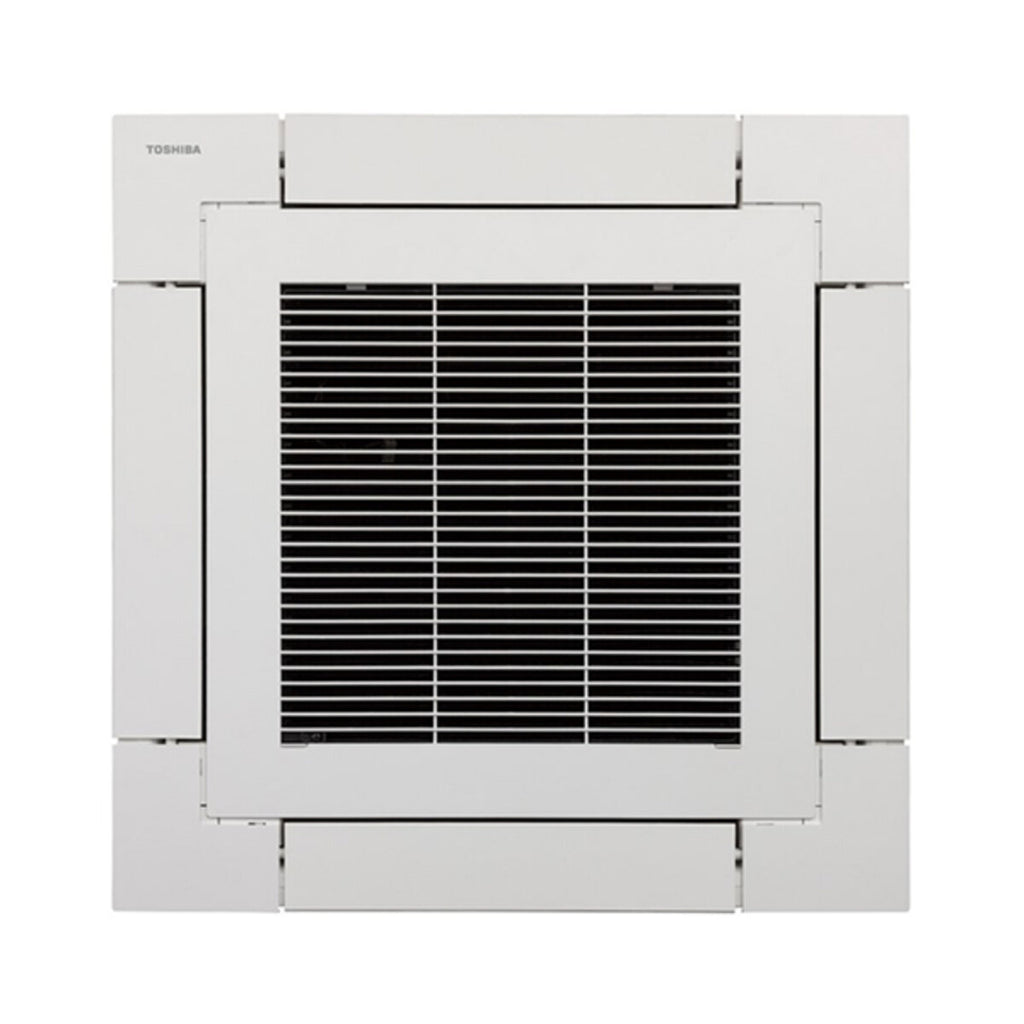

WHITE SQUARE PANEL INDOOR UNIT COMPACT 4-WAY CASSETTE TOSHIBA
The square panel shown here is used in conjunction with the indoor units of Toshiba 's 4-way compact cassette air conditioners.
It allows the edges of the cistern to be joined in the installation recess and covers all the defects and imperfections of the recess.
With its geometric and minimal design and the “U” cuts designed by the motorized flaps in the closed position, it elegantly completes the box; the thickness of only 12 mm means that the cassette integrates with the utmost discretion in any environment.

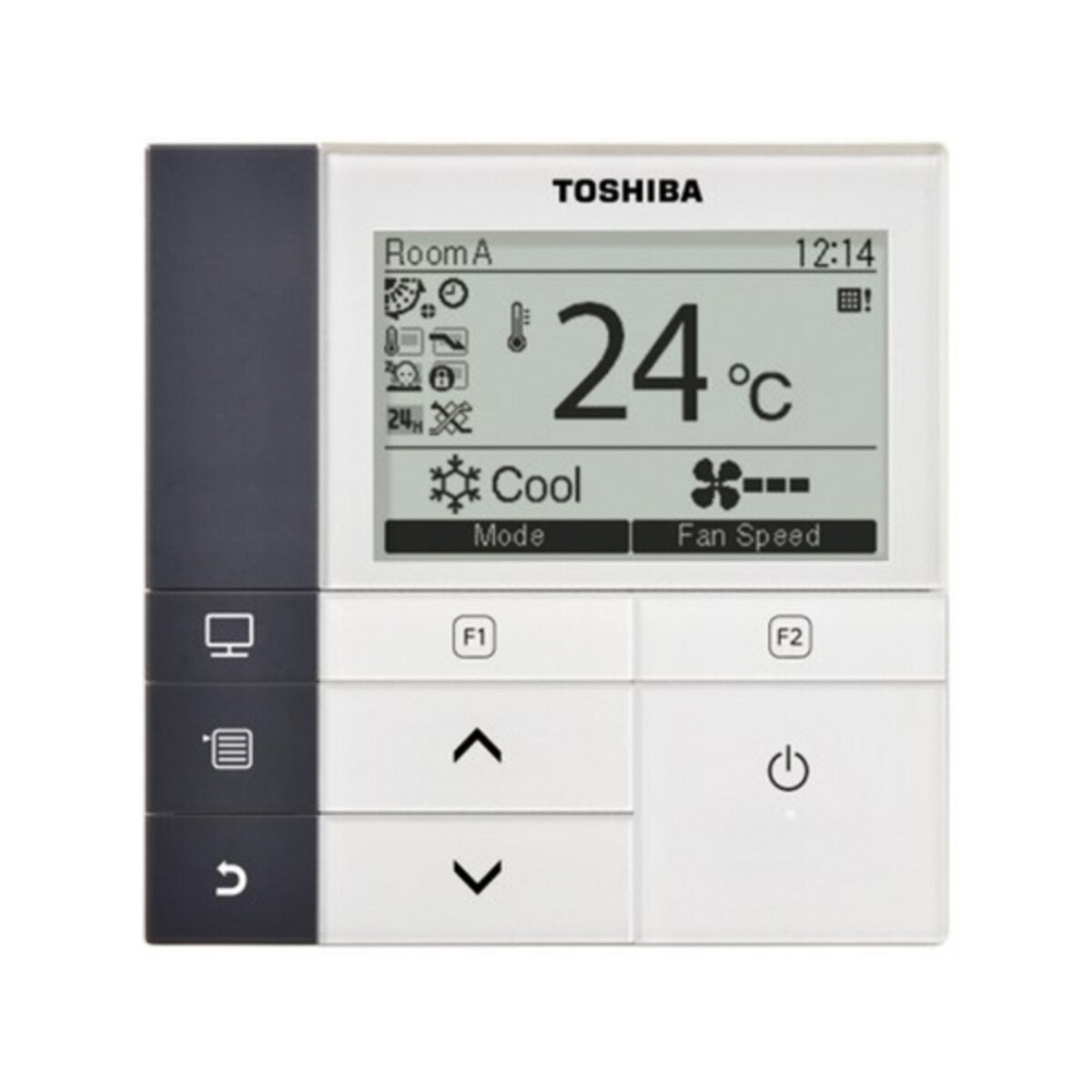

RB-RWS21-E WIRE CONTROL FOR TOSHIBA DUCTABLE INDOOR UNITS AND RESIDENTIAL MULTISPLIT CASSETTES
The Toshiba wired control model RB-RWS21-E is a wired local control and allows you to customize and program the internal unit to which it is connected in order to best manage the environmental comfort of the rooms.
It allows you to control all the functions offered by the ducted and cassette internal units of the Toshiba multi-split residential line .
It has a modern, linear and clean design and elegantly adapts to all types of environments.
It has numerous control functions . It allows you to control the switching on and off, the temperature, the fan speed, the air flow and the direction, even single, of the motorized flaps of the cassettes; QUIET mode and ECO mode, PRESET and HI-POWER functions; furthermore, to set, through the TIMER, up to eight different daily operating intervals for each day of the week. Indicates when the indoor unit filter needs cleaning. It offers the possibility of viewing all the information on the operation and setting the HOLIDAY function for the days when you do not want to set the timer. The control is equipped with a built-in temperature sensor which constantly detects the temperature of the environment in which it is located. It is also possible to set the keyboard lock.
Its LCD display is large and backlit, making it always easy to read in any ambient brightness situation. Furthermore, with its large function keys, use is simple and intuitive even for less experienced users.
Attention! It is NOT possible to manage two or more units with a single wired control, it will therefore be necessary to purchase a control for each internal unit.
WARRANTY
The warranty is the official Toshiba one and lasts 24 months.
