Toshiba Haori dual split air conditioner 9000+12000 BTU inverter A++ wifi outdoor unit 5.2 kW





Characteristics
Toshiba Haori dual split 9000+12000 BTU inverter A++ wifi
Description

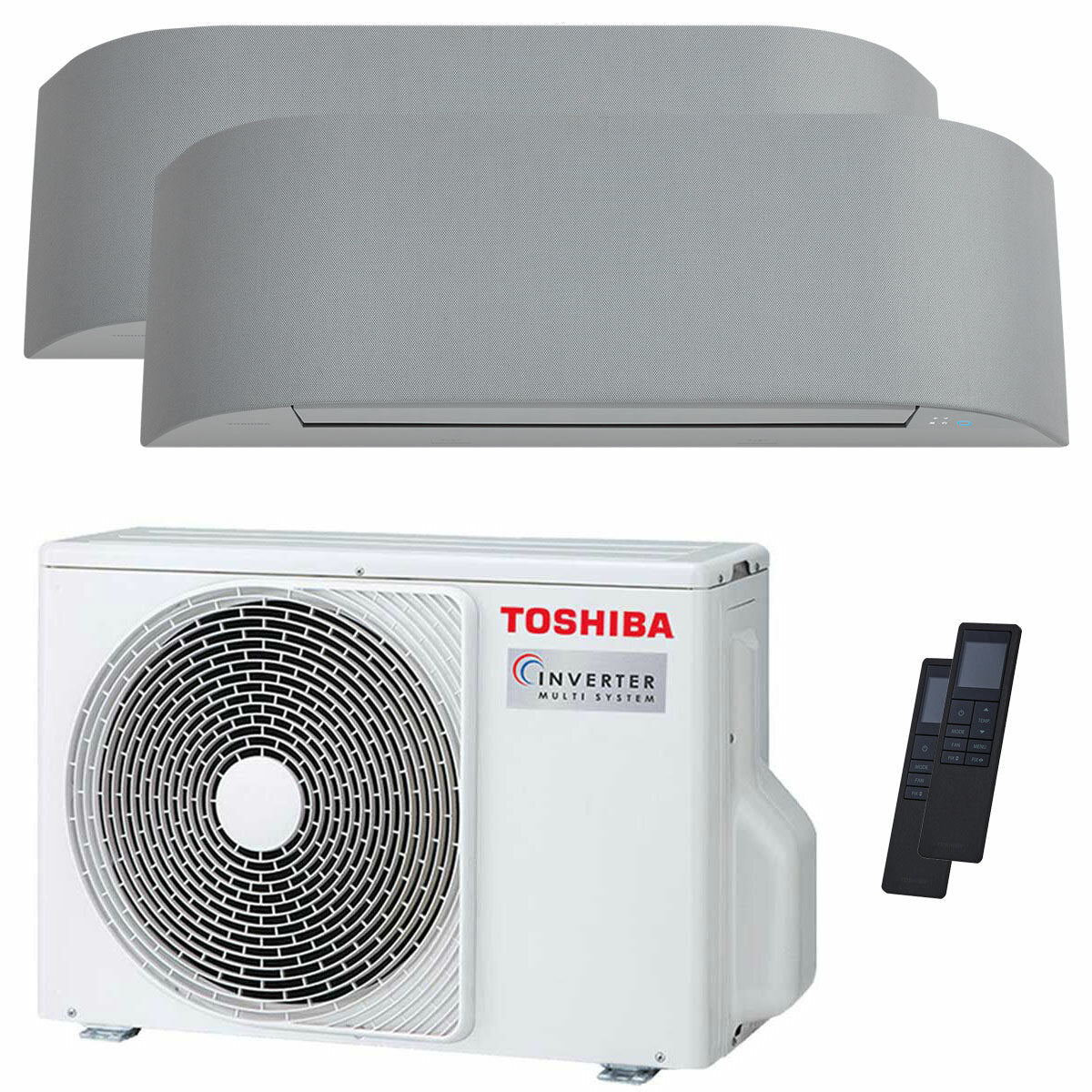

The air conditioner kit is equipped with the following indoor units:
- 1 x 9000 BTU - Ideal for rooms from 15 to 25 sqm with an average height of 2.7 m
- 1 x 12000 BTU - Ideal for rooms from 25 to 40 sqm with an average height of 2.7 m

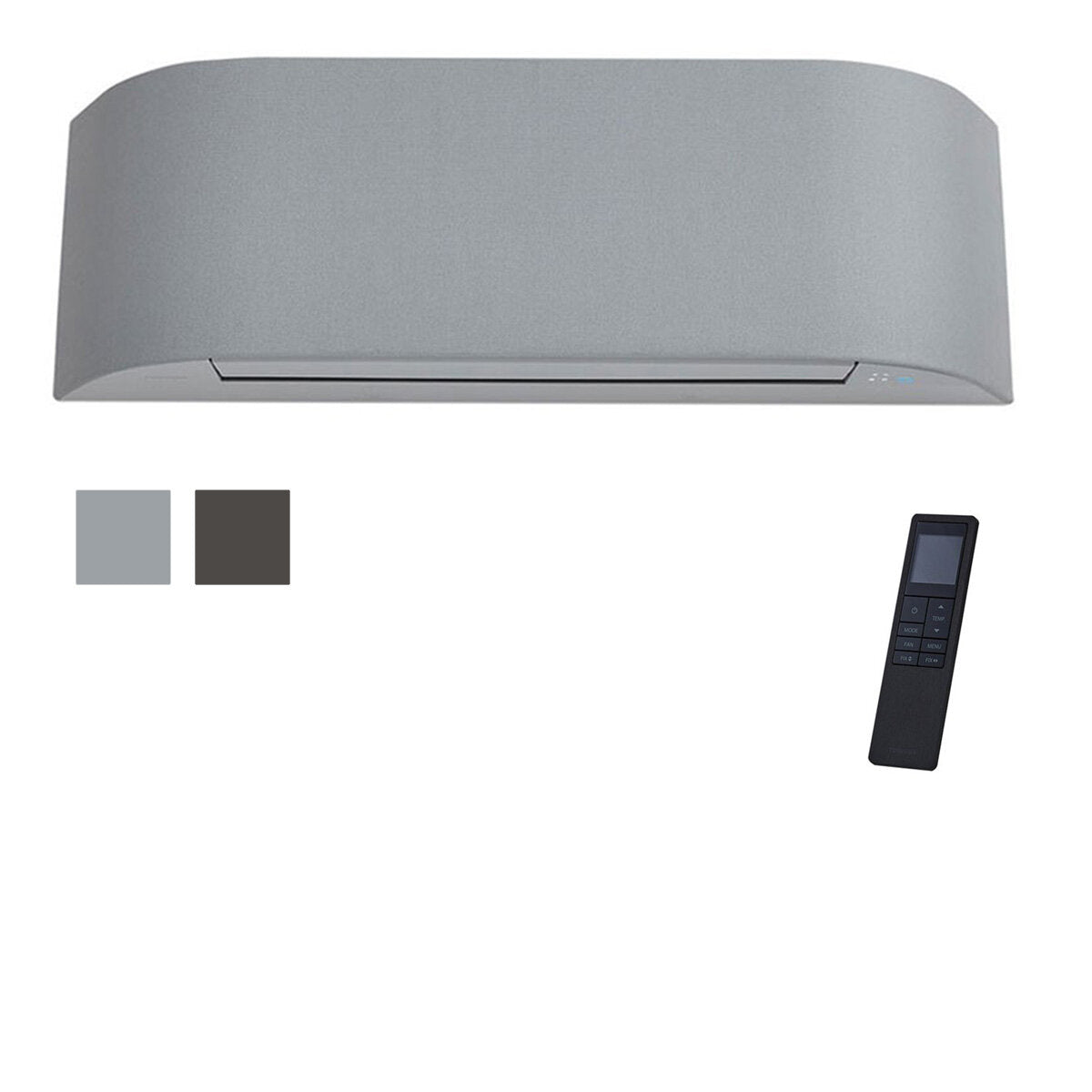

Toshiba Haori 9000 btu air conditioner in fabric with light gray and dark gray colors included in the package.
The Toshiba Haori air conditioner consists of:
THE INDOOR UNIT
9,000 BTU - Ideal for rooms from 15 to 25 sq m with an average height of 2.7 m
The HAORI air conditioner is the new expression of design in heating and cooling systems, with high performance: class A +++, SEER 8.6 and SCOP 5.1
HAORI features extraordinary aesthetics , first-class efficiency, great silence and high air quality for residential applications
The new HAORI family is an elegant piece of furniture: something no longer to hide but to highlight thanks to the light and dark gray fabric upholstery included in the kit.
Regardless of the style of the room, whether it is modern, lively, casual, luxurious, chic or retro, there is a design by HAORI that makes it even more pleasant. With its slim body and its unique shape, this innovative air conditioning unit is characterized by a fabric covering that creates the perfect combination with the other fabrics in the room such as those of the sofas, carpets, curtains, armchairs and blankets, for a cozy and comfortable atmosphere.
Toshiba's patented concept makes HAORI easy to dress up with the most suitable suit; simply unroll the fabric in the desired pattern and attach it to the front panel to create a piece of furniture that will become the center of attention. What we like about HAORI is its ability to integrate nicely into the environment or, if necessary, to blend in. Interior designers and homeowners can be inspired by its unique style. Furthermore, if the room is renovated, HAORI can change clothes at any time. Just choose or create a new fabric to integrate it with the new aesthetic of the environment.
HAORI is very quiet: Indoor Unit, with the QUIET function up to only 19 dB (A), at the limits of audibility, Outdoor Unit, 44 dB (A) and up to only 37 dB (A) with the SILENT function, can be activated from APP or remote control.
Air Quality , HAORI has two tools to create a healthy environment and to reduce exposure to fine atmospheric particles, which can carry bacteria and viruses. The first is the Ultra-Pure PM2.5 Filter , which captures up to 94% of fine particles with a diameter greater than 2.5 micrometers, the second is the Plasma Ionizer that captures and neutralizes contaminated particles of micrometer size (viruses and bacteria).
The High Air Quality also thanks to the self-cleaning “Magic Coil” battery.
HADA Care , the innovative air flow distribution system inside the room, protects the moisture in the skin.
The shape and the correct position of the fin generates an indirect flow, which circulates the air in the upper part of the room, to make the temperature homogeneous and increase the comfort levels at any time, adapting the speed of the compressor to the actual request .
The integrated Wi-Fi allows the control of HAORI through the "Toshiba Home AC Control" APP , which includes weekly programming and also energy monitoring and compatibility with Google's Home Assistant and Alexa's voice recognition systems. Amazon .
The HAORI indoor unit can be mounted quickly and easily on any wall thanks to an optimized installation system. The indoor units are compatible with both monosplit and multisplit outdoor units.
The HAORI remote control , also an elegant piece of furniture, offers multiple control functions, such as the 3D AIRFLOW function which, with the independent motorized louvers, allows you to easily direct the air flow in any direction. the power selection and the ECO function to reduce energy costs, the COMFORT SLEEP function to optimize the room temperature during the night and the HIGH-POWER function to quickly heat or cool the rooms MAGNETIC support for REMOTE CONTROL Inserted in all units to facilitate wall installation.
The technology with proprietary Rotary compressors with R32 refrigerant and driven by a vector inverter allows HAORI to modulate the heating or cooling power to the actual need with minimum consumption, thus obtaining up to the energy performance class A +++ and with considerable efficiencies: 8.6 (seasonal energy efficiency in cooling) and SCOP of 5.1 (seasonal energy efficiency in cooling).
Features
- Integrated WI-FI
- DC Hybrid Inverter (PAM + PWM)
- HADA Care Flow: intelligent airflow
- 3D motorized flaps
- Self-cleaning Magic Coil Exchanger
- Operating mode (cooling / heating) signaled by different colored LEDs
- Remote control functions: Quiet, Silent, Comfort Sleep button
- Fireplace function: to spread the heat in the environment in an optimal way
- Power limiter functions (100% - 75% - 50%)
- Compatible in multisplit combination (B-code version)
- Wide operating spectrum: down to –15 ° C / + 46 ° C in cooling; down to –15 ° C / + 24 ° C in heating
- Google Home and Amazon Alexa compatible
DIMENSIONS
Width: 987 mm - Height: 330 mm - Depth: 210 mm
Weight: 11 kg
ACCESSORIES SUPPLIED AS STANDARD
- Remote controller
WARRANTY
The warranty is the Official Toshiba Italia one and has a duration of 2 years.

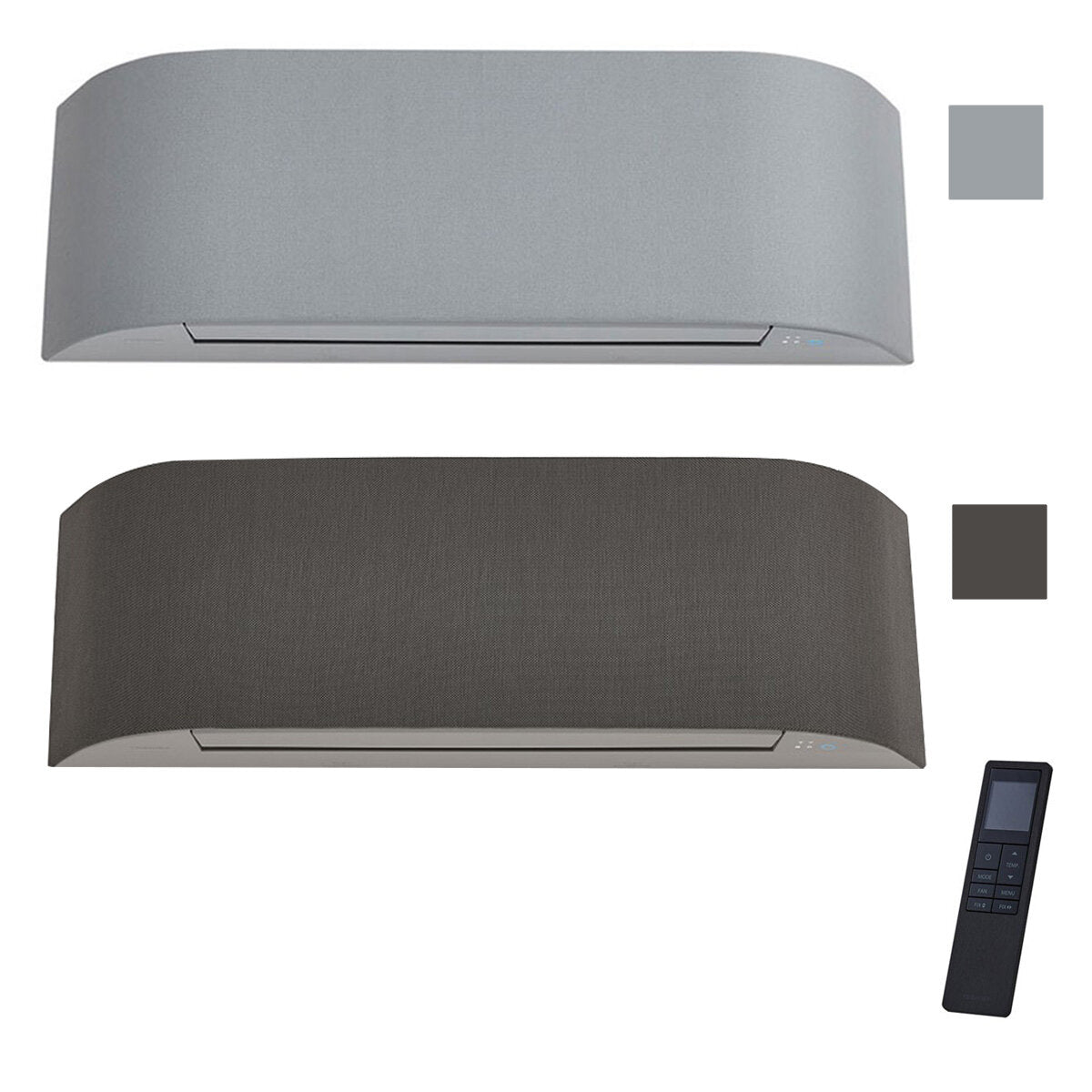

Toshiba Haori 12000 btu air conditioner in fabric with light gray and dark gray colors included in the package.
The Toshiba Haori air conditioner consists of:
THE INDOOR UNIT
12,000 BTU - Ideal for rooms from 25 to 40 square meters with an average height of 2.7 m
The HAORI air conditioner is the new expression of design in heating and cooling systems, with high performance: class A +++, SEER 8,6 and SCOP 5,1
HAORI features extraordinary aesthetics , first-class efficiency, great silence and high air quality for residential applications
The new HAORI family is an elegant piece of furniture: something no longer to hide but to highlight thanks to the light and dark gray fabric upholstery included in the kit.
Regardless of the style of the room, whether it is modern, lively, casual, luxurious, chic or retro, there is a design by HAORI that makes it even more pleasant. With its slim body and its unique shape, this innovative air conditioning unit is characterized by a fabric covering that creates the perfect combination with the other fabrics in the room such as those of the sofas, carpets, curtains, armchairs and blankets, for a cozy and comfortable atmosphere.
Toshiba's patented concept makes HAORI easy to dress up with the most suitable suit; simply unroll the fabric in the desired pattern and attach it to the front panel to create a piece of furniture that will become the center of attention. What we like about HAORI is its ability to integrate nicely into the environment or, if necessary, to blend in. Interior designers and homeowners can be inspired by its unique style. Furthermore, if the room is renovated, HAORI can change clothes at any time. Just choose or create a new fabric to integrate it with the new aesthetic of the environment.
HAORI is very quiet: Indoor Unit, with the QUIET function up to only 19 dB (A), at the limits of audibility, Outdoor Unit, 44 dB (A) and up to only 37 dB (A) with the SILENT function, can be activated from APP or remote control.
Air Quality , HAORI has two tools to create a healthy environment and to reduce exposure to fine atmospheric particles, which can carry bacteria and viruses. The first is the Ultra-Pure PM2.5 Filter , which captures up to 94% of fine particles with a diameter greater than 2.5 micrometers, the second is the Plasma Ionizer that captures and neutralizes contaminated particles of micrometer size (viruses and bacteria).
The High Air Quality also thanks to the self-cleaning “Magic Coil” battery.
HADA Care , the innovative air flow distribution system inside the room, protects the moisture in the skin.
The shape and the correct position of the fin generates an indirect flow, which circulates the air in the upper part of the room, to make the temperature homogeneous and increase the comfort levels at any time, adapting the speed of the compressor to the actual request .
The integrated Wi-Fi allows the control of HAORI through the "Toshiba Home AC Control" APP , which includes weekly programming and also energy monitoring and compatibility with Google's Home Assistant and Alexa's voice recognition systems. Amazon .
The HAORI indoor unit can be mounted quickly and easily on any wall thanks to an optimized installation system. The indoor units are compatible with both monosplit and multisplit outdoor units.
The HAORI remote control , also an elegant piece of furniture, offers multiple control functions, such as the 3D AIRFLOW function which, with the independent motorized louvers, allows you to easily direct the air flow in any direction. the power selection and the ECO function to reduce energy costs, the COMFORT SLEEP function to optimize the room temperature during the night and the HIGH-POWER function to quickly heat or cool the rooms MAGNETIC support for REMOTE CONTROL Inserted in all units to facilitate wall installation.
The technology with proprietary Rotary compressors with R32 refrigerant and driven by a vector inverter allows HAORI to modulate the heating or cooling power to the actual need with minimum consumption, thus obtaining up to the energy performance class A +++ and with considerable efficiencies: 8.7 (seasonal energy efficiency in cooling) and SCOP of 5.1 (seasonal energy efficiency in cooling).
Features
- Integrated WI-FI
- DC Hybrid Inverter (PAM + PWM)
- HADA Care Flow: intelligent airflow
- 3D motorized flaps
- Self-cleaning Magic Coil Exchanger
- Operating mode (cooling / heating) signaled by different colored LEDs
- Remote control functions: Quiet, Silent, Comfort Sleep button
- Fireplace function: to spread the heat in the environment in an optimal way
- Power limiter functions (100% - 75% - 50%)
- Compatible in multisplit combination (B-code version)
- Wide operating spectrum: down to –15 ° C / + 46 ° C in cooling; down to –15 ° C / + 24 ° C in heating
- Google Home and Amazon Alexa compatible
DIMENSIONS
Width: 987 mm - Height: 330 mm - Depth: 210 mm
Weight: 11 kg
ACCESSORIES SUPPLIED AS STANDARD
- Remote controller
WARRANTY
The warranty is the Official Toshiba Italia one and has a duration of 2 years.

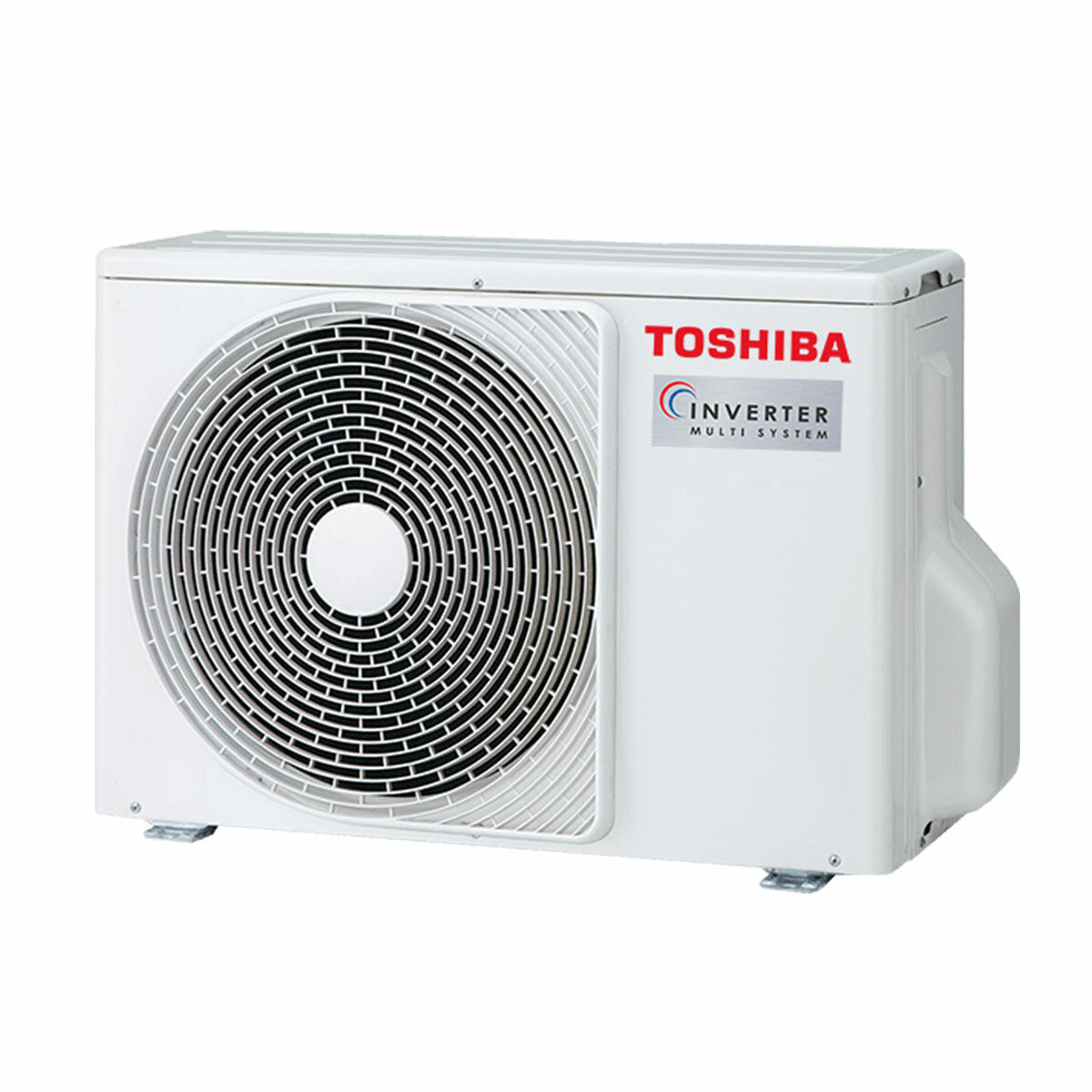

THE OUTDOOR UNIT
The Toshiba U2 series multi-split outdoor units are part of the NatuR32 family of the Japanese brand , particularly innovative and very environmentally friendly thanks to the use of low environmental impact R32 gas. In fact, R32 gas has a GWP - Global Warming Potential or Impact on Global Warming, equal to one third of that of its predecessor R410A.
The two-connection outdoor unit presented here has inverter and heat pump technology for both cooling and heating operation and represents the heart of the air conditioner.
The outdoor units for multisplit offer the great advantage of air conditioning several rooms using a single outdoor unit and one indoor unit for each room ; they are particularly recommended where there is little space available for the installation of several outdoor units or when you want to reduce the visual impact of this component of the air conditioner on the facade of the building unit to be air-conditioned.
This external unit allows you to connect and power two Toshiba internal units of any series, even of different powers; the indoor units will always operate independently and each will have its own control.
SAVINGS GUARANTEED
The Toshiba U2 multi-split outdoor unit always supplies a power truly proportionate to the number of indoor units in operation and always offers the possibility of installing the air conditioner suitable for the environment to be air-conditioned. This model offers high performance and great comfort in both cooling and heating. Thanks to the DC Hybrid Inverter system, the outdoor unit allows high energy savings and particular attention to the environment. It guarantees to always obtain the highest energy classes and minimizes waste . The efficient DC Rotary compressor allows further savings, as well as guaranteed well-being, thanks to the maintenance of a constant temperature without sudden changes . It also boasts unparalleled silence, in full respect of one's sleep and that of others, as it is also equipped with the Quiet mode which further lowers the unit's sound pressure level with a simple touch on the remote control. The innovative construction technology of the compressor allows simplified maintenance and makes it particularly robust, all to the advantage of durability over the years.
Particularly resistant to inclement weather and atmospheric agents, the U2 outdoor unit can be fixed both in a suspended position and placed on the floor thanks to the supports that can be purchased separately.
DIMENSIONS
Length: 800 mm - Height: 630 mm - Depth: 300 mm
Weight: 45.0kg.
WARRANTY
The warranty is the official Toshiba one and has a duration of 24 months.
Technical Specifications
Labels
Technical data
Characteristics kit
Cooling
Heating
External unit RAS-2M18U2AVG-E
Internal unit RAS-B10N4KVRG-E
Internal unit RAS-B13N4KVRG-E
Refund policy
You have 14 days to return your product(s) after receiving your order. The shipping cost is charged to the customer and, if everything is compliant, we will refund you. Please make sure that the products are not used or damaged.
You can always contact us for any return question at info@climamarket.it.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security

Estimate shipping
Refund Policy
Refund policy
You have 14 days to return your product(s) after receiving your order. The shipping cost is charged to the customer and, if everything is compliant, we will refund you. Please make sure that the products are not used or damaged.
You can always contact us for any return question at info@climamarket.it .
Energy label
Within a framework of European environmental policy aimed at protecting the climate and the environment, the European Union in recent years has launched a series of directives with the aim of reducing CO2 emissions in the European Union by 2020.
Some of these directives have had a strong impact on the way we consume, offering us greater awareness of how our choices can affect the environment around us.
An example are the two Directives Energy Related Products (ErP) and Energy Labeling (ELD), which aim on the one hand to reduce the energy consumption of products through eco-friendly design (ErP) on the other hand to make the label that shows mandatory the energy efficiency class for all appliances sold within the European Union (ELD).
These standards applied up to now to refrigerators, televisions and washing machines, have also been extended to space heaters such as air conditioners, boilers, heat pumps, etc. and appliances for the production of hot water such as DHW heat pumps, water heaters, hot water accumulators, etc.
The new label highlights not only the energy efficiency class but also other performances such as sound power, use, thermal power. In this way the final consumer will have more information to better orient themselves in the choice and purchase of these devices.
For environmental heating appliances such as air conditioners, the energy efficiency classes range from A ++ to G while for domestic hot water production appliances such as water heaters, they range from A to G.

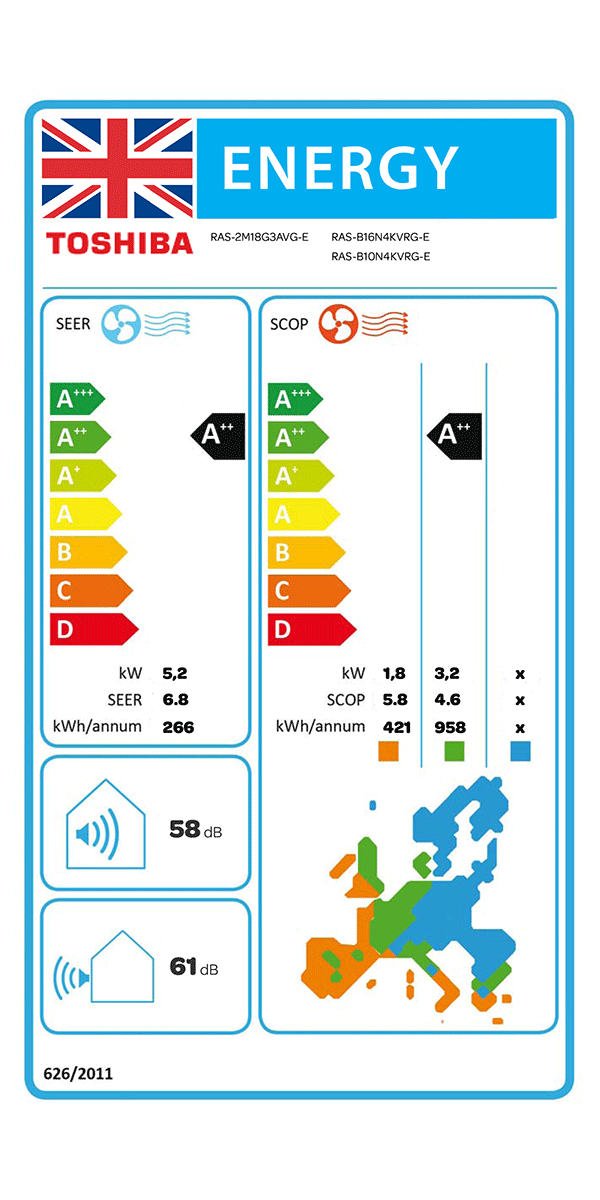

EXAMPLE OF AIR CONDITIONER ENERGY CLASS LABEL
