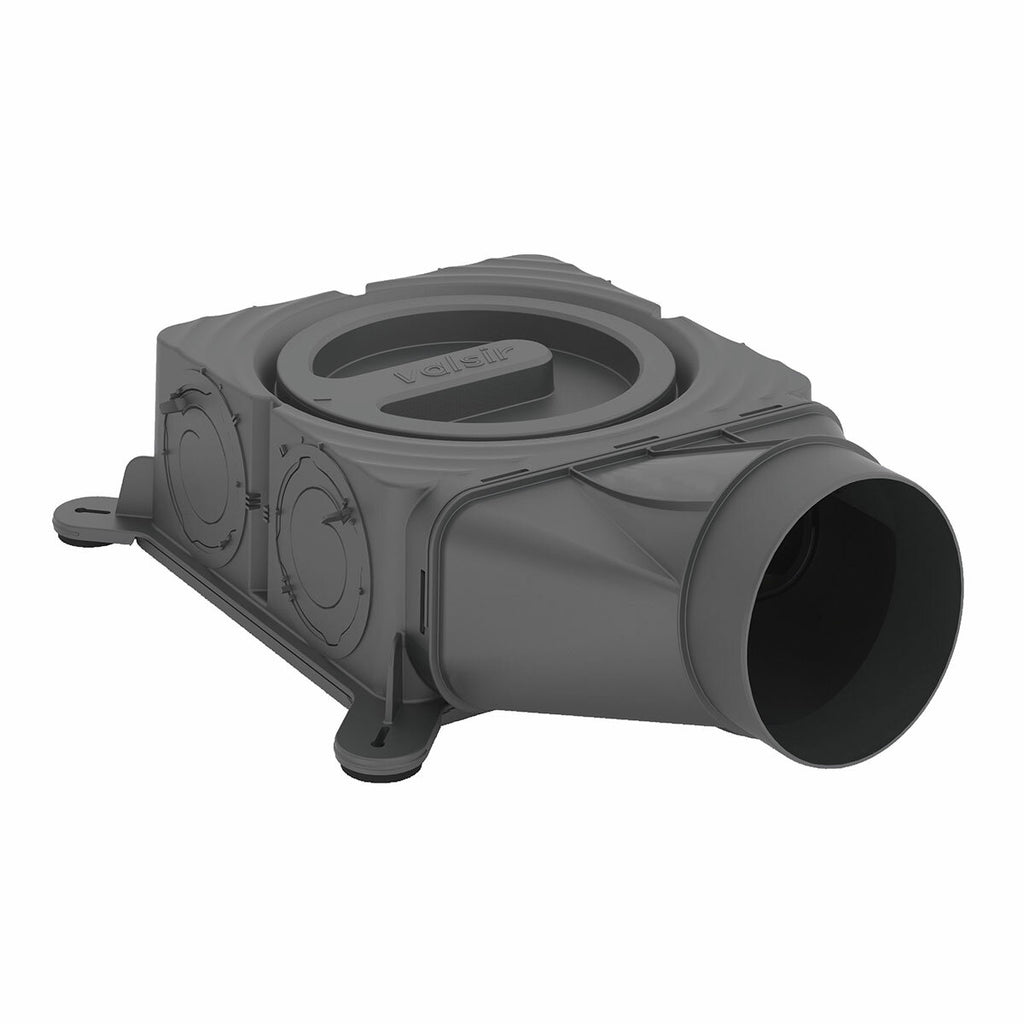

Valsir AriaSilent Box 6 Compact air distribution box for CMV systems

Save 39%
ValsirSKU: VS0435161 ID: 328B47

Price:
Sale price€107,81 Regular price€177,92
code
VS0435161
id
328B47
precodice
VAL
short description

Valsir AriaSilent Box 6 Compact air distribution box for CMV systems.

brand
Valsir
category
Accessories
type
Accessori VMC
series
AriaSilent
Download technical specifications

Description

Valsir AriaSilent Box 6 Compact air distribution box for CMV systems



AriaSilent is the innovative air distribution system designed by Valsir which allows for perfect air tightness, healthy and without dispersions, for the creation of highly performing and safe controlled mechanical ventilation systems.

Valsir AriaSilent Box 6 Compact as an essential component within a CMV system allows you to optimize air management in systems with or without dehumidification and thermal integration treatments. It is equipped with the innovative tear-off opening which allows the use of only the connections necessary for connecting the air distribution systems, using the AriaSilent link fittings, without closing caps and designed to guarantee optimal flow distribution. The 6 Compact box allows you to connect up to 6 corrugated pipes, with a maximum air flow rate of 250 m3/h; the limited thickness of only 11 cm makes this solution suitable for applications where the space available for installation is limited. It is made of polypropylene with an antibacterial master, a highly qualitative, resistant plastic material with a purifying effect.

The design of the Box 6 Compact and the other Valsir AriaSilent accessories makes it possible to apply it in all contexts, from newly built ones to renovations conditioned by the limited availability of space for new systems.

Valsir AriaSilent Box 6 Compact combined with the other AriaSilent components contributes to the formation of the AriaSilent controlled mechanical ventilation system (complete) as designed by Valsir.



Technical features

-Box body material: PP + antibacterial and antistatic master

- Internal baffle material (AriaSilent Box 18 and 18 Therm): EPS with graphite

- Sealing gaskets material: SBR / EPDM

- Product standard: UNI EN 17192:2019

- Transportable fluid: Air

- Body color of the box: Gray RAL 7011

- Storage temperature: Min -10° C Max +60° C

- Operating temperature: Min -5° C Max +60° C



Dimensions

- Width: 340 mm

- Depth: 470 mm

- Height: 150 mm

- Diameter: 125 mm



Warranty

The warranty is the official Valsir one and lasts 2 years.
