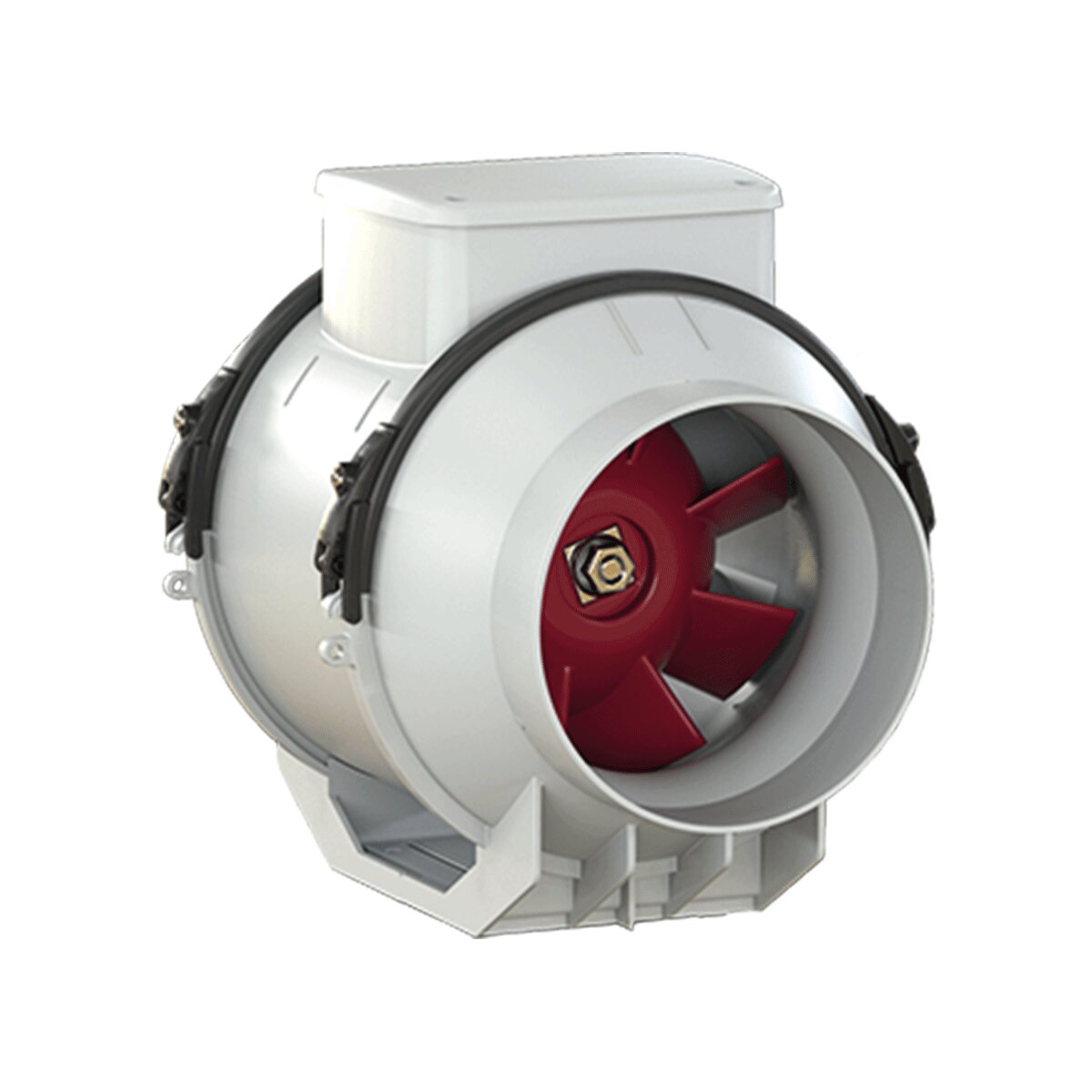

Vortice LINEO 125 centrifugal fan for duct Ø 125 mm
The Lineo 125 duct centrifugal fan is the product designed by Vortice to deal with the ventilation problems of the tertiary sector , in fact it is ideal for the exchange of heat air in offices, restaurants and commercial environments.
Made of fire-resistant plastic resin , class 2 insulation, it has an electrical box in the upper part which guarantees electrical and fire resistance. The components were designed with the aim of maximizing the simplicity and flexibility of installation but above all the performance: flow straighteners on the delivery side which, working in synergy with the upstream impeller, optimize the flow of treated air for excellent results, also reducing noise emissions ; internal divergent element that improves the performance of the impeller designed to reach ERP efficiency levels; protective shell that avoids energy losses due to vortices; rectifier and impeller designed to correct the air flow and avoid turbulence problems.
The Vortice Lineo 125 aspirator is equipped with an induction motor , thermally protected, with a shaft mounted on ball bearing supports, combined with a helical-centrifugal impeller ideal for satisfying the specific system needs related to performance, consumption and operating costs. With a nominal diameter of 125 mm, it has a high degree of IPX5 water resistance (if installed in a duct) and is adjustable in speed using an optional control (code 12966).
The outlet vent has been optimized for wall or ceiling installation by qualified and authorized technical personnel.
TECHNICAL FEATURES
- Max current absorbed at max speed. (A) 0.15
- Max current absorbed at min speed. (A) 0.11
- Nominal duct diameter (mm) 125
- Frequency (Hz) 50
- IP44 Protection Grade
- Max power absorbed at max speed. (W)33
- Max power absorbed at min speed. (W)25
- Voltage (V) 220-240
- Sound pressure Lp [dB (A)] 3m - max speed 43
- Sound pressure Lp [dB (A)] 3m - min speed 33.9
- Range:
- Max flow rate at max speed. (l/s) 101.4
- Max flow rate at max speed. (m³/h) 365
- Max flow rate at min speed. (l/s) 69.4
- Max flow rate at min speed. (m³/h) 250
DIMENSIONS
- Width 188.5 mm_Height 211 mm_Depth 258 mm
- Weight: 1.8kg
WARRANTY
The guarantee is the official Vortice one and lasts 2 years .
