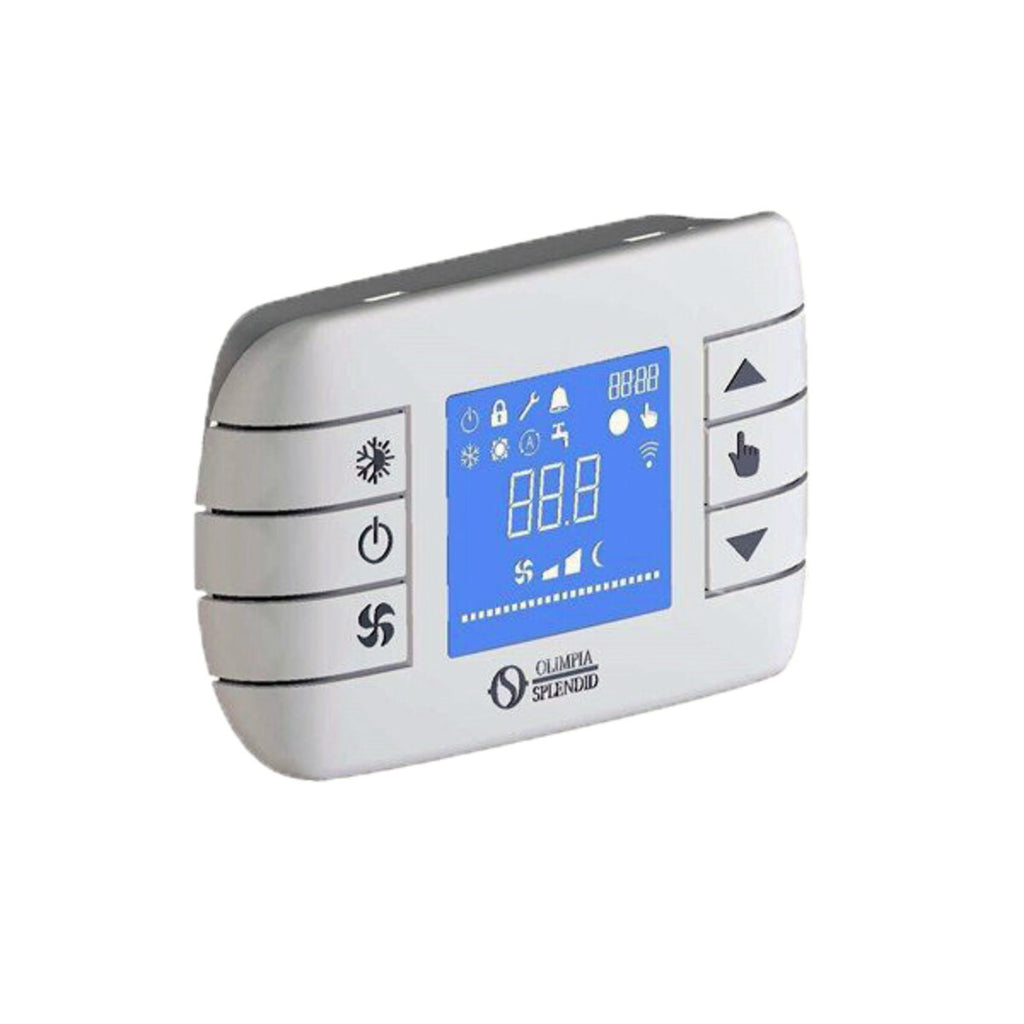

This Olimpia Splendid wall mounted remote control kit is an electronic chronothermostat with a backlit LCD screen. It is a modern terminal that can be used to manage all the fan coils and fan radiators of the Bi2 range from the same manufacturer. Interfaceable with the most modern home automation systems via the MODBUS RS485 signal protocol, it allows simultaneous control of up to 30 units. The kit contains a probe for detecting the ambient temperature (also in Standby mode) and is equipped with a 230/12 V AC double insulation transformer for the power supply and a buffer battery which is activated in the event of black-out.
The controls are very intuitive; all the information on the operating and programming status can be viewed from the LCD display. On the sides of the display there are instead 6 function keys which allow you to set the use mode (Manual or Chronothermostat), the operating mode (Cooling, Heating, Automatic - only in Chronothermostat mode - or Standby), the fan speed (Minimum , Maximum, Automatic - only in Chronothermostat mode - or Night) and the desired room temperature.
In Chronothermostat mode, operation, fan speed and desired temperature are set hour by hour, for each day of the week, and are automatically sent to the connected fan coils. This function is very useful for having a comfortable temperature at any time of the day, so as to maximize regulation and reduce consumption.
To connect this kit, each fan coil must be equipped with a compatible control or a remote control kit (depending on the fan coil model). For fan coils with TR control, the connection is direct and no additional module is required.
Wall installation with hole spacing compatible with a standard 503 flush-mounting box.
WARRANTY
The warranty is the Official Olimpia Splendid one and has a duration of 24 months.
