Wall mounted Valsir Tropea S mechanical cistern

Save 51%
ValsirSKU: VS0858002 ID: 395CFF

Price:
Sale price€111,25 Regular price€226,67
code
VS0858002
id
395CFF
precodice
VAL
short description

Valsir Tropea S wall-mounted mechanical built-in toilet cistern, for built-in installation on masonry walls.

brand
Valsir
category
Toilet cisterns
type
series
Tropea S
installation mode
Built-in
Download technical specifications

Description

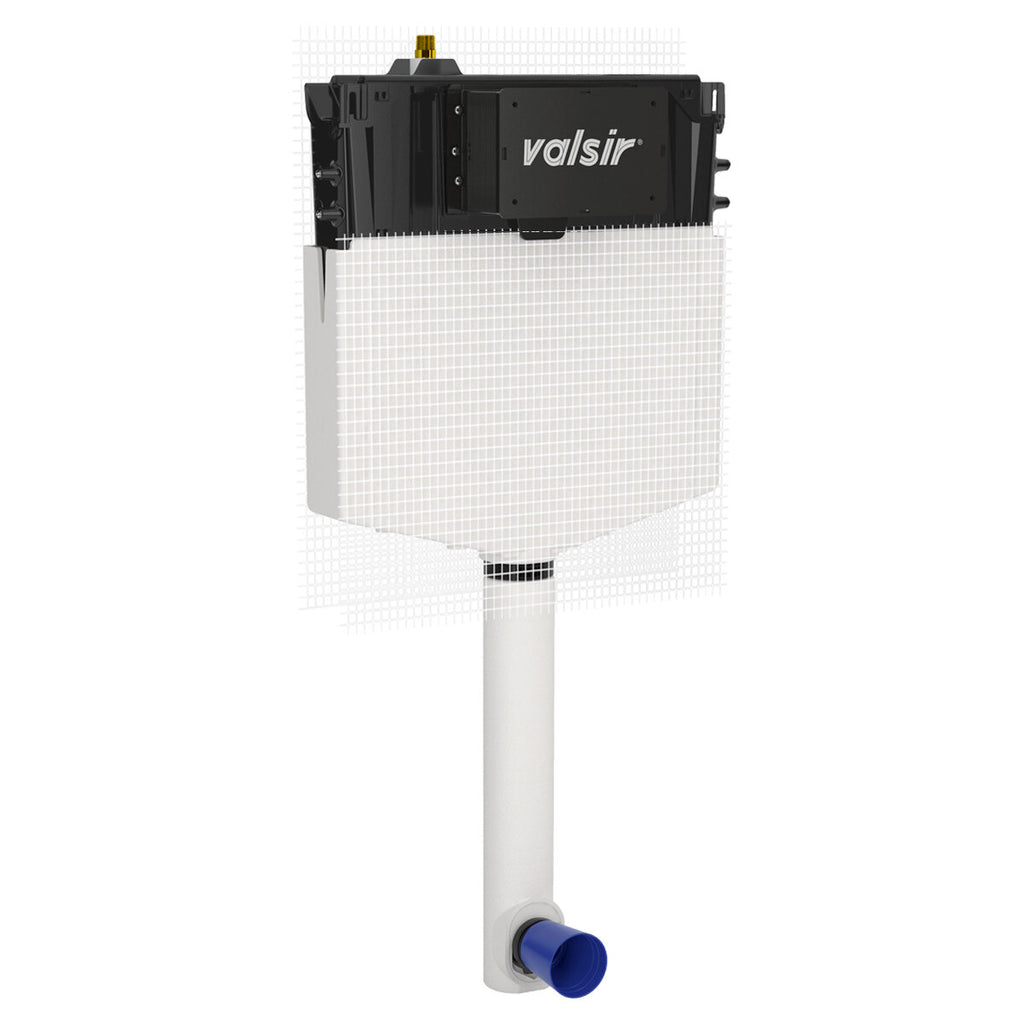

Wall mounted Valsir Tropea S mechanical cistern

Tropea S is the famous series of cisterns for toilets by Valsir , a company that has been designing and manufacturing state-of-the-art thermo-hydraulic components for more than 35 years and of recognized quality in the sector. The vast range of structures and accessories available make the Tropea S line the most suitable solution for every need because it is able to guarantee great versatility in the installation phase.

In particular, the Tropea S murare mechanical built-in cistern is designed to be installed in low-thickness brick or wooden walls with a WC pan positioned on the ground. Innovative and avant-garde, the cistern is recessed into the masonry.

Thanks to the flush pipe, it is possible to adjust the position of the cistern by a good 20 mm both upwards and downwards, so as to be able to correct any height errors after having already completed the paving.

The Tropea S wall box offers greater comfort , thanks to the choice of container material which ensures a high absorption of acoustic vibrations. The internal components of Tropea S have been certified, according to ISO EN 3822, in class I of silence both at 3 and at 5 bar, at the prestigious Fraunhofer Institute in Stuttgart.

The actuation can be either mechanical, pneumatic, electronic, electronic and mechanical, or mechanical and pneumatic at the same time. The rubber components comply with EN 681/WC, guaranteeing unparalleled quality and resistance to chemical agents. With Tropea S the adjustment of the discharge is very simple and can be set at 6/3, 4.5/3 or 4/2 liters in full compliance with the protection of environmental resources and the principles of Green Building.

The drain valve, patented by Valsir , guarantees cleaning of any type of pan, even rimless . In addition, the materials of the drain valve and float prevent scale build-up.

Everything needed for installation is included in the package. The Tropea S cistern is supplied 100% pre-assembled so as to speed up and simplify installation on site. The revolving inlet connection also facilitates the installation phase of the box.

Technical features:

- Recessed installation in the wall

- Mounting accessories supplied

- 100% pre-assembled cassette for quick and easy installation

- Compatible with any type of vase

- Very simple flush adjustment that can be set at 6/3, 4.5/3 or 4/2 litres

Measures:

- Thickness: 90mm

- Height: min: 680 mm - max: 860 mm

- Width: 550mm

WARRANTY

The guarantee is the official Valsir one and has a duration of 2 years .
