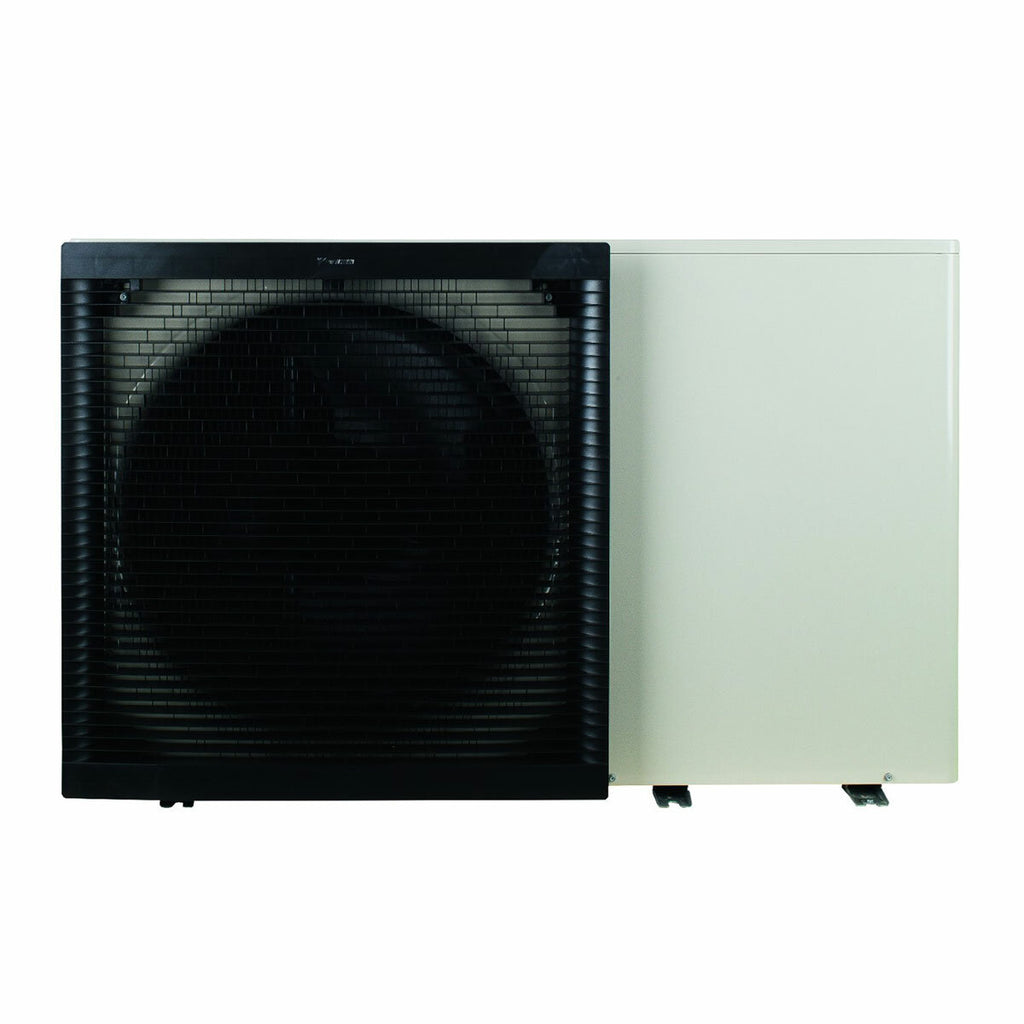

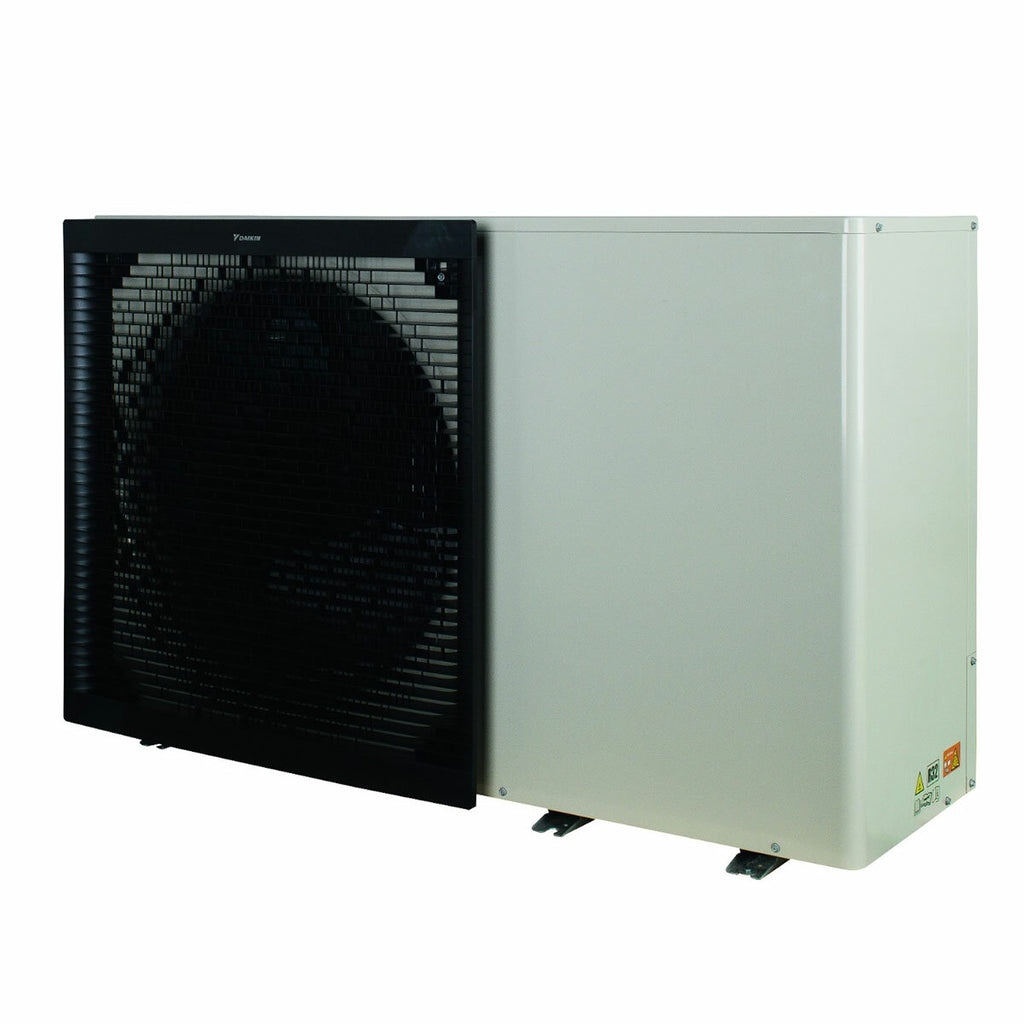

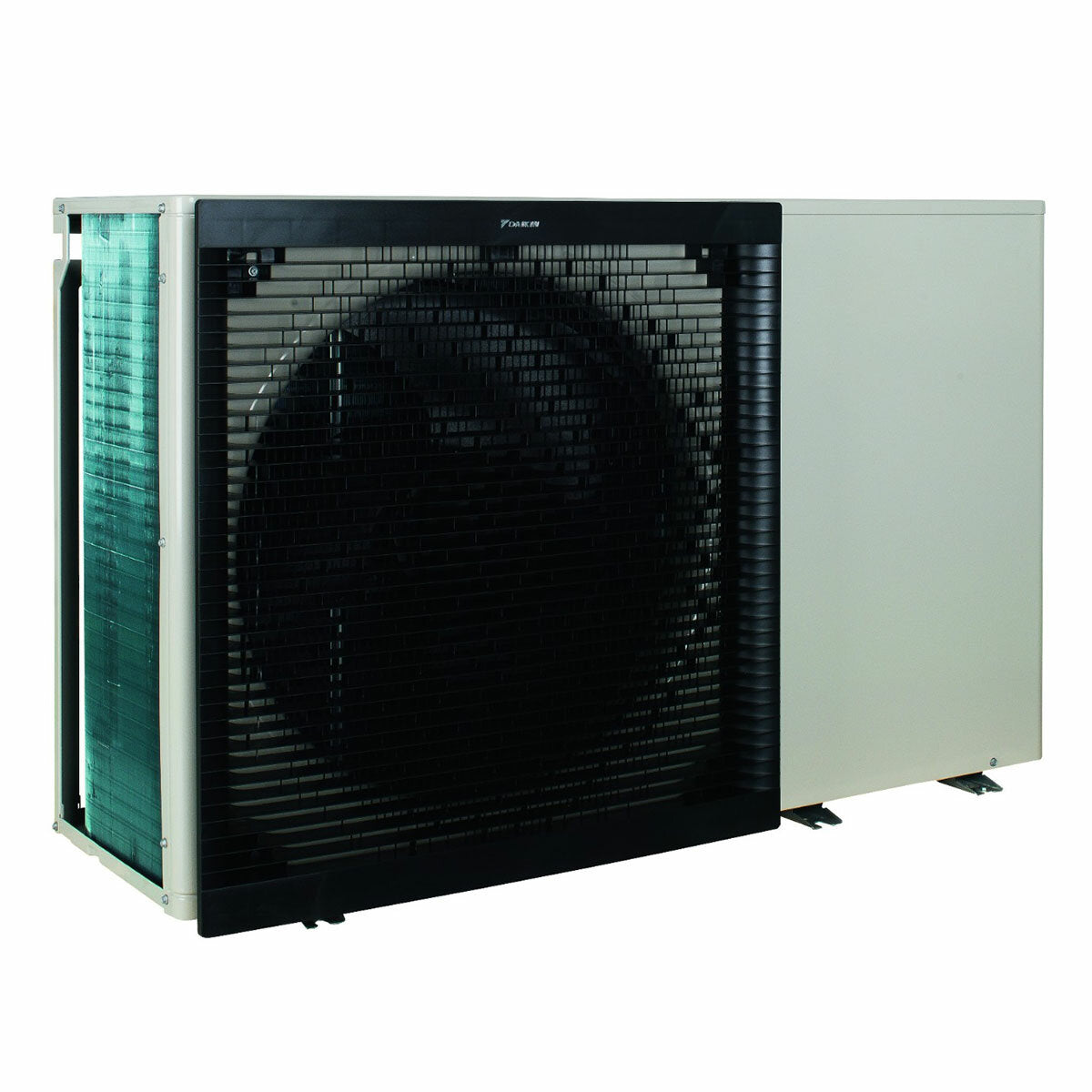

Daikin EWYA-DW1P: THE COMPACT GENERATION OF DAIKIN HEAT PUMPS
12 kW - Ideal for units of approximately 120 m2 with an average calculated height of 2.7 MT
The enormous experience in the field of air conditioning has allowed Daikin to create a one-of-a-kind heat pump that contains all the potential of modern technologies in a more compact and much less bulky product, thanks to the conversion of the classic double ventilation into a single one and without neglecting aesthetics and design.
GUARANTEED SAVINGS AND HIGH COMFORT
Daikin EWYA-DW1P heat pumps guarantee excellent energy efficiency , are extremely silent during operation and meet the most rigorous requirements in terms of operating temperatures. The units integrate the most recent technological innovations: the use of rR-32 gas reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to the high energy efficiency in class A++ . Furthermore, they are specially designed to ensure ease of installation and maintenance.
They are already equipped with an integrated hydraulic kit: expansion vessel, water pressure sensor, plate exchanger, electronic cards, standard pump driven by inverter, main flow sensor and switch included which give absolute reliability , reduced energy consumption and minimal vibrations which translate into extremely silent operation.
They also include Swing compressors, equipped with a unified cylinder and deflector with fewer moving parts which reduce vibrations and friction, ensuring greater reliability and efficiency compared to normal rotary compressors. Inverter -driven compressors regulate the speed of the compressor, adapting its operation to actual needs. This allows you to limit stops and starts, reducing energy consumption (up to 30%) while maintaining more stable temperatures.
LARGE MODULARITY OF INSTALLATION AND USE
Daikin EWYA-DW1P heat pump systems guarantee high performance in a wide temperature range down to -25° C. They are equipped with an outlet to connect and integrate the unit to existing heat sources to offer greater savings and optimal comfort in all weather conditions. The units are compact and take up little space ; they can be transported even through narrow passages and take up very little space in the installation site, easy to achieve thanks to the "plug and play" mode and the controller included in the packaging . Thanks to this device it is possible to upload starting parameters via USB, change parameters remotely, monitor and view error codes via the high resolution color display.
The Hydronic Module allows connection directly to the system; The heat pumps of the EWYA-DV1P series are not suitable for heating domestic water even when combined with an accumulator.
Thanks to the cutting-edge MM-2 controller, included in the package, it is possible to upload the starting parameters via USB; change parameters remotely; monitor operation through error codes. Furthermore, it features a high-resolution color display and is based on Atherma 3MM.
TECHNICAL DATA
-Cooling capacity: 12.80 kW
-Heating capacity: kW 12
-SEER: 5.71
-EER: 3.16
-COP: 4.87
-SCOP and Energy Class: 3.42 - A++
DIMENSIONS
Length: mm. 1380 - Depth: mm. 460 - Height mm. 870
SAVE ON PURCHASE AND INSTALLATION
The savings start right from the moment of purchase and installation.
The EWYA-DW1P range meets the technical requirements and can take advantage of the 50% and 65% tax deduction and the Thermal Account 2.0
WARRANTY
The warranty is the official Daikin Italia one and lasts 24 months.
Download the declaration relating to the systems that satisfy the legal requirements referred to in the interministerial decree of 6 August 2020 ("Technical Requirements Decree") in implementation of the art. 14, paragraph 3-ter, of Legislative Decree no. 63 of 2013, which defines the technical requirements that must be met by interventions that give the right to the deduction of expenses incurred for energy efficiency interventions on the existing building stock, due pursuant to the aforementioned article, as well as the interventions that give the right to the deduction referred to in paragraphs 1 and 2 of the art. 119 of the legislative decree of 19 May 2020, n. 34 (“Relaunch Decree”), converted, with amendments, by law 17 July 2020, n. 77.
