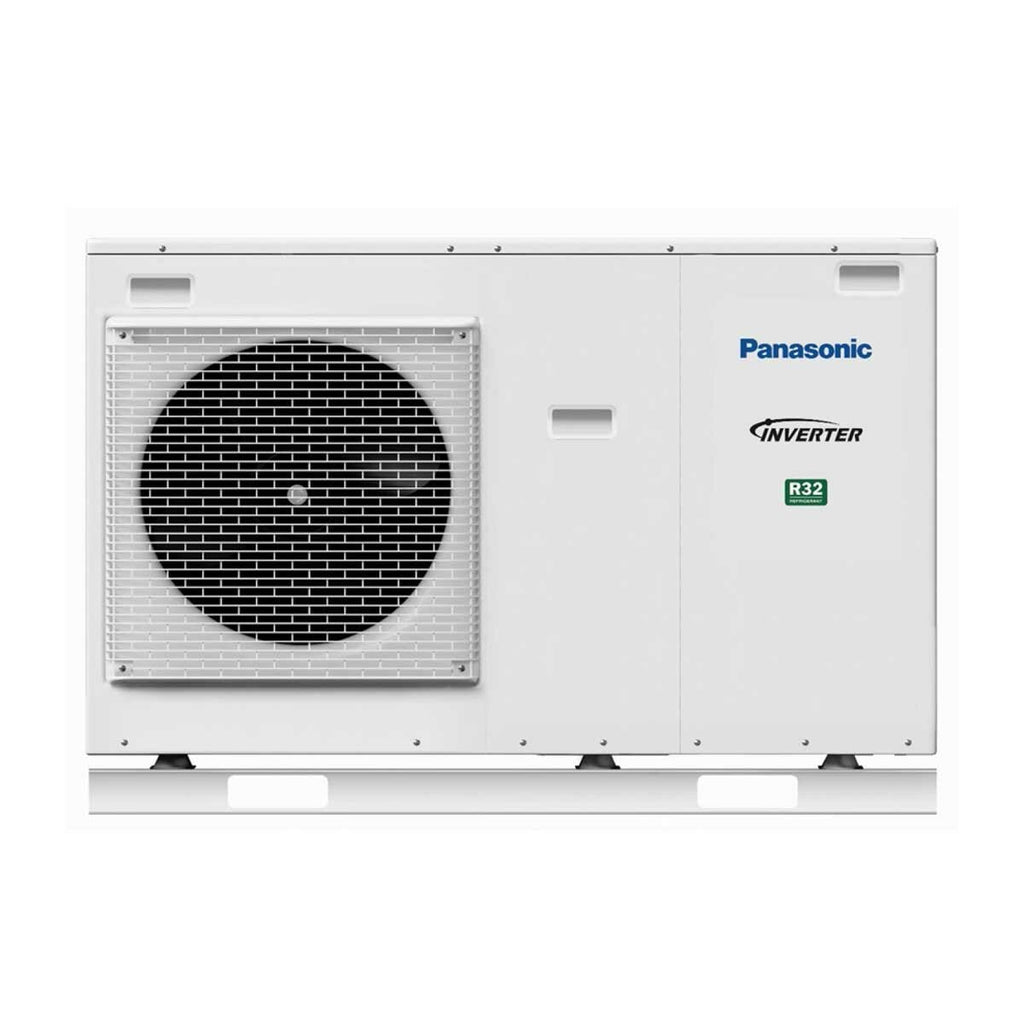

Panasonic Aquarea air-water heat pump 5 kW R32 A+++

Panasonic Aquarea 5 kW monobloc single-phase air-water heat pump R32 A+++

Ideal for units of approximately 50 m2 with an average height of 2.7 m.

The new Aquarea air-to-water heat pumps from Panasonic represent a cutting-edge option for those looking for superior performance and maximum thermal and hydraulic comfort. With a range from 3 kW to 16 kW, these heat pumps offer one of the widest selections on the market, ensuring tailor-made solutions for a wide range of properties, regardless of their size and heating and cooling needs.

Designed to ensure maximum performance, the Aquarea heat pump is capable of heating, cooling and producing domestic hot water (if combined with a heat pump storage tank)   maintaining maximum energy efficiency A+++ (water 35°C) and A++ (water 55°C).

The Panasonic Aquarea heat pump is a monobloc type: a single space-saving component that guarantees simple and quick installation, allowing the hydraulic pipes to be directly connected to the system where possible, thus facilitating the installer's work. The ease of installation and maintenance of Aquarea heat pumps is also guaranteed by the presence of integrated water filters and magnet flow meters, as well as the automatic air purge valve. These features minimize the time and effort required to install and maintain the system, ensuring reliable and long-lasting operation.

Guaranteed savings and high comfort

Thanks to new generation technology, the Panasonic Aquarea heat pump makes the best use of external air as a source of renewable energy to heat and cool internal environments and produce DHW. Energy efficiency is very high, allowing costs and consumption to be reduced to a minimum and reaching energy class A+++ in heating.

The A+++ energy class guarantees optimal use of energy, especially in average climates with temperatures up to 35°C at the water outlet, thus allowing significant savings on energy costs.

Thanks to the maximum output temperature of the hydraulic module of 60°C, Aquarea heat pumps are able to provide hot water for a wide range of domestic uses, ensuring comfort and convenience for users. These heat pumps also offer high heating and cooling capacities, even at low external temperatures, ensuring constant comfort in any climate condition.

The reduction of the environmental impact is guaranteed above all by the use of R32 refrigerant gas, the most environmentally friendly on the market with a Global Warming Potential (GPW) 70% lower than R-410A, which also allows for better performance and heat exchange .

Aquarea heat pumps are ideal for both new construction and renovation projects, offering solutions that adapt perfectly to the specific needs of each environment. Thanks to their versatility, these heat pumps are able to guarantee optimal comfort in every season of the year, helping to reduce energy costs and environmental impact.

The Aquarea heat pump is equipped with integrated control and special software for low-consumption homes. With a minimum outlet temperature of 20°C, it allows intelligent and efficient energy management, adapting the performance of the heat pump to the specific needs of the home environment. Furthermore, operation in extreme conditions, with temperatures down to -20°C and the cooling mode up to 10°C, ensures optimal comfort in any season of the year.

Great modularity of installation and use

Aquarea solutions not only offer superior performance, but are also cost-effective and have a minimized environmental impact. Thanks to advanced technology and energy efficiency, these heat pumps allow you to save on long-term operating costs, while ensuring maximum respect for the environment.

Aquarea heat pumps can be combined with underfloor systems and fan coils and can replace traditional boilers for maximum efficiency and energy savings.

Thanks to their truly compact dimensions , Panasonic heat pumps allow for easy installation and compact dimensions.

Even if the heat pump is equipped with a hydronic module, it is advisable to integrate it with a heat pump storage tank for the creation of systems for the production of domestic hot water.

In summary, the new Aquarea air-to-water heat pumps from Panasonic represent the ideal choice for those who want a reliable, efficient and ecological heating and cooling system. With their versatile range and exceptional performance, these heat pumps are the perfect solution to ensure maximum comfort in any environment.

DIMENSIONS

Length: 1283 mm - Height: 865 mm - Depth: 320 mm

Weight: 99 kg.

ACCESSORIES SUPPLIED AS STANDARD

- User interface

- compressor (rotary inverter DC 2-pistons)

- electronic expansion valve

- evaporator / condenser

- liquid receiver

- 4-way valve and related control and safety devices.

WARRANTY

The warranty is the official Pansonic one and lasts 24 months.
